Small Fragment Plating System

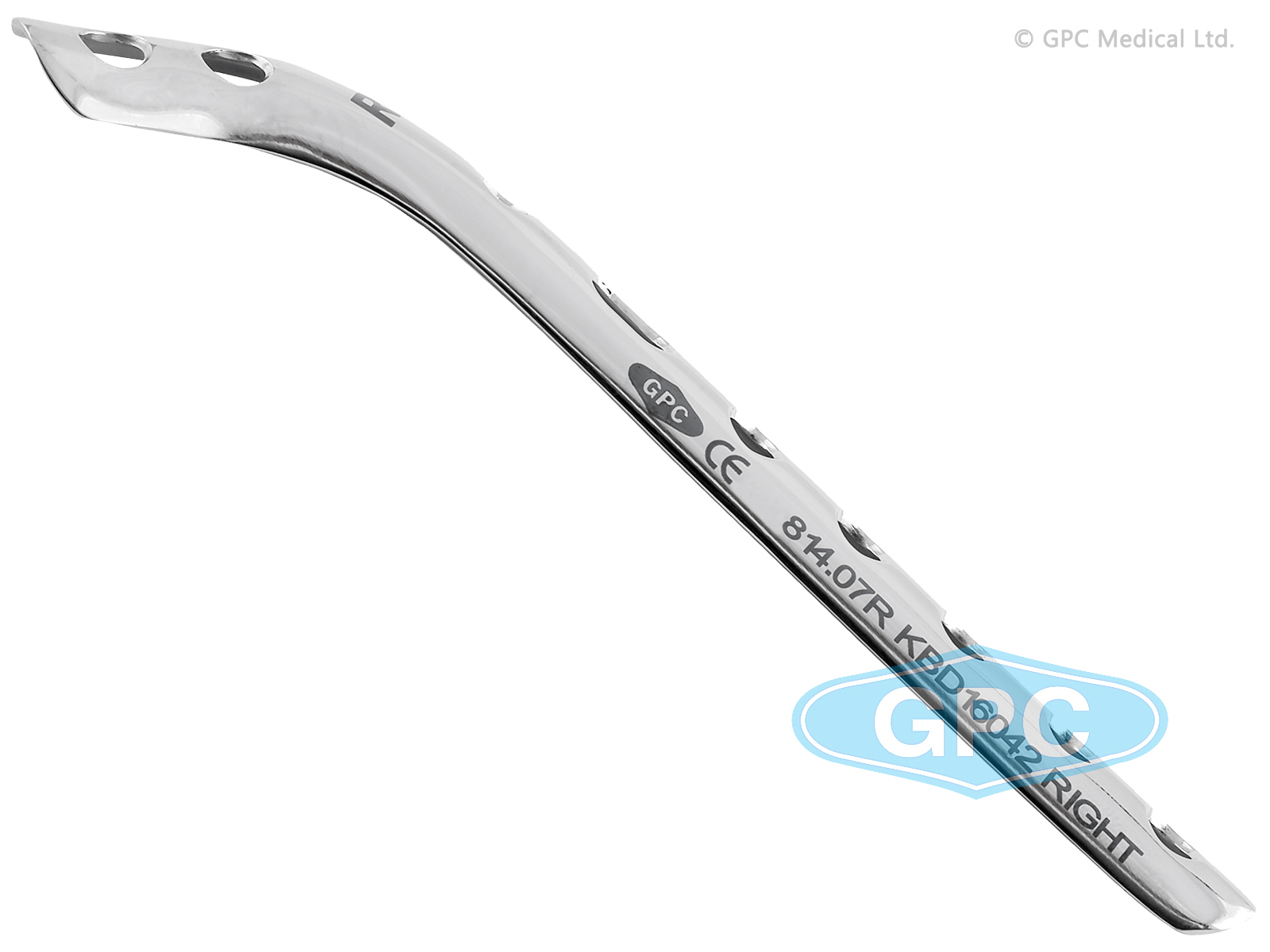

Lecestre Plate

Indications:

Comminuted fractures of distal humerus
Supracondylar fractures of distal humerus
Fixation of malunions and nonunions of distal humerus

Specifications

Features

Anatomically pre-contoured to fit medial and lateral epicondyle of distal humerus
Pre-formed shape makes it side specific i.e. separate for left and right arm
Low profile plate
Oblong hole for optimal plate placement
Fixed with 3.5 mm cortex screws and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile:

Thickness (T): 1.3 mm
Width (W): 12.5 mm
Hole Spacing (HS): 16 mm

No. of Holes	CODE - Left		CODE - Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
5	814.05L	814.05TL	814.05R	814.05TR
6	814.06L	814.06TL	814.06R	814.06TR
7	814.07L	814.07TL	814.07R	814.07TR
8	814.08L	814.08TL	814.08R	814.08TR
9	814.09L	814.09TL	814.09R	814.09TR
10	814.10L	814.10TL	814.10R	814.10TR
11	814.11L	814.11TL	814.11R	814.11TR
12	814.12L	814.12TL	814.12R	814.12TR
13	814.13L	814.13TL	814.13R	814.13TR
