Features
- Buttress plate allows good fit on the medial aspect of distal tibia
- Thin and can easily be cut
- The plate has a frontal wing which allows fixation to the medial malleolus
- Oblong hole allows for temporary fixation of the plate prior to final adjustment and fixation
- Head holes suitable for 4.0 mm cancellous screws
- Shaft compression screws suitable for 3.5 mm cortex screws
- Available in both Titanium and Stainless Steel
Profile
- Thickness (T): 2 mm
- Width (W): 15.2 mm
- Hole Spacing (HS): 16 mm
Cloverleaf Plate
|
No. of Holes |
CODE
|
|
S.S.
|
Titanium
|
|
3 |
608.03 |
608.03T |
|
4 |
608.04 |
608.04T |
|
5 |
608.05 |
608.05T |
|
6 |
608.06 |
608.06T |
|
7 |
608.07 |
608.07T |
|
8 |
608.08 |
608.08T |
|
9 |
608.09 |
608.09T |
|
10 |
608.10 |
608.10T |
|
11 |
608.11
|
608.11T |
|
12 |
608.12 |
608.12T |
|
13 |
608.13 |
608.13T |
|
14 |
608.14
|
608.14T |

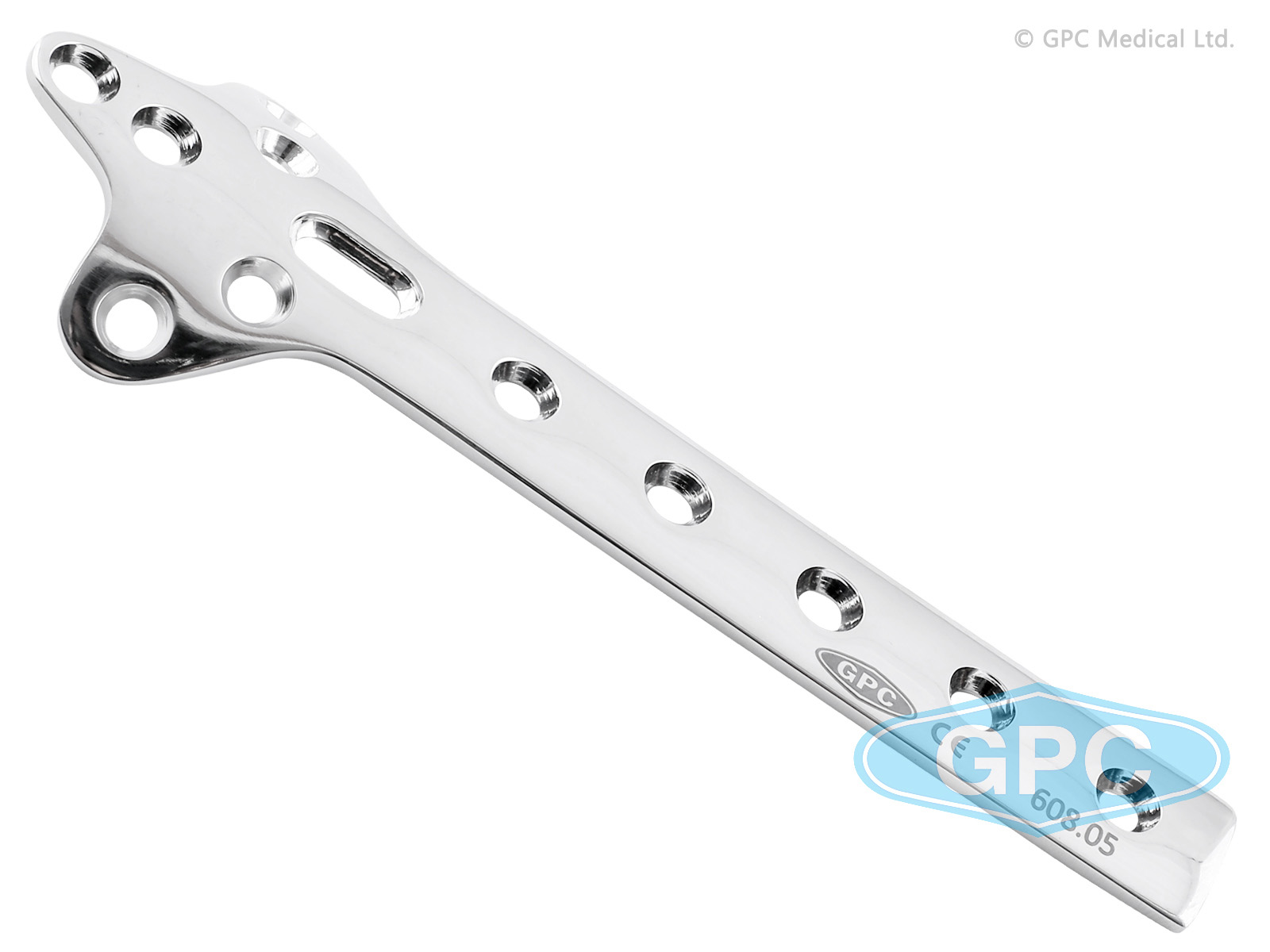

Cloverleaf Plate for distal intra-articular tibial fractures.
Stainless Steel Plates : Head for 4.0mm cancellous screws, shaft for 3.5mm cortex screws.
Titanium Plates : Head for 4.0mm cancellous screws, shaft for 3.5mm cortex screws.
