Features
- Useful in areas with minimal soft tissue covering
- Low profile construct
- Oval holes allow eccentric screw placement to produce fracture compression
- Can be contoured to match the anatomy of the bone
- Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
- Available in both Titanium and Stainless Steel
Profile
- Thickness (T): 1 mm
- Width (W): 9 mm
- Hole Spacing (HS): 12 mm
- Center Hole Spacing (CHS): 16 mm
Â
| No. of
Holes |
CODE |
| S.S. |
Titanium |
| 2 |
639.02 |
639.02T |
| 3 |
639.03 |
639.03T |
| 4 |
639.04 |
639.04T |
| 5 |
639.05 |
639.05T |
| 6 |
639.06 |
639.06T |
| 7 |
639.07 |
639.07T |
| 8 |
639.08 |
639.08T |
| 9 |
639.09 |
639.09T |
| 10 |
639.10 |
639.10T |
| 11 |
639.11 |
639.11T |
| 12 |
639.12 |
639.12T |
| 14 |
639.14 |
639.14T |

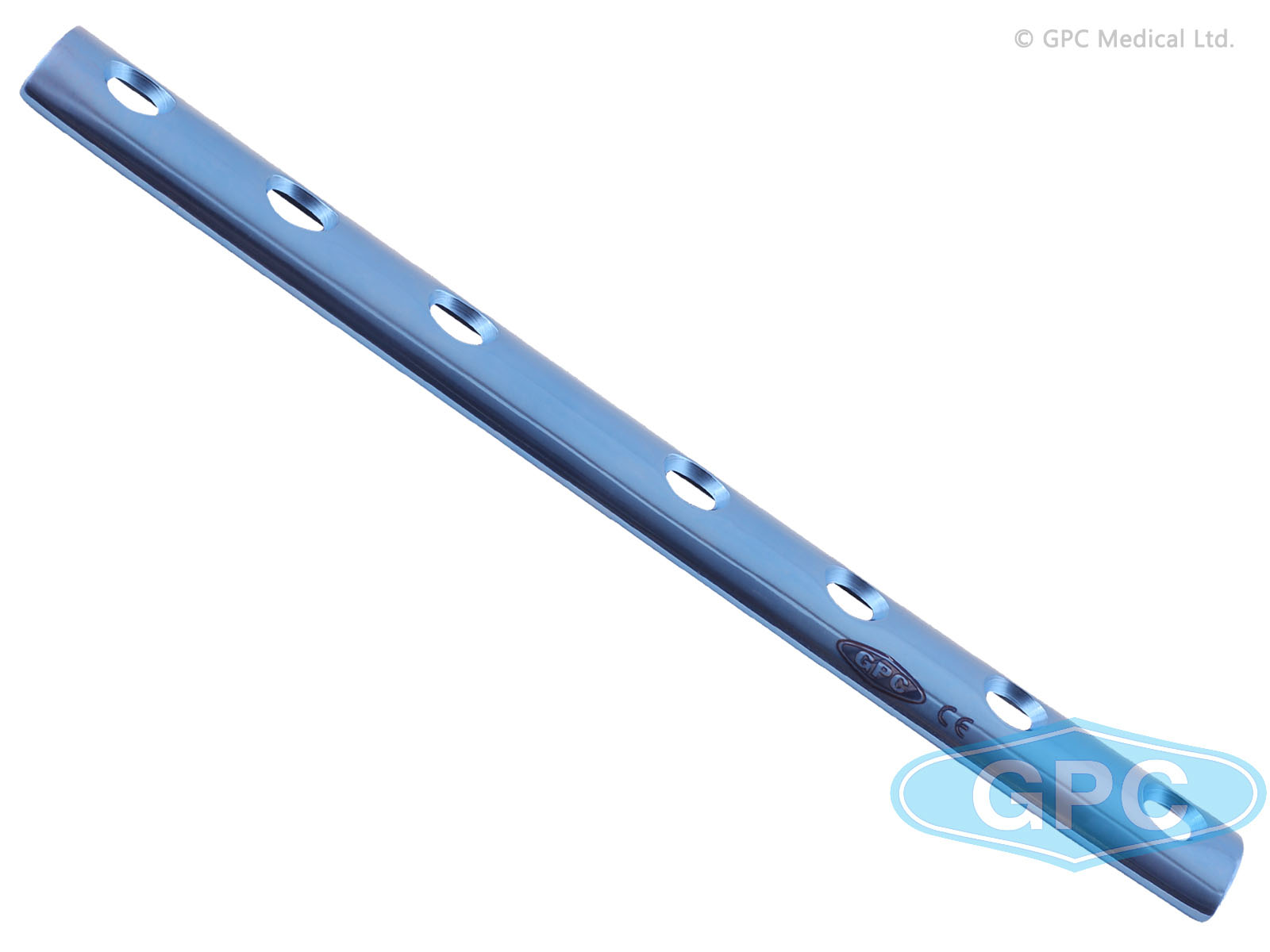

Used as buttress plate for fibula, metatarsal and metarcarplas. Fixation with 3.5 & 4mm Screw. Compression effect can be achieved by eccentric insertion of remote screw. (One third tube 14mm dia.)
