Small Fragment Plating System

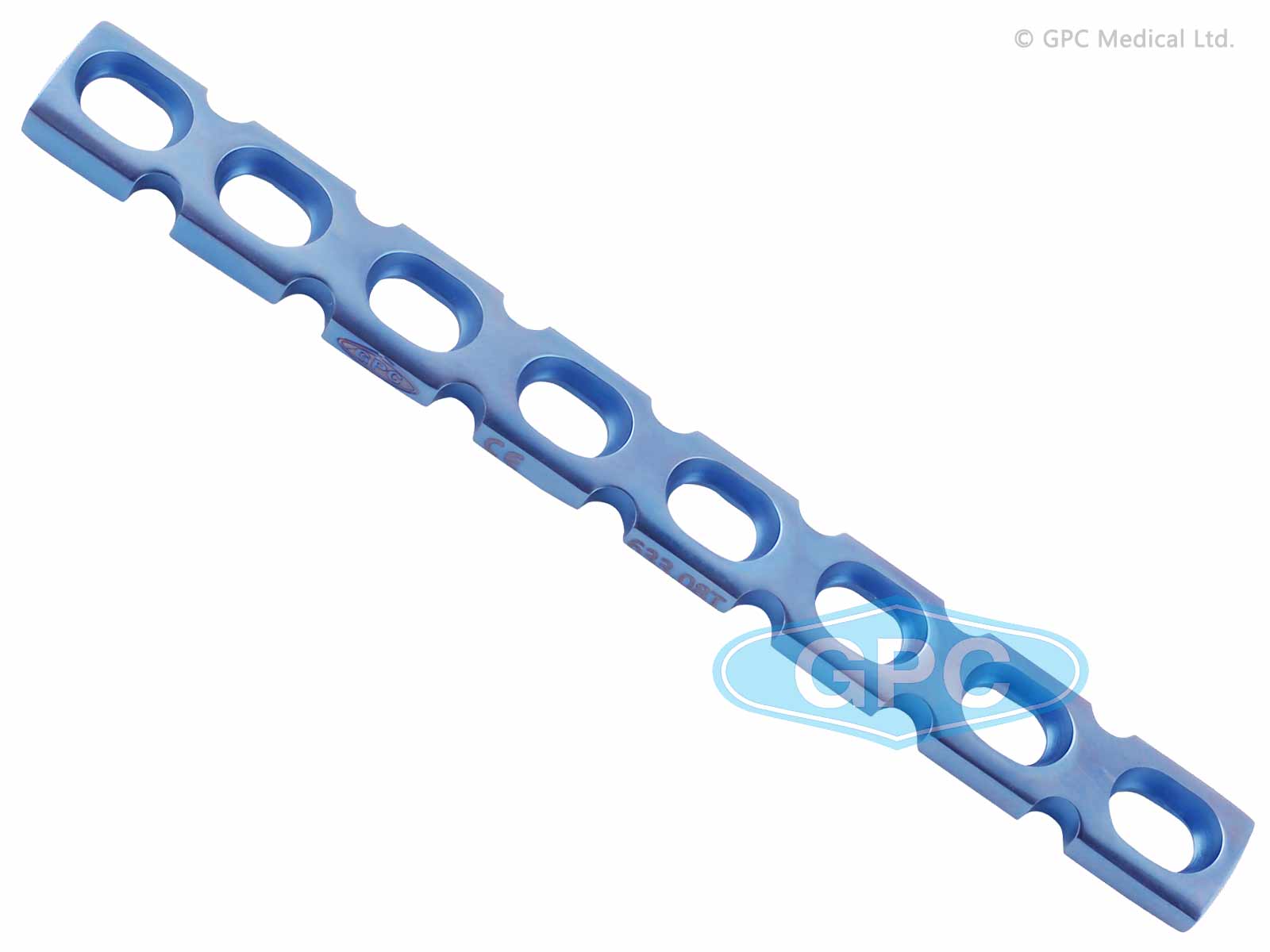

Reconstruction Plate 3.5mm Screws

Indications:

Fractures of bones with complex 3D geometry
Pelvis and acetabulum fractures
Distal tibia fractures
Distal humerus fracture
Medial Malleolus fracture
Clavicular fractures

Specifications
Product Video

Features

Deep notches allow accurate contouring of the plate in all planes
Oval holes allow dynamic compression of fracture fragments
Special instruments are available for contouring these plates
Can be contoured for fixation of various bones
Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 2.8 mm
Width (W): 10 mm
Hole Spacing (HS): 12 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	633.05	633.05T
6	633.06	633.06T
7	633.07	633.07T
8	633.08	633.08T
9	633.09	633.09T
10	633.10	633.10T
11	633.11	633.11T
12	633.12	633.12T
13	633.13	633.13T
14	633.14	633.14T
15	633.15	633.15T
16	633.16	633.16T
17	633.17	633.17T
18	633.18	633.18T
19	633.19	633.19T
20	633.20	633.20T
21	633.21	633.21T
22	633.22	633.22T
