Small Fragment Plating System

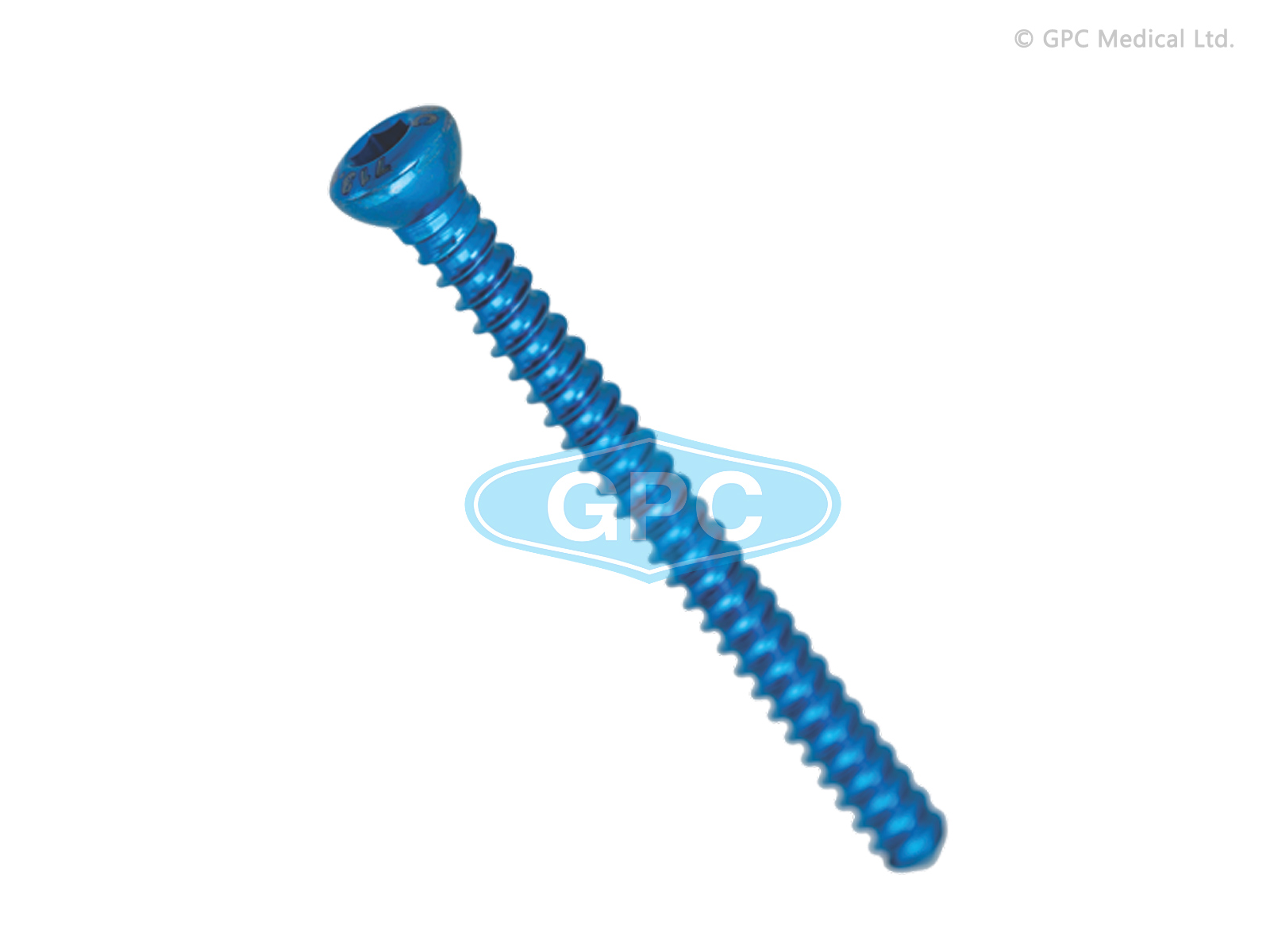

Cortex Screw 3.5mm

Specifications
Product Video

Thread dia.	3.5 mm
Head dia.	6.0 mm
Core dia.	2.4 mm
Lengths	10 - 110 mm
Drill bit used	2.5 mm

Codes		Length (mm)		Codes		Length (mm)
S.S.	Titanium	Length (mm)		S.S.	Titanium	Length (mm)
713.10	713.10T	10mm		713.58	713.58T	58mm
713.12	713.12T	12mm		713.60	713.60T	60mm
713.14	713.14T	14mm		713.62	713.62T	62mm
713.16	713.16T	16mm		713.64	713.64T	64mm
713.18	713.18T	18mm		713.66	713.66T	66mm
713.20	713.20T	20mm		713.68	713.68T	68mm
713.22	713.22T	22mm		713.70	713.70T	70mm
713.24	713.24T	24mm		713.72	713.72T	72mm
713.26	713.26T	26mm		713.74	713.74T	74mm
713.28	713.28T	28mm		713.76	713.76T	76mm
713.30	713.30T	30mm		713.78	713.78T	78mm
713.32	713.32T	32mm		713.80	713.80T	80mm
713.34	713.34T	34mm		713.82	713.82T	82mm
713.36	713.36T	36mm		713.84	713.84T	84mm
713.38	713.38T	38mm		713.86	713.86T	86mm
713.40	713.40T	40mm		713.88	713.88T	88mm
713.42	713.42T	42mm		713.90	713.90T	90mm
713.44	713.44T	44mm		713.92	713.92T	92mm
713.46	713.46T	46mm		713.94	713.94T	94mm
713.48	713.48T	48mm		713.96	713.96T	96mm
713.50	713.50T	50mm		713.98	713.98T	98mm
713.52	713.52T	52mm		713.100	713.100T	100mm
713.54	713.54T	54mm		713.105	713.105T	105mm
713.56	713.56T	56mm		713.110	713.110T	110mm
