Small Fragment Plating System

Y-Reconstruction Plate

Indications:

Supracondylar and intercondylar fractures of humerus
Non union distal humerus fractures
Comminuted distal humerus fractures

Specifications

Features

Low profile plate
Y shaped design allows accurate placement on both supracondylar pillars of humerus
Notches in the plate allow contouring according to the anatomy of the bone
Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

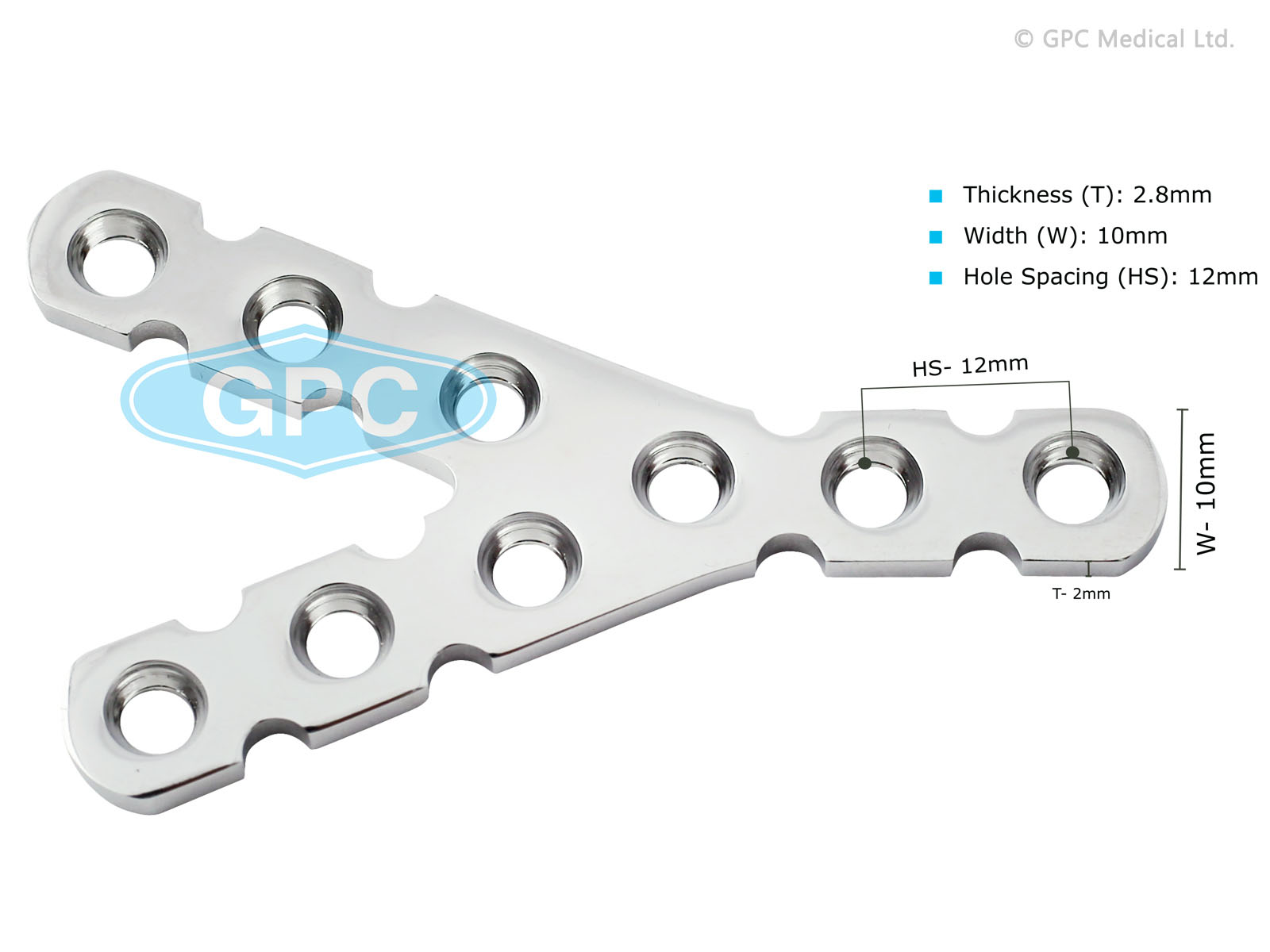

Profile

Thickness (T): 2 mm
Width (W): 10 mm
Hole Spacing (HS): 12 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
6	636.06	636.06T
9	636.09	636.09T
12	636.12	636.12T
