Small Fragment Plating System

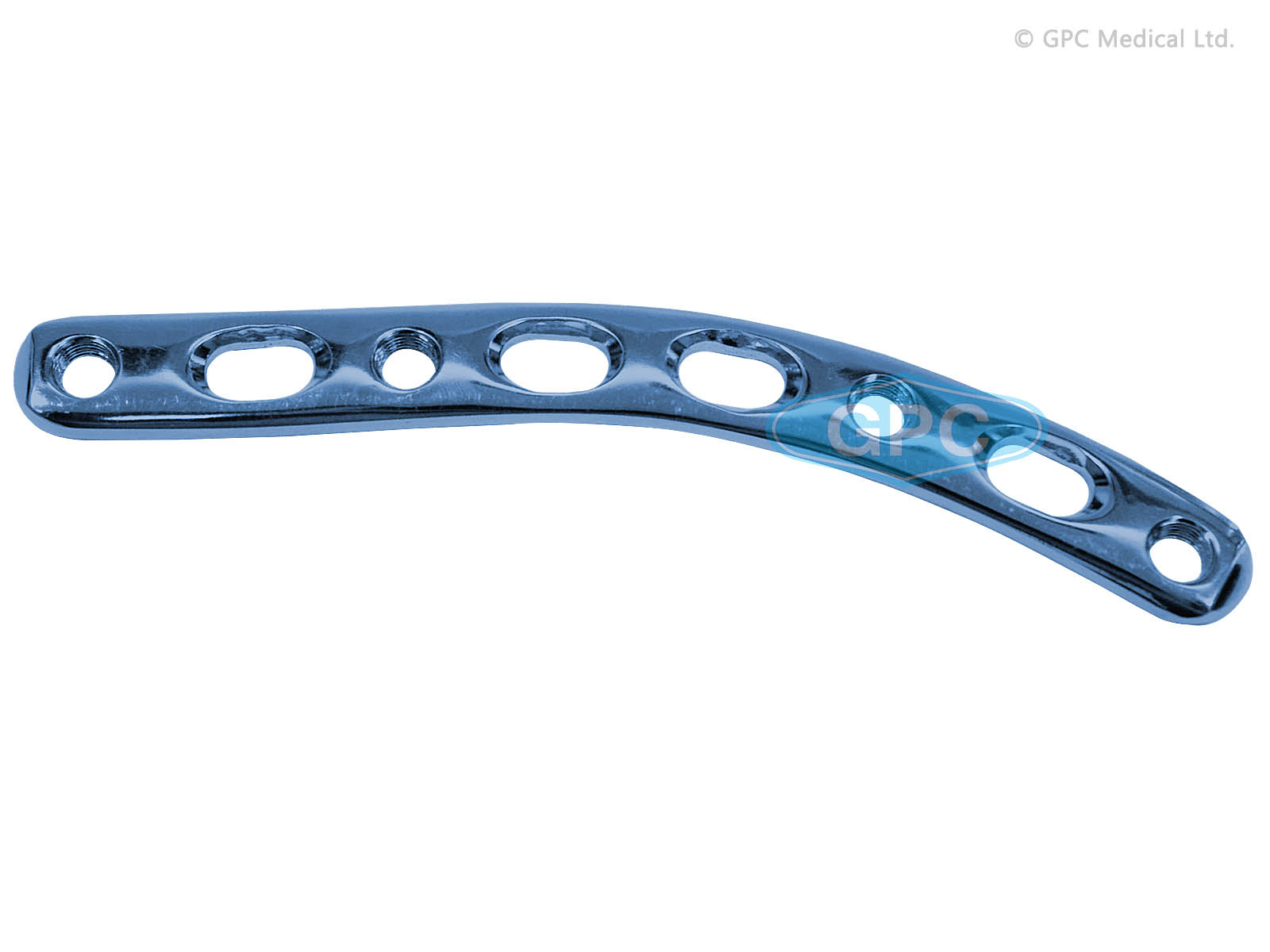

Clavicle S - Shaped Plate, 3.5 mm

Indications:

Fracture clavicle shaft
Mal-unions of the clavicle
Non-unions of the clavicle

Specifications

Features

Pre-contoured for right and left clavicle
S shape to match the anatomy of the clavicle
Thin plate profile easy to contour
Fixed with 3.5 mm cortex screws
Available in both Stainless Steel and Titanium

Profile:

Thickness (T): 3 mm
Width (W): 10 mm

No. of Holes	Code - Left		Code - Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
6	603.06L	603.06TL	603.06R	603.06TR
8	603.08L	603.08TL	603.08R	603.08TR
