Small Fragment Plating System

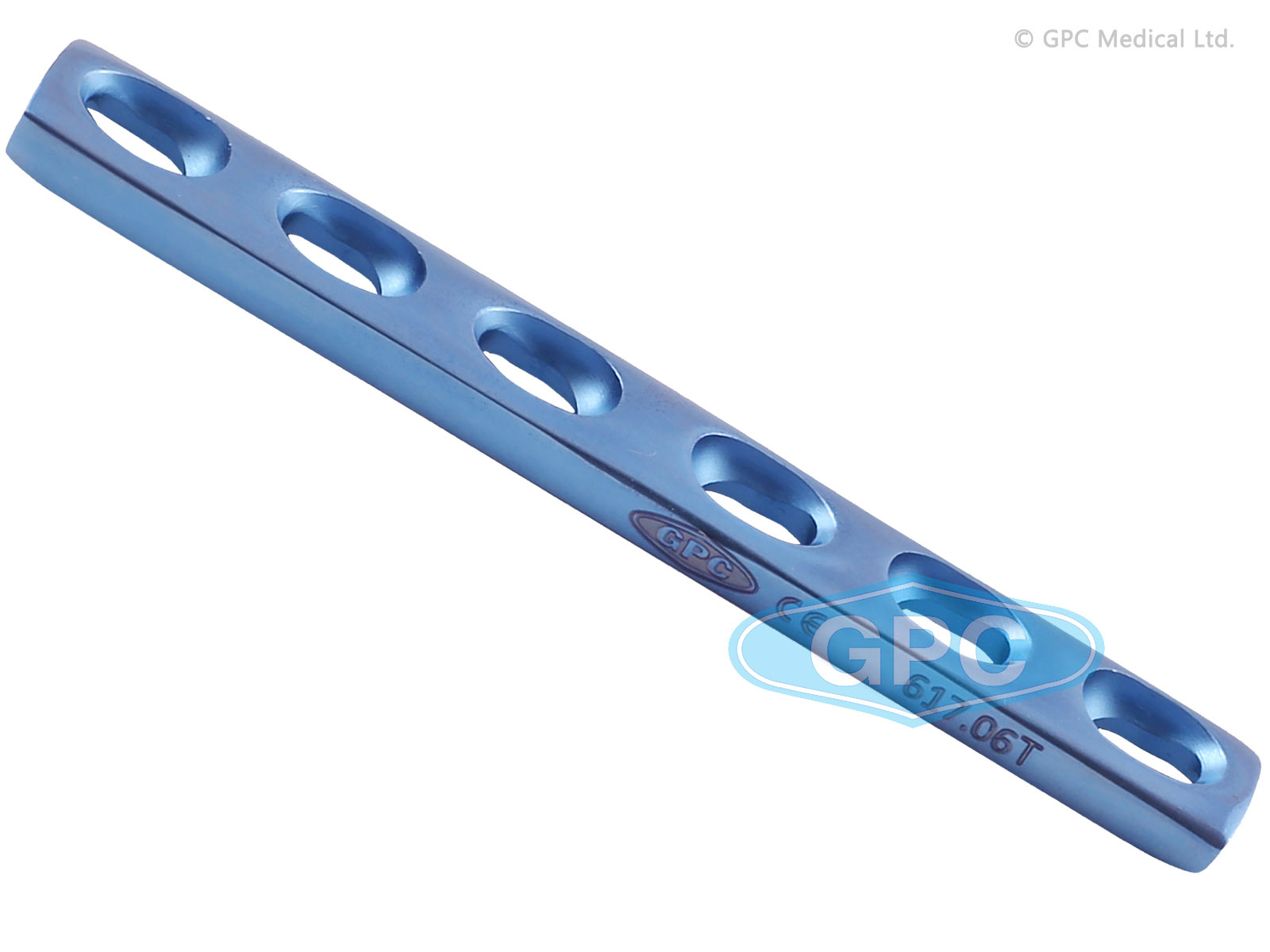

Dynamic Self Compression Plate for Small Fragment for Ulna and Radius

Indications:

Unstable radius fractures
Intra-articular and extra-articular radius and ulna fractures
Distal humeral fractures
Clavicular fractures

Specifications
Product Video

Features

Dynamic compression holes allow compression of fracture fragments for early bone healing
Allow stable fixation of fractures
DCP holes allow inclined insertion of screws in 25Â° longitudinal and 7Â° sideways
Notched at the end to allow the attachment of Muller's Compression Device
Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 3.5 mm
Width (W): 10 mm
Hole Spacing (HS): 12 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
2	617.02	617.02T
3	617.03	617.03T
4	617.04	617.04T
5	617.05	617.05T
6	617.06	617.06T
7	617.07	617.07T
8	617.08	617.08T
9	617.09	617.09T
10	617.10	617.10T
11	617.11	617.11T
12	617.12	617.12T
14	617.14	617.14T
