Small Fragment Plating System

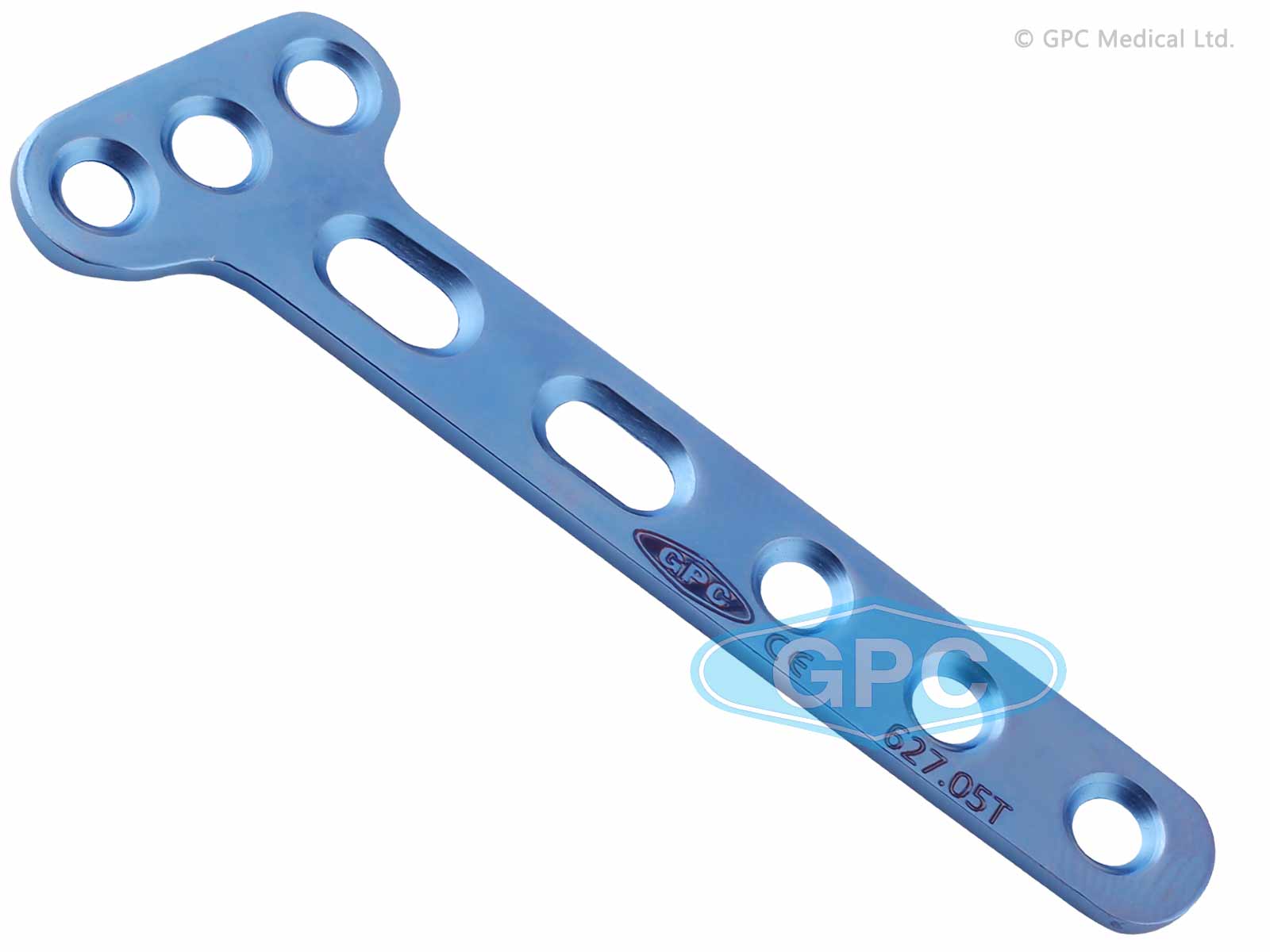

Small T - Plate Oblique Angled

Indications:

Unstable distal radius fracture
Partial articular and intra articular distal radius fractures
For fixation following corrective osteotomy of malunited distal radius fractures
For dorsum of the distal radius where it fits better than right angled T Plate

Specifications

Features

Oblique plate for holding the styloid fragment
Oblique part has 120 angle
Low profile plate prevents soft tissue irritation
Oblong hole in the shaft allows temporary stabilisation and accurate plate placement
Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1.5 mm
Width (W): 10 mm
Hole Spacing (HS): 14 mm

No. of Holes	CODE -Left		CODE -Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
3	627.03L	627.03TL	627.03R	627.03TR
4	627.04L	627.04TL	627.04R	627.04TR
5	627.05L	627.05TL	627.05R	627.05TR
