Large Fragment Plating System

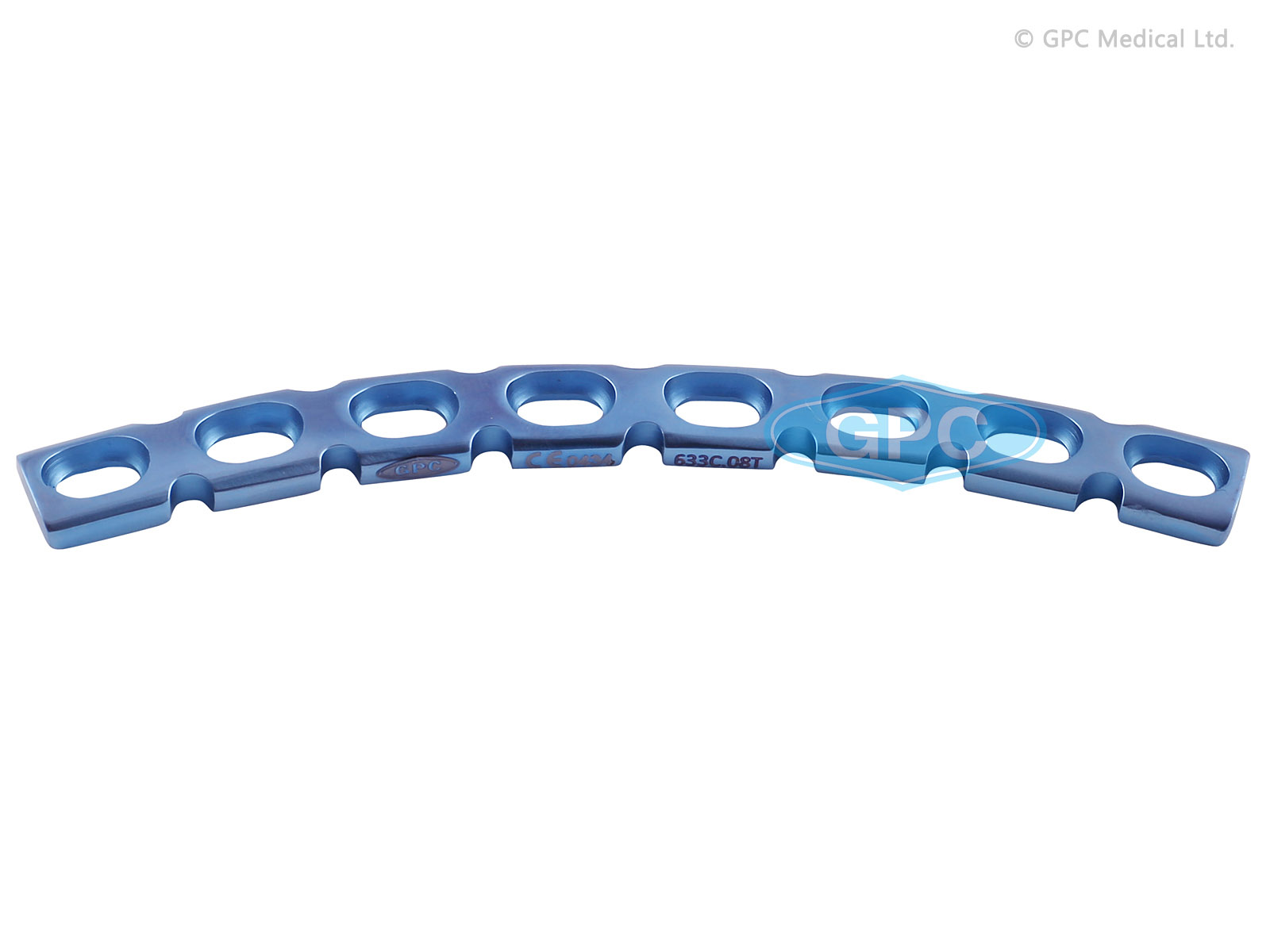

Reconstruction Plate, 4.5 mm - Curved

Indications:

Pelvis and acetabulum fractures
Used in the reconstruction of pelvic fractures

Specifications

Features

Notches situated between the holes allow accurate contouring of the plate
Used in fractures with complex three dimensional geometry
Used with 4.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 2.8 mm
Width (W): 12 mm
Hole Spacing (HS): 16 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
8	634C.08	634C.08T
9	634C.09	634C.09T
10	634C.10	634C.10T
