Large Fragment Plating System

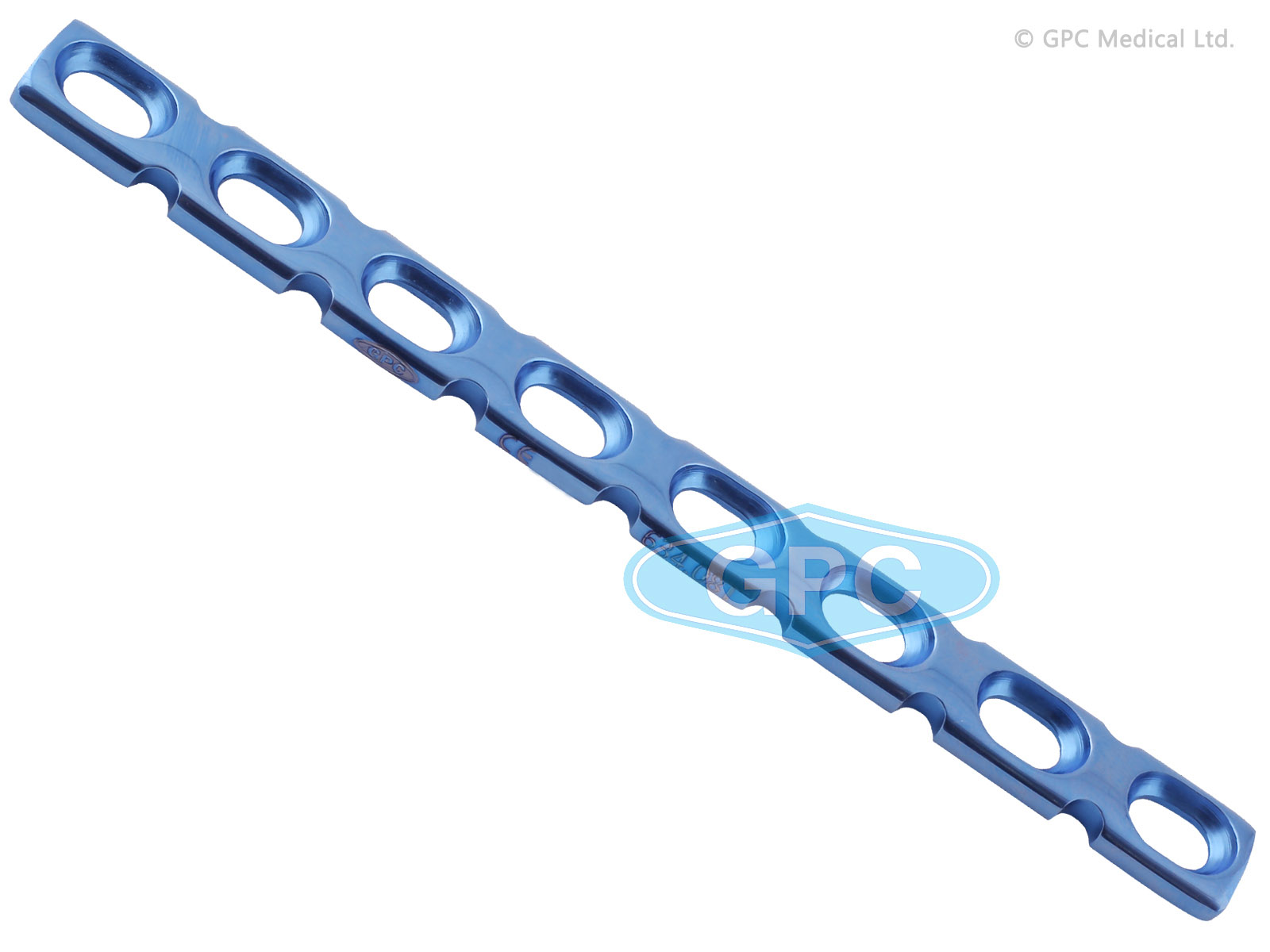

Reconstruction Plate 4.5mm Screws

Indications:

Pelvis and acetabulum fractures
Distal tibia fractures
Calcaneum fractures
Medial malleolus fractures

Specifications

Features

Have deep scallop like notches on the edge of the plate
Notches situated between the holes allow accurate contouring of the plate in all planes
Used in fractures with complex three dimensional geometry
Can be contoured with special instruments to match the bone anatomy
Used with 4.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 2.8 mm
Width (W): 12 mm
Hole Spacing (HS): 16 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	634.05	634.05T
6	634.06	634.06T
7	634.07	634.07T
8	634.08	634.08T
9	634.09	634.09T
10	634.10	634.10T
12	634.12	634.12T
14	634.14	634.14T
16	634.16	634.16T
18	634.18	634.18T
20	634.20	634.20T
22	634.22	634.22T

Fixation with 4.5mm screws.
Do not bend more than 15�
