Large Fragment Plating System

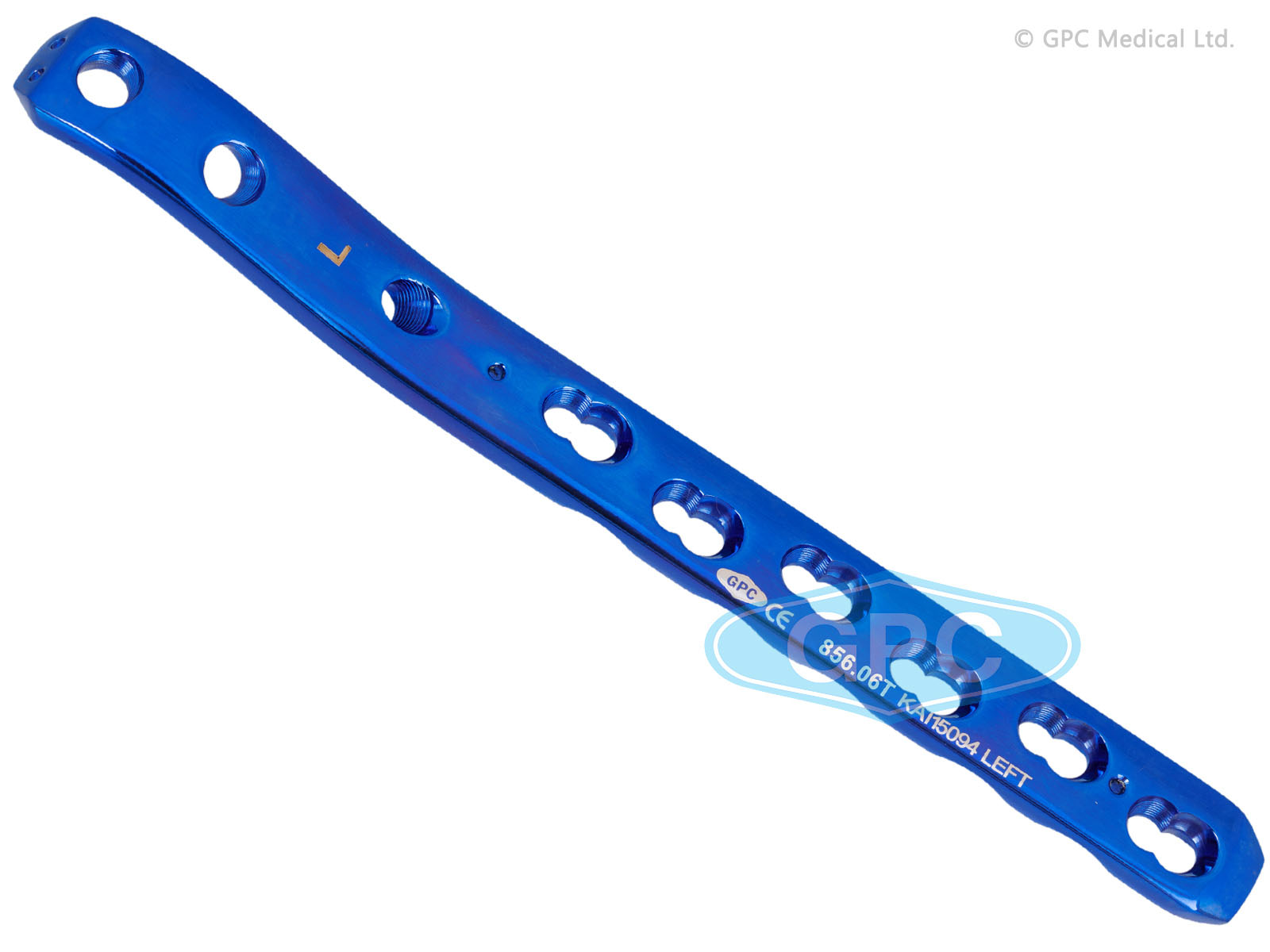

fixLOCK Proximal Femur Locking Plate

Indications:

Subtrochanteric fractures
Pertrochanteric fractures
Trochantero-diaphyseal fractures
Intertrochanteric fracture- Reverse oblique type
Intertrochanteric fracture with ipsialteral shaft fracture
Osteotomy proximal femur
Non-union and Mal-union fracture proximal third femur
Metastatic fracture proximal femur
Osteoporotic and other pathological fractures

Specifications

Anatomically right or left considering average anteversion of the femoral neck
Plate contoured with proximal screw region and distal shaft area approximated to the bone
Fixed angle construct with proximal screw directed into the femoral head & obliquely directed screw just distal to the trochanteric screw is directed upwards and forwards converging towards proximal screw
Oblique screw provides support in the calcar region
Beveled tip for submuscular insertion with minimal soft tissue stripping
Smaller area of post-fixation avascularity
Screw trajectory designed for optimal fixation of comminuted fractures
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Available in both Titanium & Stainless steel

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
6	856.06L	856.06R	856.06TL	856.06TR
7	856.07L	856.07R	856.07TL	856.07TR
8	856.08L	856.08R	856.08TL	856.08TR
9	856.09L	856.09R	856.09TL	856.09TR
10	856.10L	856.10R	856.10TL	856.10TR
11	856.11L	856.11R	856.11TL	856.11TR
12	856.12L	856.12R	856.12TL	856.12TR
13	856.13L	856.13R	856.13TL	856.13TR
14	856.14L	856.14R	856.14TL	856.14TR
15	856.15L	856.15R	856.15TL	856.15TR
