Mini Fragment Plating System

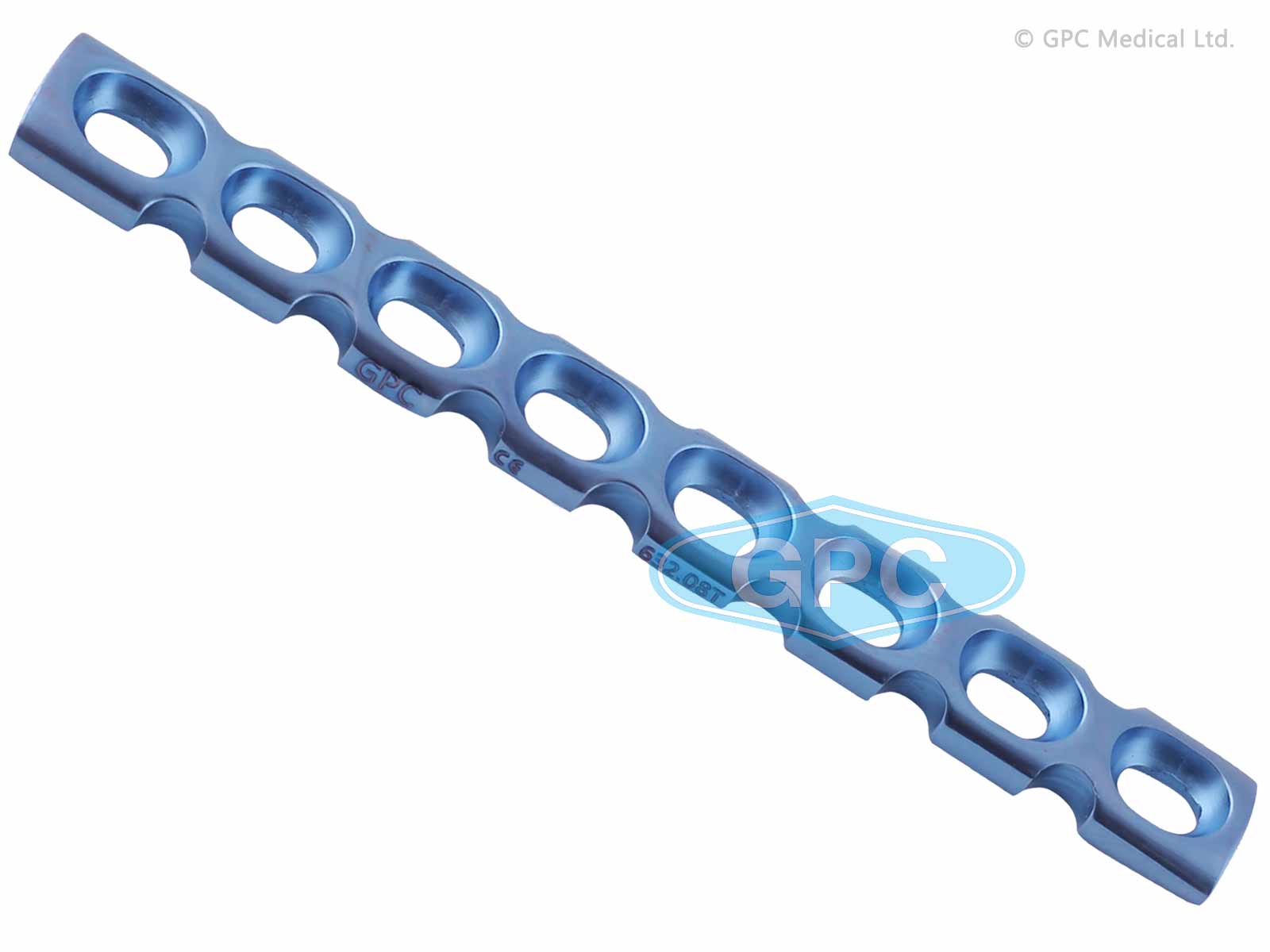

Reconstruction Plate 2.7mm Screws

Indications:

Middle and proximal phalanx fractures
Osteotomies and non-union of phalanges

Specifications

Features

Minimal soft tissue irritation
Can be bent according to the contour of bone
Provides rigid fixation
Fixed with 2.7 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 3 mm
Width (W): 8 mm
Hole Spacing (HS): 8 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	632.05	632.05T
6	632.06	632.06T
8	632.08	632.08T
10	632.10	632.10T
12	632.12	632.12T
14	632.14	632.14T
16	632.16	632.16T
18	632.18	632.18T
20	632.20	632.20T
22	632.22	632.22T
24	632.24	632.24T
