Large Fragment Plating System

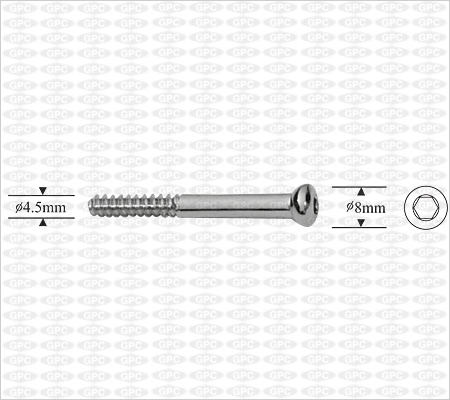

Shaft Screw 4.5mm

Specifications

Shaft Screw 4.5mm

Thread Dia.	4.5mm
Drill Bit for Threaded Hole	3.2mm
Drill Bit for Gliding Hole	4.5mm
Shaft Dia.	4.5mm
Core Dia.	3.0mm
Hexagonal Socket Width	3.5mm
Head Dia.	8.0mm

Code		Total Length (mm)	Thread Length (mm)		Code		Total Length (mm)	Thread Length (mm)
S.S.	Titanium	Total Length (mm)	Thread Length (mm)		S.S.	Titanium	Total Length (mm)	Thread Length (mm)
741.22	741.22T	22	12		741.58	741.58T	58	16
741.24	741.24T	24	12		741.60	741.60T	60	20
741.26	741.26T	26	13		741.62	741.62T	62	20
741.28	741.28T	28	13		741.64	741.64T	64	20
741.30	741.30T	30	13		741.66	741.66T	66	20
741.32	741.32T	32	13		741.68	741.68T	68	20
741.34	741.34T	34	13		741.70	741.70T	70	20
741.36	741.36T	36	13		741.72	741.72T	72	20
741.38	741.38T	38	13		741.74	741.74T	74	20
741.40	741.40T	40	13		712.76	712.76T	76	20
741.42	741.42T	42	13		712.78	712.78T	78	20
741.44	741.44T	44	13		712.80	712.80T	80	20
741.46	741.46T	46	13		712.85	712.85T	85	23
741.48	741.48T	48	13		712.90	712.90T	90	23
741.50	741.50T	50	13		712.95	712.95T	95	26
741.52	741.52T	52	16		712.100	712.100T	100	26
741.54	741.54T	54	16		712.105	712.105T	105	26
741.56	741.56T	56	16		712.110	712.110T	110	26
