D.C.S. Barrel Plates with dynamic compression holes and slot for tension device. Manufacturer, Supplier & Exporter

Indications:

Features

Permits stable fixation in the proximal fragment
95Â° barrel angle allowing it to enter the femur more proximally allowing insertion of independent screws into the calcar
Two round holes next to the barrel accept 6.5 mm cancellous screws which enhance stability in distal condylar and subtrochanteric fractures
Minimal soft tissue irritation due to low profile design which reduces risk of intertrochanteric band irritation in distal femur and trochanteric bursitis in subtrochanteric fractures
Dynamic compression holes allow compression of fracture fragments
Barrel length 25 mm, used with DHS lag screw Dia. 12.5 mm and compression screw of length 36 mm
Angle between neck and shaft is 95Â°
Shaft compression holes fixed with cortex screw Dia. 4.5 mm
Available in both Titanium and Stainless Steel

Profile

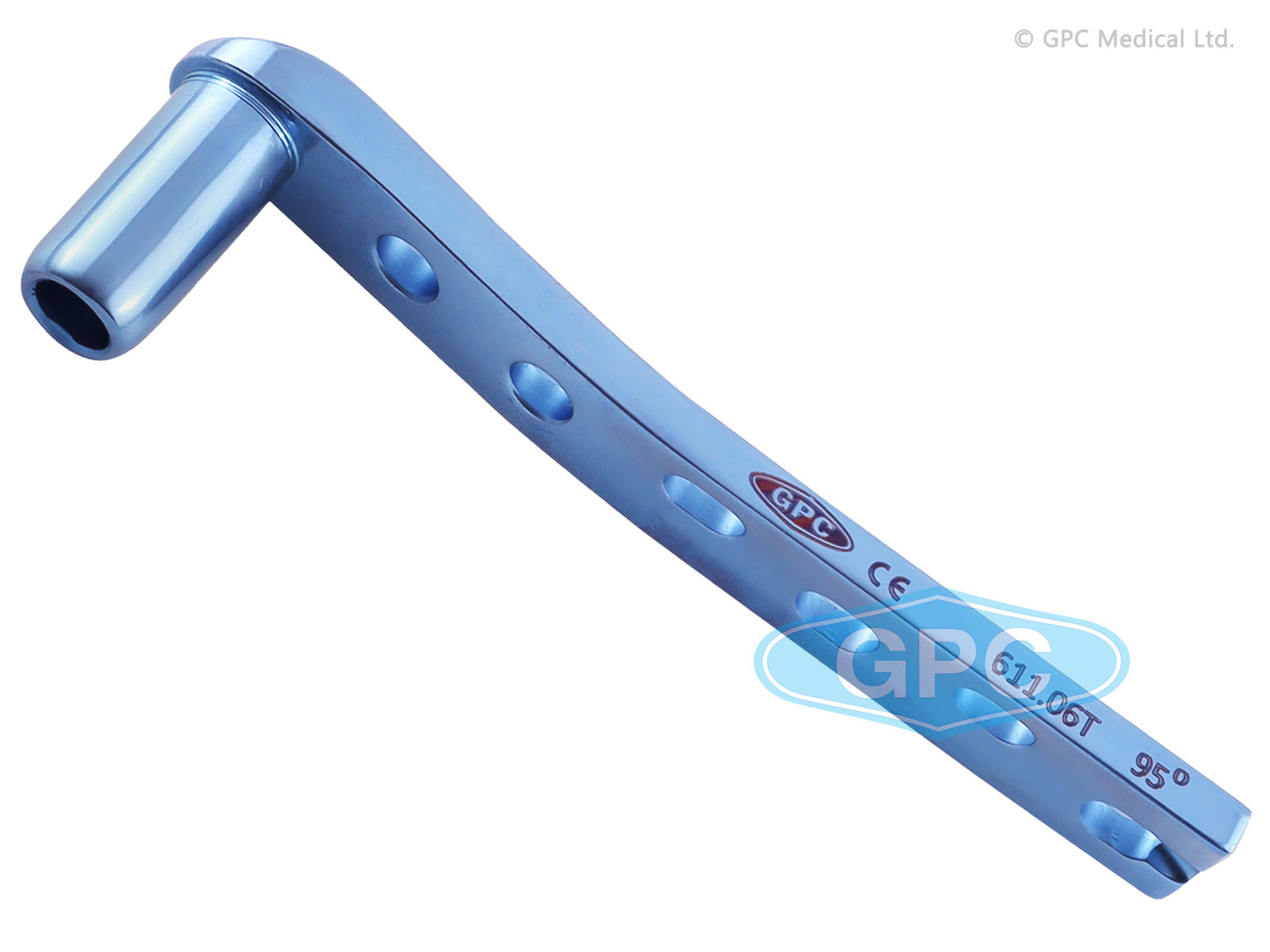

D.C.S. Barrel Plates with dynamic compression holes and slot for tension device.
