Large Fragment Plating System

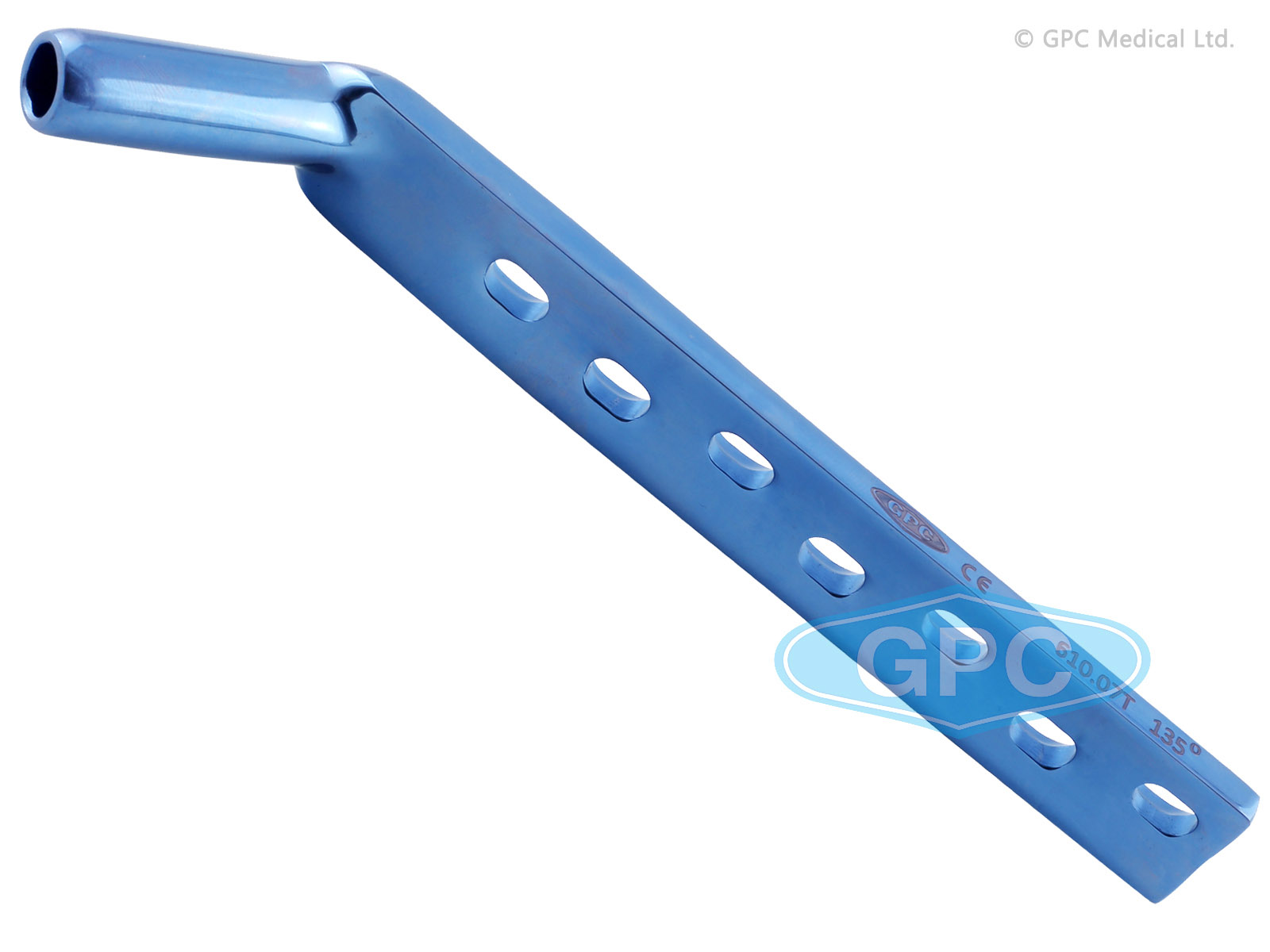

D.H.S. Barrel Plates with dynamic compression holes and slot for tension device

Indications:

Intertrochanteric and pertrochanteric (simple and comminuted) fractures
Basilar neck femur fracture
Non-union neck femur
Subtrochanteric fractures

Specifications

Features

Provides controlled collapse and compression of fracture fragments
Dynamic action reduces incidence of screw cut out and penetration of screw into hip joint
Low profile design reduces the risk of trochanteric bursitis
Stable fixation and prevents undue stress concentration on the implant
Used with DHS lag screw Dia. 12.5 mm and compression screw of length 36 mm
Dynamic compression holes allow compression of fracture fragment
Shaft compression holes fixed with cortex screw Dia. 4.5 mm
Available in various neck shaft angles from 125-150Â° (with difference of 5Â°). However, most commonly used is 135Â°
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 5.8 mm
Width (W): 19 mm
Hole Spacing (HS): 16 mm

No. of Holes	Code
	Stainless Steel
	125Â°	130Â°	135Â°	140Â°	145Â°	150Â°
2	610.125.02	610.130.02	610.135.02	610.140.02	610.145.02	610.150.02
3	610.125.03	610.130.03	610.135.03	610.140.03	610.145.03	610.150.03
4	610.125.04	610.130.04	610.135.04	610.140.04	610.145.04	610.150.04
5	610.125.05	610.130.05	610.135.05	610.140.05	610.145.05	610.150.05
6	610.125.06	610.130.06	610.135.06	610.140.06	610.145.06	610.150.06
7	610.125.07	610.130.07	610.135.07	610.140.07	610.145.07	610.150.07
8	610.125.08	610.130.08	610.135.08	610.140.08	610.145.08	610.150.08
9	610.125.09	610.130.09	610.135.09	610.140.09	610.145.09	610.150.09
10	610.125.10	610.130.10	610.135.10	610.140.10	610.145.10	610.150.10
12	610.125.12	610.130.12	610.135.12	610.140.12	610.145.12	610.150.12
14	610.125.14	610.130.14	610.135.14	610.140.14	610.145.14	610.150.14
16	610.125.16	610.130.16	610.135.16	610.140.16	610.145.16	610.150.16
18	610.125.18	610.130.18	610.135.18	610.140.18	610.145.18	610.150.18
20	610.125.20	610.130.20	610.135.20	610.140.20	610.145.20	610.150.20

No. of Holes	Code
	Titanium
	125Â°	130Â°	135Â°	140Â°	145Â°	150Â°
2	610.125.02T	610.130.02T	610.135.02T	610.140.02T	610.145.02T	610.150.02T
3	610.125.03T	610.130.03T	610.135.03T	610.140.03T	610.145.03T	610.150.03T
4	610.125.04T	610.130.04T	610.135.04T	610.140.04T	610.145.04T	610.150.04T
5	610.125.05T	610.130.05T	610.135.05T	610.140.05T	610.145.05T	610.150.05T
6	610.125.06T	610.130.06T	610.135.06T	610.140.06T	610.145.06T	610.150.06T
7	610.125.07T	610.130.07T	610.135.07T	610.140.07T	610.145.07T	610.150.07T
8	610.125.08T	610.130.08T	610.135.08T	610.140.08T	610.145.08T	610.150.08T
9	610.125.09T	610.130.09T	610.135.09T	610.140.09T	610.145.09T	610.150.09T
10	610.125.10T	610.130.10T	610.135.10T	610.140.10T	610.145.10T	610.150.10T
12	610.125.12T	610.130.12T	610.135.12T	610.140.12T	610.145.12T	610.150.12T
14	610.125.14T	610.130.14T	610.135.14T	610.140.14T	610.145.14T	610.150.14T
16	610.125.16T	610.130.16T	610.135.16T	610.140.16T	610.145.16T	610.150.16T
18	610.125.18T	610.130.18T	610.135.18T	610.140.18T	610.145.18T	610.150.18T
20	610.125.20T	610.130.20T	610.135.20T	610.140.20T	610.145.20T	610.150.20T
