Large Fragment Plating System

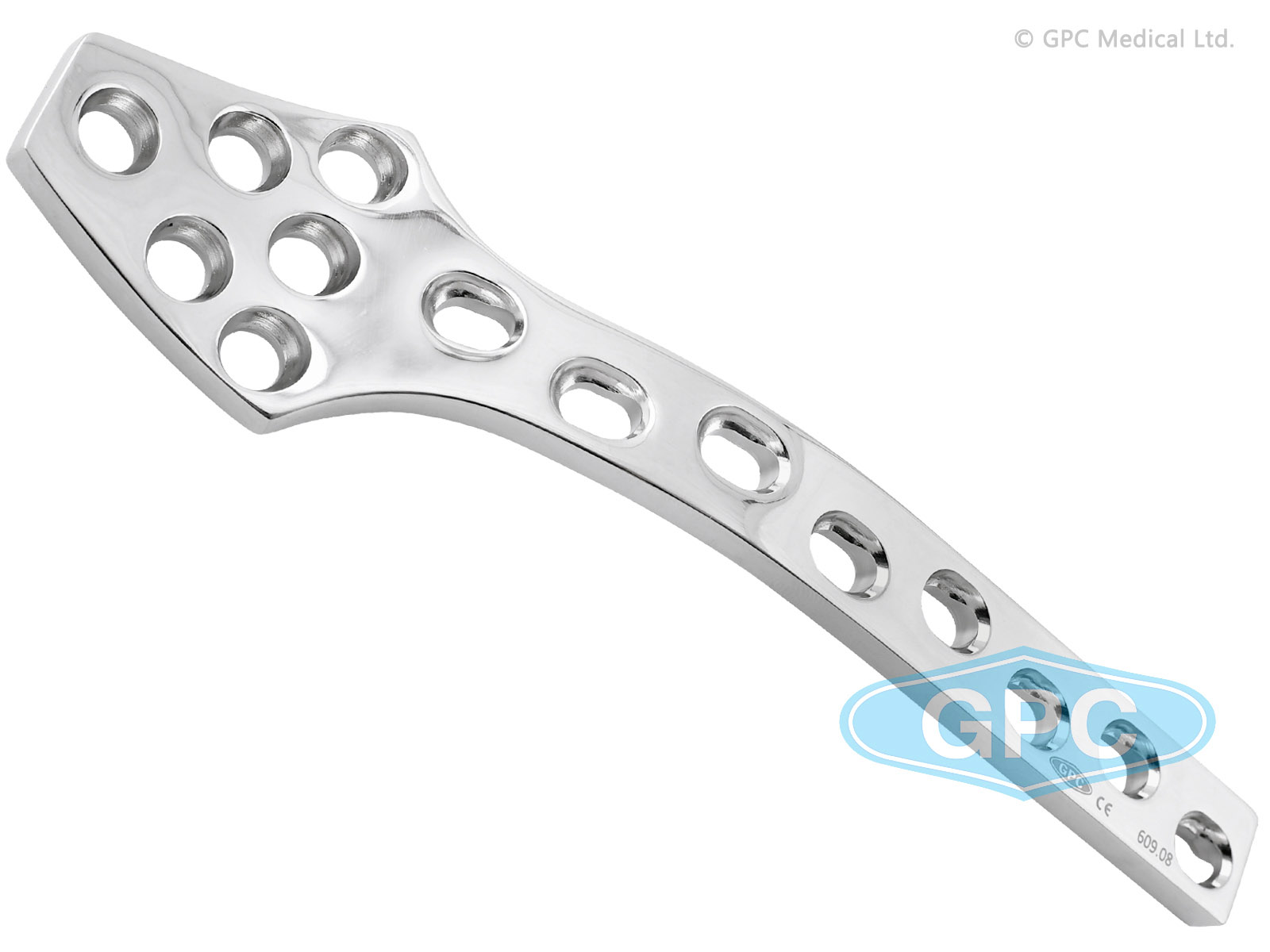

Cobra Head Plate with dynamic compression holes and slot for tension device.

Indications:

Hip arthrodesis
Severe deterioration of the hip joint with a painful, reduced range of motion in young patients
Disorders subsequent to sepsis of the hip joint

Specifications

Features

If the technique is correct, immediate mobilization and partial weight bearing is facilitated
Little risk of non-union as compared to other surgical procedures
Dynamic compression holes allow compression of fracture fragments
Head holes suitable for 6.5 mm cancellous screws
Shaft compression holes are fixed with cortical screws Dia. 4.5 mm for fixation with femoral shaft
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 6 mm
Width (W): 16 mm
Hole Spacing (HS): 16 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
7	609.07	609.07T
8	609.08	609.08T
9	609.09	609.09T
10	609.10	609.10T
11	609.11	609.11T
12	609.12	609.12T
13	609.13	609.13T
14	609.14	609.14T
