Small Fragment Plating System

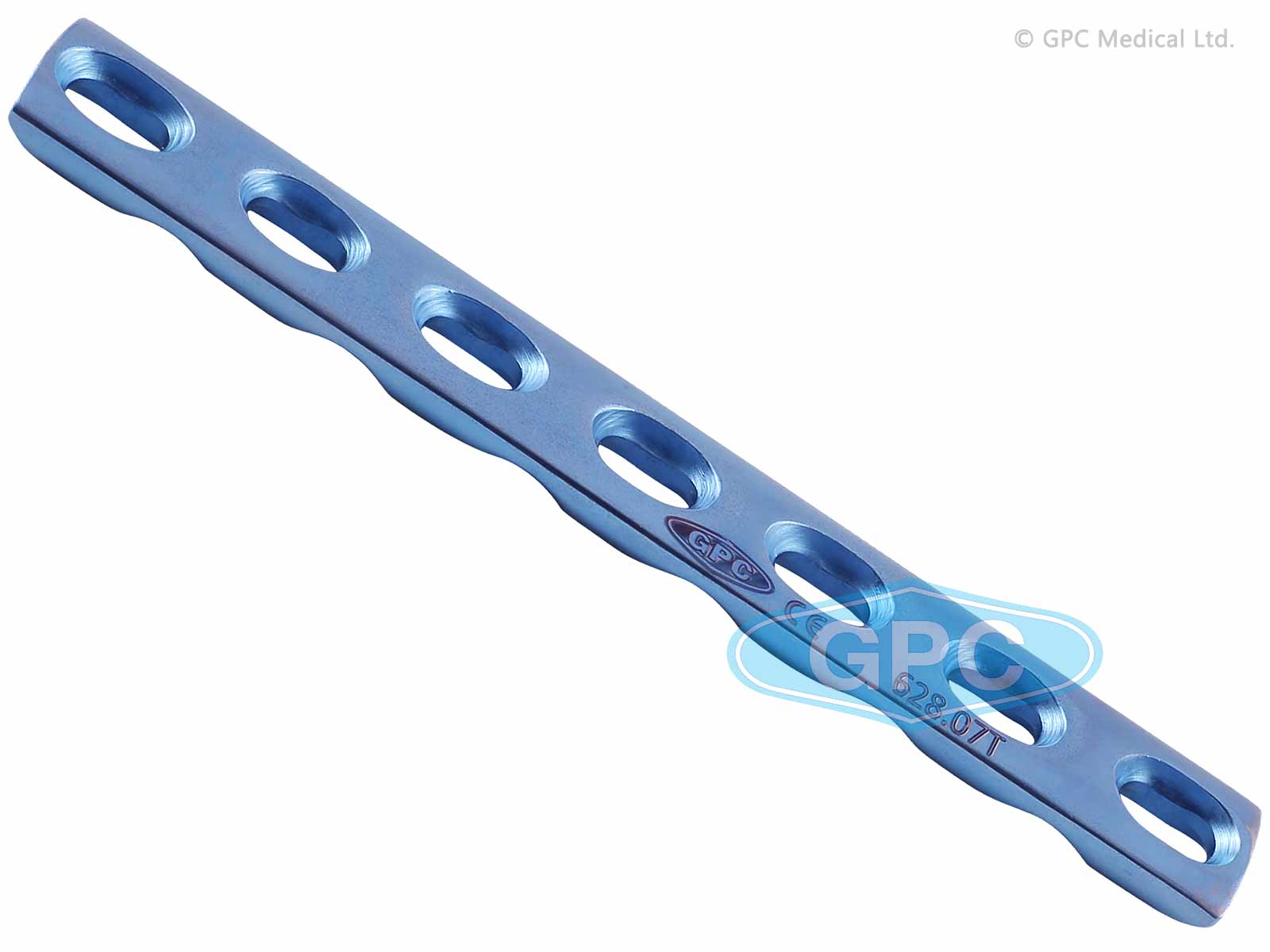

Limited Contact Dynamic Compression Plate (LC-DCP) - Small

Indications:

Forearm fractures
Fibula fractures
Clavicular fractures
Pelvis fractures
Malleolar fractures

Specifications
Product Video

Features

Reduces plate footprint to preserve the blood supply of the periosteum
Overcomes problems with DCP plate
Allows more inclination of screw in longitudinal plane and transverse plane
Oval holes allow compression of fracture fragments
More contourable
Reduced plate fatigue at hole
Less chances of fracture after implant removal
Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 4 mm
Width (W): 11 mm
Hole Spacing (HS): 13 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
3	628.03	628.03T
4	628.04	628.04T
5	628.05	628.05T
6	628.06	628.06T
7	628.07	628.07T
8	628.08	628.08T
9	628.09	628.09T
10	628.10	628.10T
11	628.11	628.11T
12	628.12	628.12T
13	628.13	628.13T
14	628.14	628.14T
