Features
- Low-profile plate
- Minimal soft tissue irritation
- Can be contoured to match bone anatomy
- Axial compression by one or more load screws
- Provides rigid fixation
- Fixed with 2.7 mm cortex screws
- Available in both Titanium and Stainless Steel
Profile (for S.S.)
- Thickness (T): 2.5 mm
- Width (W): 8 mm
- Hole Spacing (HS): 8 mm
- Centre Hole Spacing (CHS): 11 mm

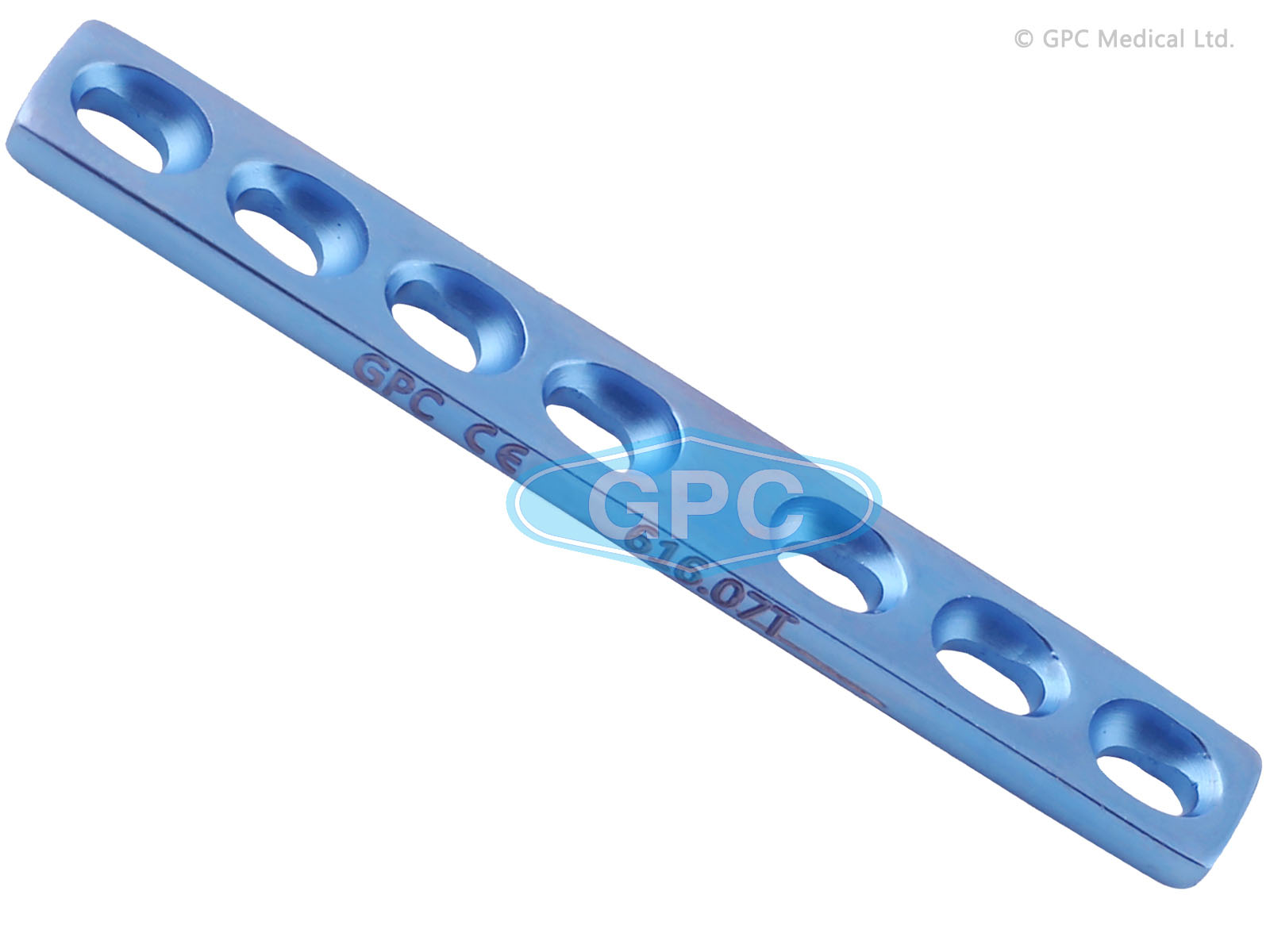

Dynamic Self Compression Plate for 2.7mm Screws
|
No. of Holes
|
CODE
|
|
S.S.
|
Titanium
|
|
2
|
616.02
|
616.02T
|
|
3
|
616.03
|
616.03T
|
|
4
|
616.04
|
616.04T
|
|
5
|
616.05
|
616.05T
|
|
6
|
616.06
|
616.06T
|
|
7
|
616.07
|
616.07T
|
|
8
|
616.08
|
616.08T
|
|
9
|
616.09
|
616.09T
|
|
10
|
616.10
|
616.10T
|
|
12
|
616.12
|
616.12T
|
