Mini Fragment Plating System

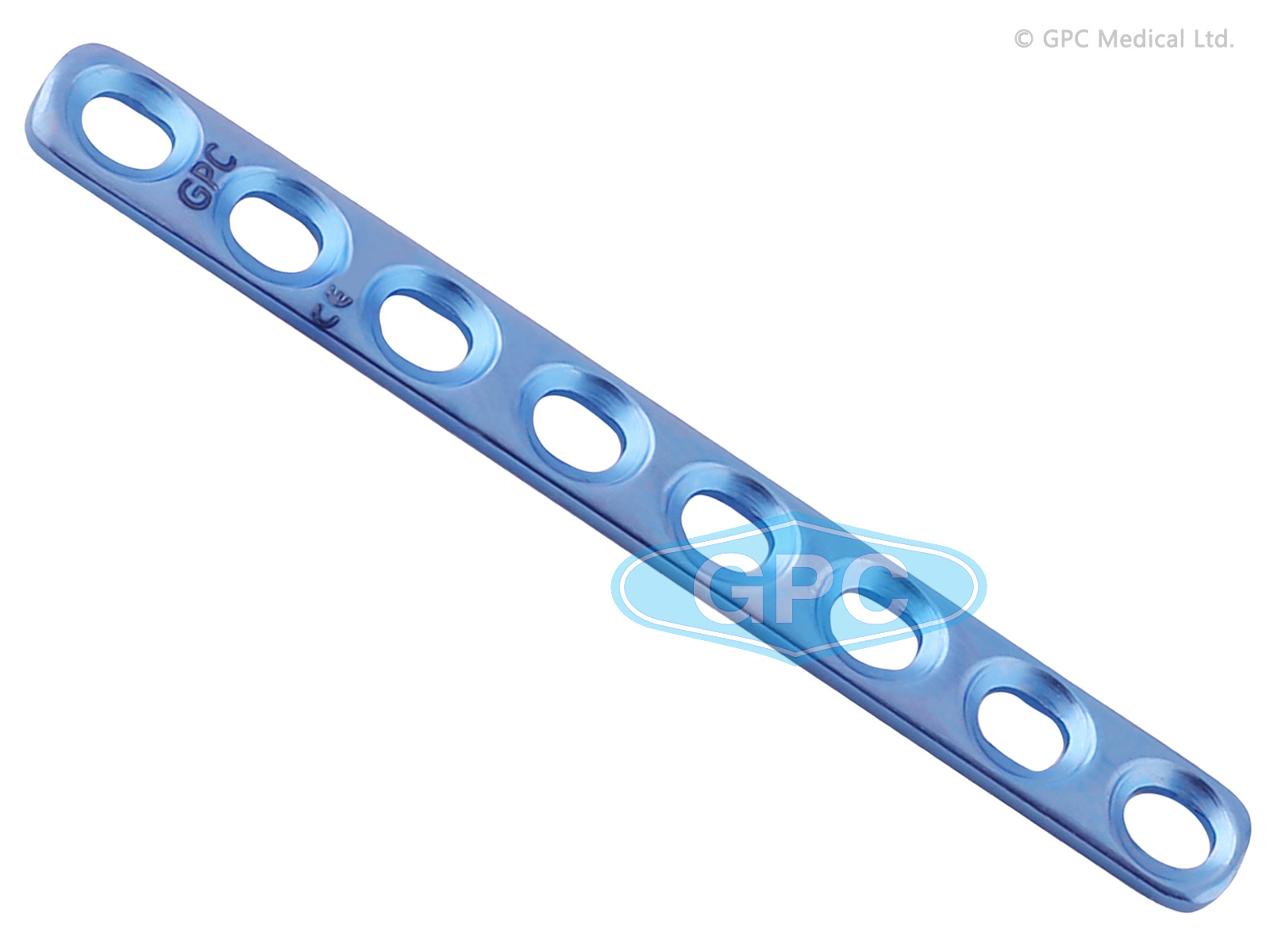

Straight Plates 1.5

Indications:

Diaphyseal fractures of phalanges
Osteotomies and non-union of metacarpals and metatarsals

Specifications

Features

Low profile plate
Minimal soft tissue irritation
Can be bent according to the contour of bone
Provides stable fixation
Fixed with 1.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 0.9 mm
Width (W): 3.8 mm
Hole Spacing (HS): 5 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	673.04	673.04T
6	673.06	673.06T
8	673.08	673.08T
10	673.10	673.10T
12	673.12	673.12T
14	673.14	673.14T
16	673.16	673.16T
18	673.18	673.18T
20	673.20	673.20T
