Large Fragment Plating System

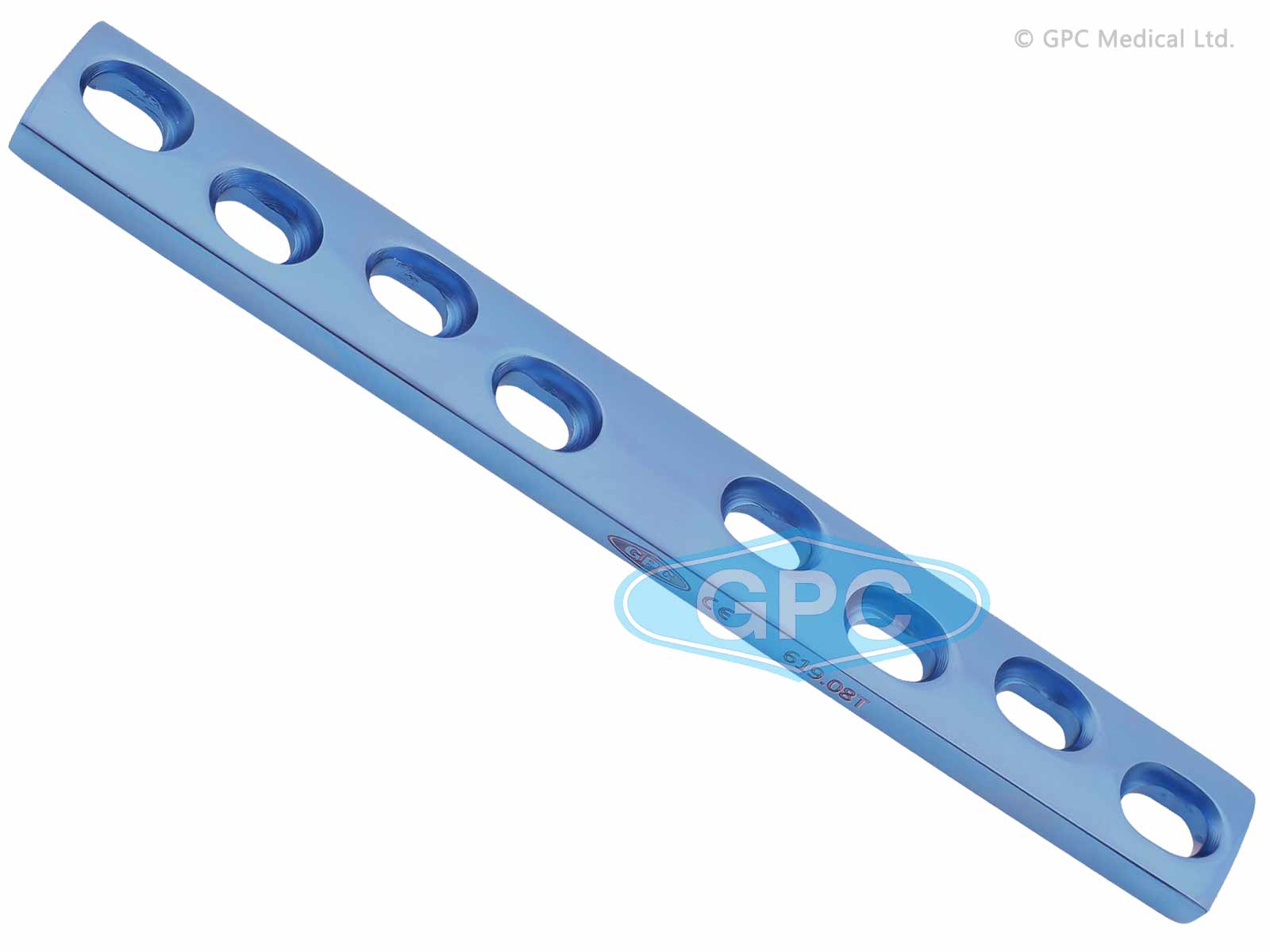

Dynamic Self Compression Plate Broad

Indications:

Fractures and osteotomies of femur and humerus
Nonunions and malunion of femur and humerus

Specifications
Product Video

Features

Can be applied in various modes- compression, buttress and bridging mode
Used as tension band on femur
Self - compressing holes allow compression of fracture fragments
Has a middle section which is placed at the centre of the fracture
Fixation with cortex screws Dia. 4.5 mm and cancellous screws Dia. 6.5 mm
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 5 mm
Width (W): 16 mm
Hole Spacing (HS): 16 mm
Centre Hole Spacing (CHS): 25 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	619.05	619.05T
6	619.06	619.06T
7	619.07	619.07T
8	619.08	619.08T
9	619.09	619.09T
10	619.10	619.10T
11	619.11	619.11T
12	619.12	619.12T
13	619.13	619.13T
14	619.14	619.14T
15	619.15	619.15T
16	619.16	619.16T
17	619.17	619.17T
18	619.18	619.18T

Fixation With 4.5 and 6.5mm screws. All holes are designed as self-compressing holes. All the ends are designed for cancellous bone screw
As a tension band plate on the femur and for humeral pseudorthosies (not intended for the tibia). Use broad plate with six or seven holes in exceptional cases only, e. g. on the humerus.
