Mini Fragment Plating System

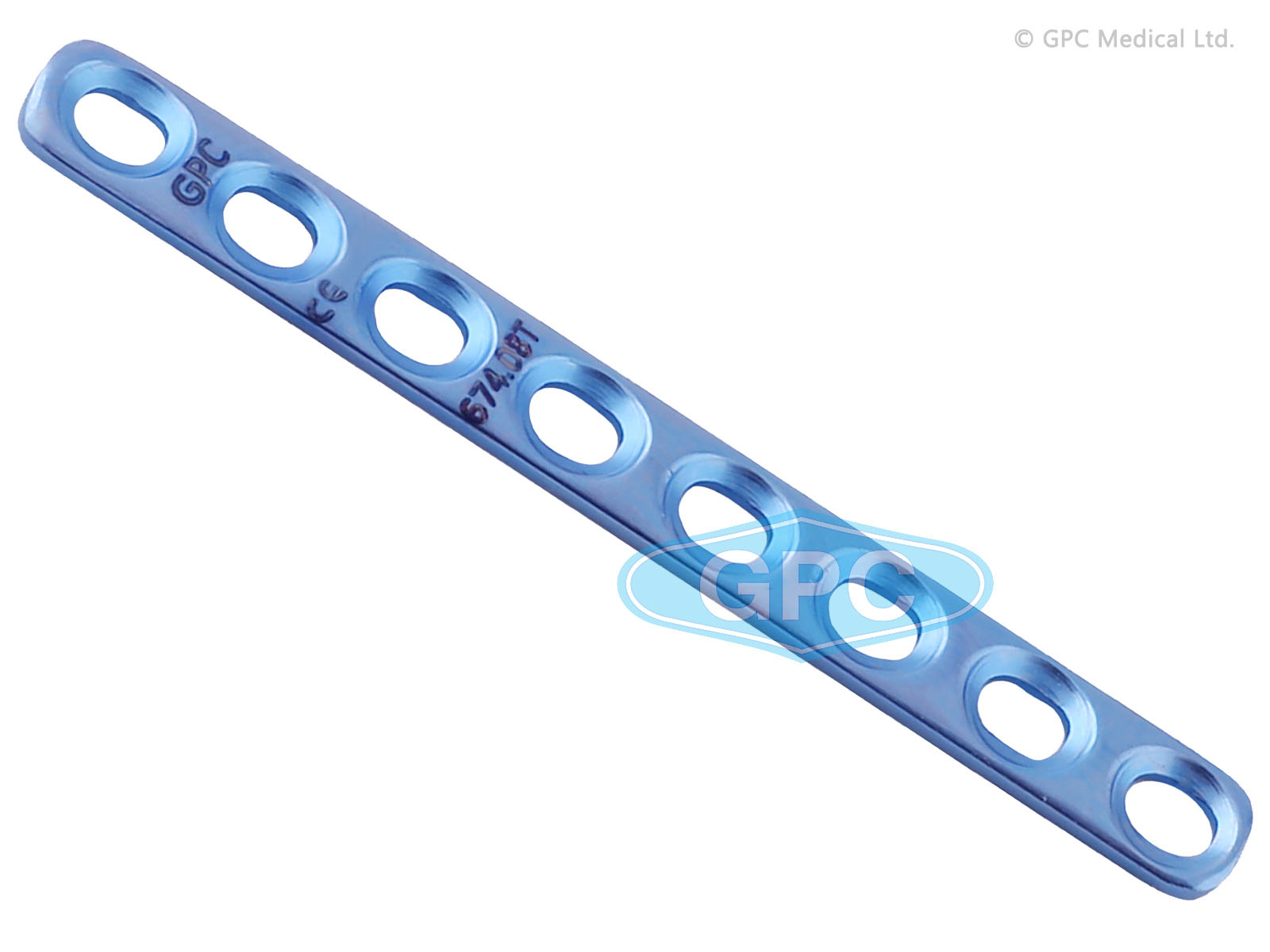

Straight Plates 2.0

Indications:

Short oblique, transverse, diaphyseal fractures of phalanges
Osteotomies and nonunions of metacarpals and metatarsals

Specifications

Features

Can be cut to desired length with special instruments
Contouring of the plate to match the bone anatomy
Minimal soft tissue irritation
Allows axial compression of fracture fragment by eccentric placement of screws
Fixed with 2.0 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1 mm
Width (W): 5 mm
Hole Spacing (HS): 6 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	674.04	674.04T
6	674.06	674.06T
8	674.08	674.08T
10	674.10	674.10T
12	674.12	674.12T
14	674.14	674.14T
16	674.16	674.16T
18	674.18	674.18T
20	674.20	674.20T
