Mini Fragment Plating System

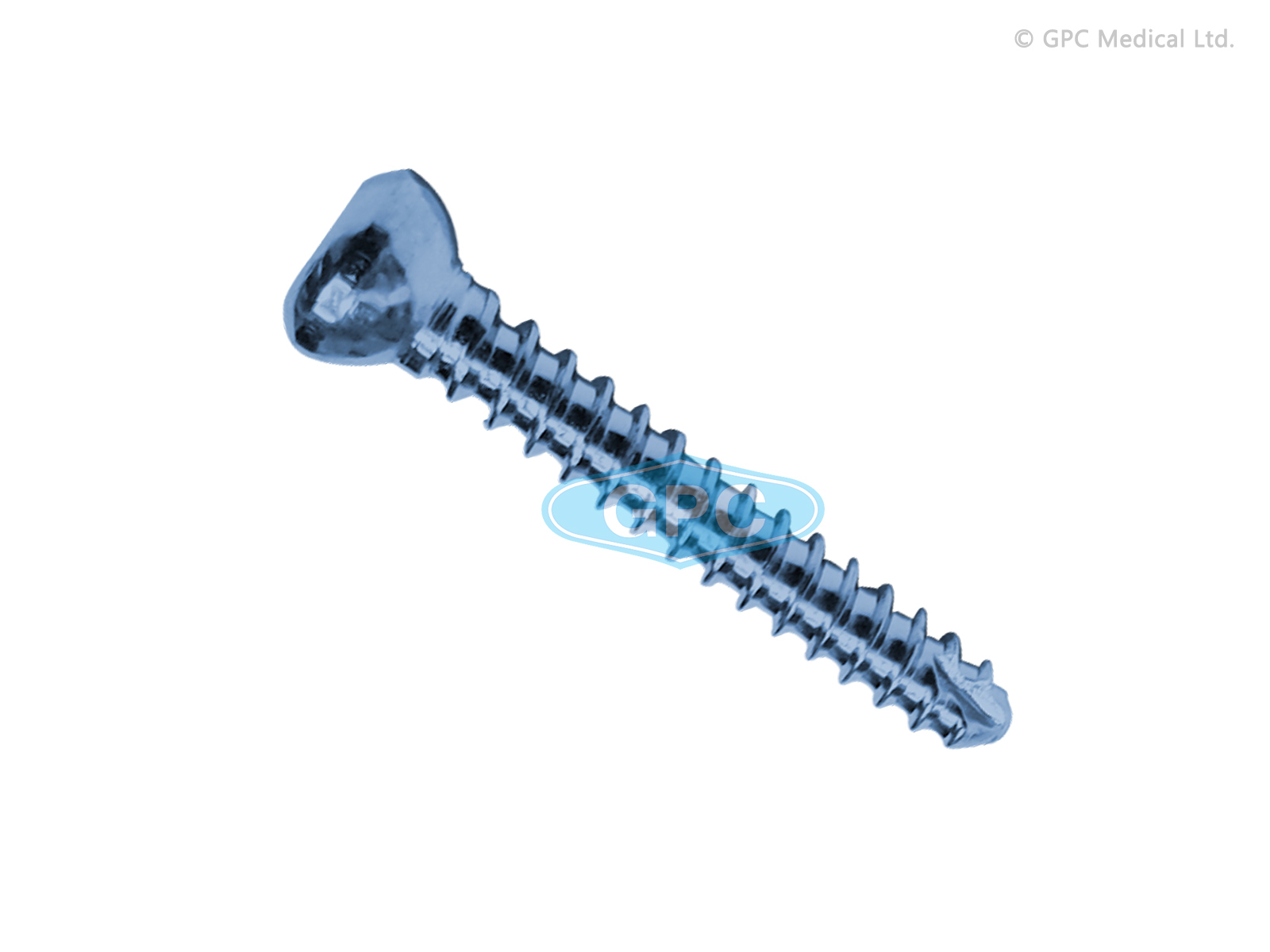

Self-Tapping Cortex Screw 2.7 mm, Hexagonal Socket

Specifications

Thread dia.	2.7 mm
Head dia.	5.0 mm
Core dia.	1.9 mm
Lengths	6-40mm (2 mm Diff)
Drill bit used	2.0 mm

CODE		LENGTH (mm)
S.S.	Titanium	LENGTH (mm)
709.06	709.06T	6mm
709.07	709.07T	7mm
709.08	709.08T	8mm
709.09	709.09T	9mm
709.10	709.10T	10mm
709.11	709.11T	11mm
709.12	709.12T	12mm
709.14	709.14T	14mm
709.16	709.16T	16mm
709.18	709.18T	18mm
709.20	709.20T	20mm
709.22	709.22T	22mm
709.24	709.24T	24mm
709.26	709.26T	26mm
709.28	709.28T	28mm
709.30	709.30T	30mm
709.32	709.32T	32mm
709.34	709.34T	34mm
709.36	709.36T	36mm
709.38	709.38T	38mm
709.40	709.40T	40mm
