Mini Fragment Plating System

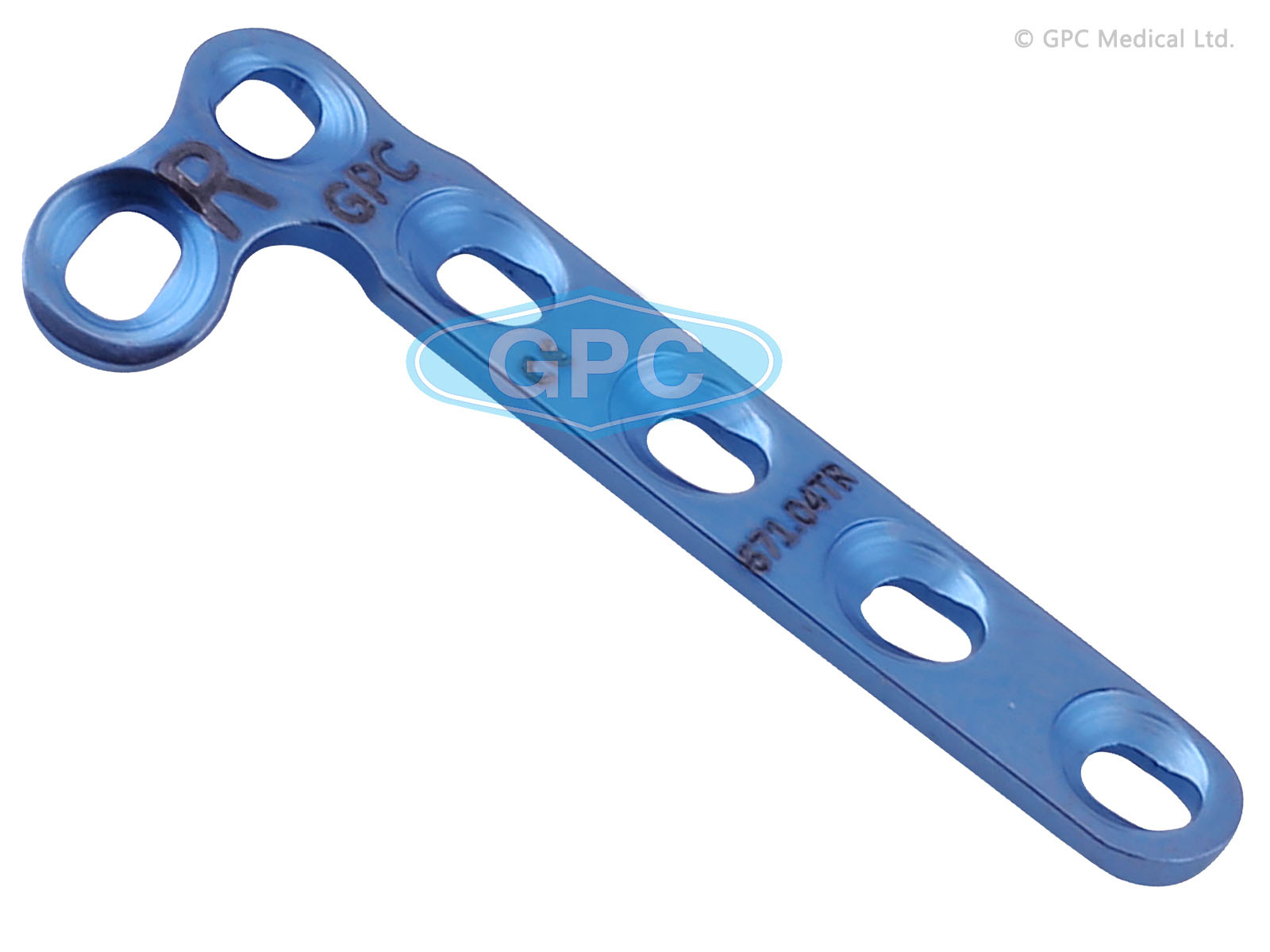

L- and T- Plate 2.0 For Finger joint-head, Shaft with 2 holes, head with 2 holes

Indications:

Proximal third fracture of the metacarpals
Phalangeal and metacarpal ?xation
Osteotomies and nonunions of phalanges and metacarpals

Specifications

Features

Head of the plate is fixed first in the metaphysis and its shaft in the diaphysis
Allows axial compression by eccentric placement of screws in the first shaft hole
2 holes in the head and 2 holes in shaft
L and T profile provides additional fixation for head of metacarpals and phalanges
Low profile plate
Minimal soft tissue irritation
Fixed with 2.0 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1.20 mm
Width (W): 5 mm
Hole Spacing (HS): 6 mm

Profile	CODE
Profile	S.S.	Titanium
L-Left	671.31	671.31T
L-Right	671.32	671.32T
L-Oblique	671.33	671.33T
R-Oblique	671.34	671.34T
T-Shaped	671.41	671.41T
