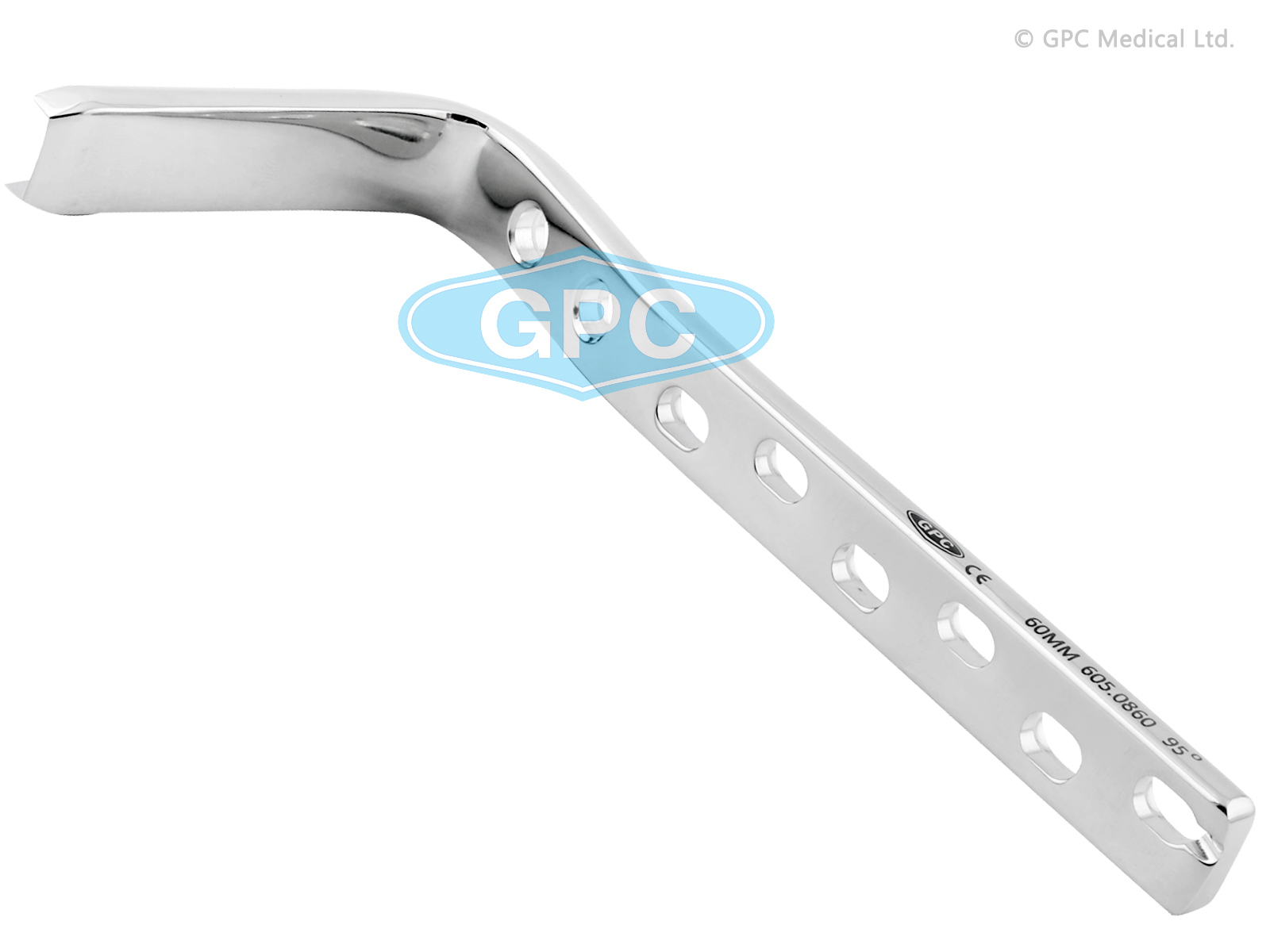

Features
- U profile blade
- 95° angle between blade and shaft of the plate
- Due to the fixed-angle shape, careful planning, and precise preparation of the channel for the blade provides successful application.
- Two round holes near the blade accept 6.5 mm cancellous screws
- Shaft compression holes are fixed with cortex screws Dia. 4.5 mm
- Available in both Titanium and Stainless Steel
Shaft Profile
Thickness 5.6mm
Width 16mm
Hole Spacing 16mm
Length
(mm) |
Code - Stainless Steel |
| 5 Holes |
7 Holes |
9 Holes |
12 Holes |
14 Holes |
16 Holes |
18 Holes |
| 50 |
605.05.50 |
605.07.50 |
605.09.50 |
605.12.50 |
605.14.50 |
605.16.50 |
605.18.50 |
| 60 |
605.05.60 |
605.07.60 |
605.09.60 |
605.12.60 |
605.14.60 |
605.16.60 |
605.18.60 |
| 70 |
605.05.70 |
605.07.70 |
605.09.70 |
605.12.70 |
605.14.70 |
605.16.70 |
605.18.70 |
| 80 |
605.05.80 |
605.07.80 |
605.09.80 |
605.12.80 |
605.14.80 |
605.16.80 |
605.18.80 |
