Large Fragment Plating System

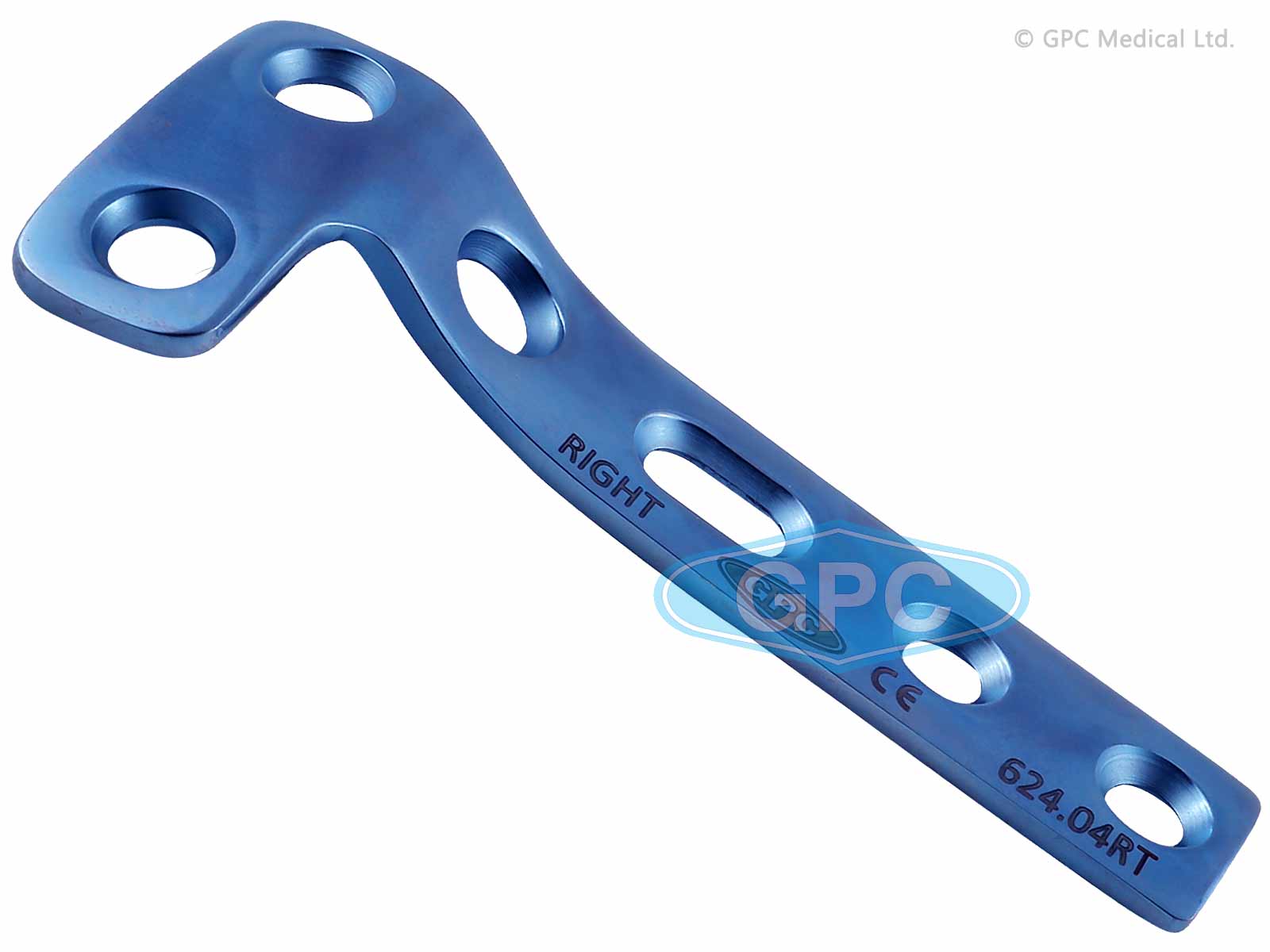

L - Buttress Plates

Indications:

Proximal tibia fracture
Proximal humerus fracture

Specifications

Features

Designed to buttress the lateral aspect of the tibial plateau
L buttress plates have an offset head, one for the left and one for the right leg, to enable more lateral buttressing without disturbing the fibula
Precontoured low profile plate
Oblong hole in the plate allows temporary fixation of the plate to the bone to allow up and down adjustment
Shaft holes fixed with cortex screw Dia. 4.5 mm and head holes fixed with 6.5 mm cancellous screw
Side specific design- available in left and right
Available in both Titanium and Stainless Steel

Profile

Thickness (T) : 2 mm
Width (W) : 16 mm
Hole Spacing (HS) : 16 mm

No. of Holes	CODE - Right
No. of Holes	S.S.	Titanium
3	624.03R	624.03TR
4	624.04R	624.04TR
5	624.05R	624.05TR
6	624.06R	624.06TR
7	624.07R	624.07TR
8	624.08R	624.08TR
9	624.09R	624.09TR
10	624.10R	624.10TR
11	624.11R	624.11TR
