Large Fragment Plating System

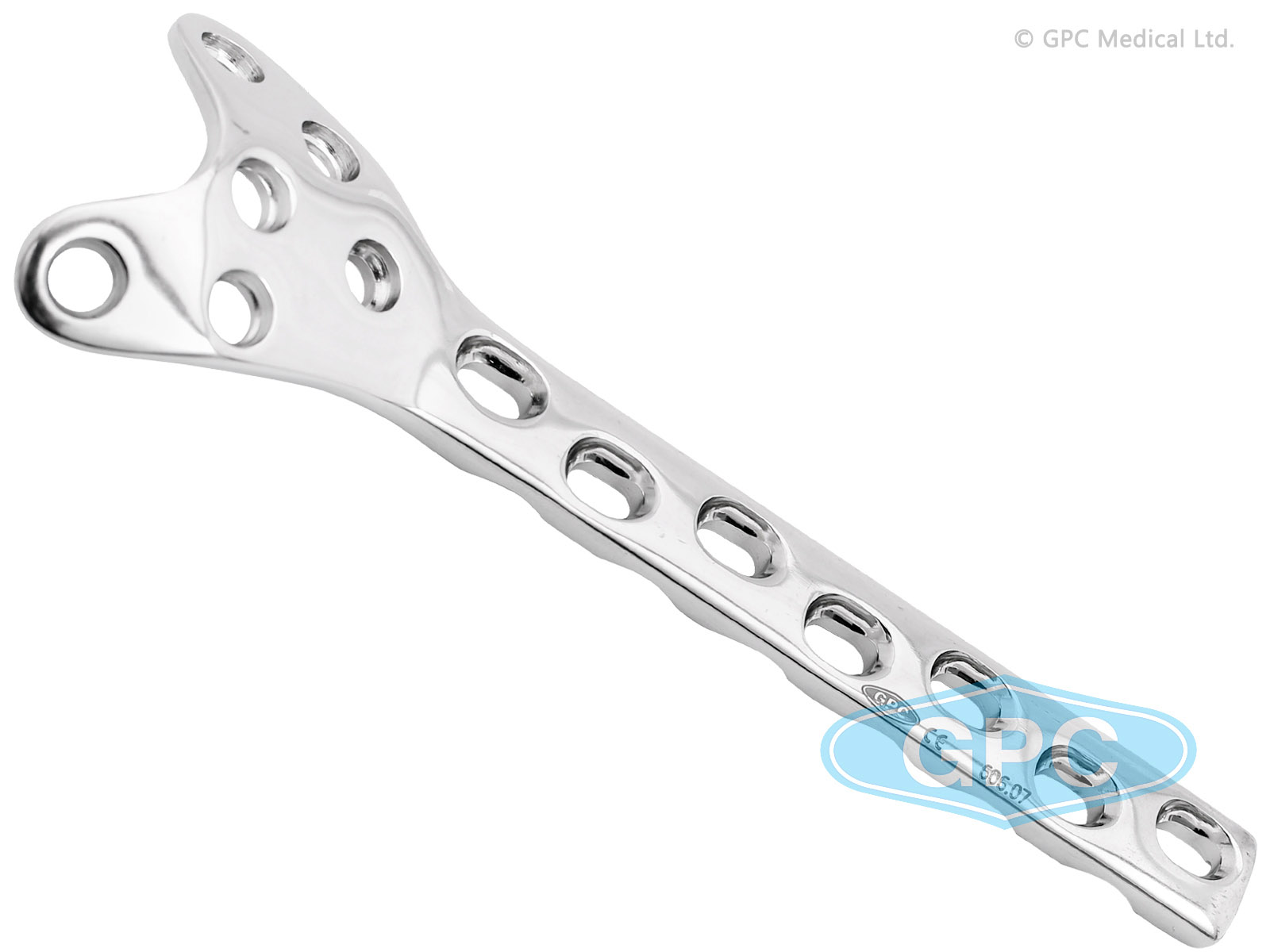

Condylar Buttress Plate Left/Right

Indications:

Intra-articular and extra-articular distal femur fracture
Malunions and nonunions of distal femur fractures
Supracondylar fractures
For severe comminution of lateral femoral condyle
Periprosthetic fractures
In coronal plane fractures of distal femur condyle

Specifications

Features

Broad cloverleaf shaped plate
Designed to buttress the comminuted supracondylar fractures
Designed to contour to the lateral aspect of the distal femur cortex
Especially useful in comminuted distal femur fractures with a coronal shear fracture
Head holes suitable for 6.5 mm cancellous screws
Shaft compression holes ?xed with cortex screws Dia. 4.5 mm
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 5 mm
Width (W): 16 mm
Hole Spacing (HS): 16 mm

No. of Holes	Code - Left		Code - Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
7	606.07L	606.07TL	606.07R	606.07TR
9	606.09L	606.09TL	606.09R	606.09TR
11	606.11L	606.11TL	606.11R	606.11TR
13	606.13L	606.13TL	606.13R	606.13TR
15	606.15L	606.15TL	606.15R	606.15TR
