Large Fragment Plating System

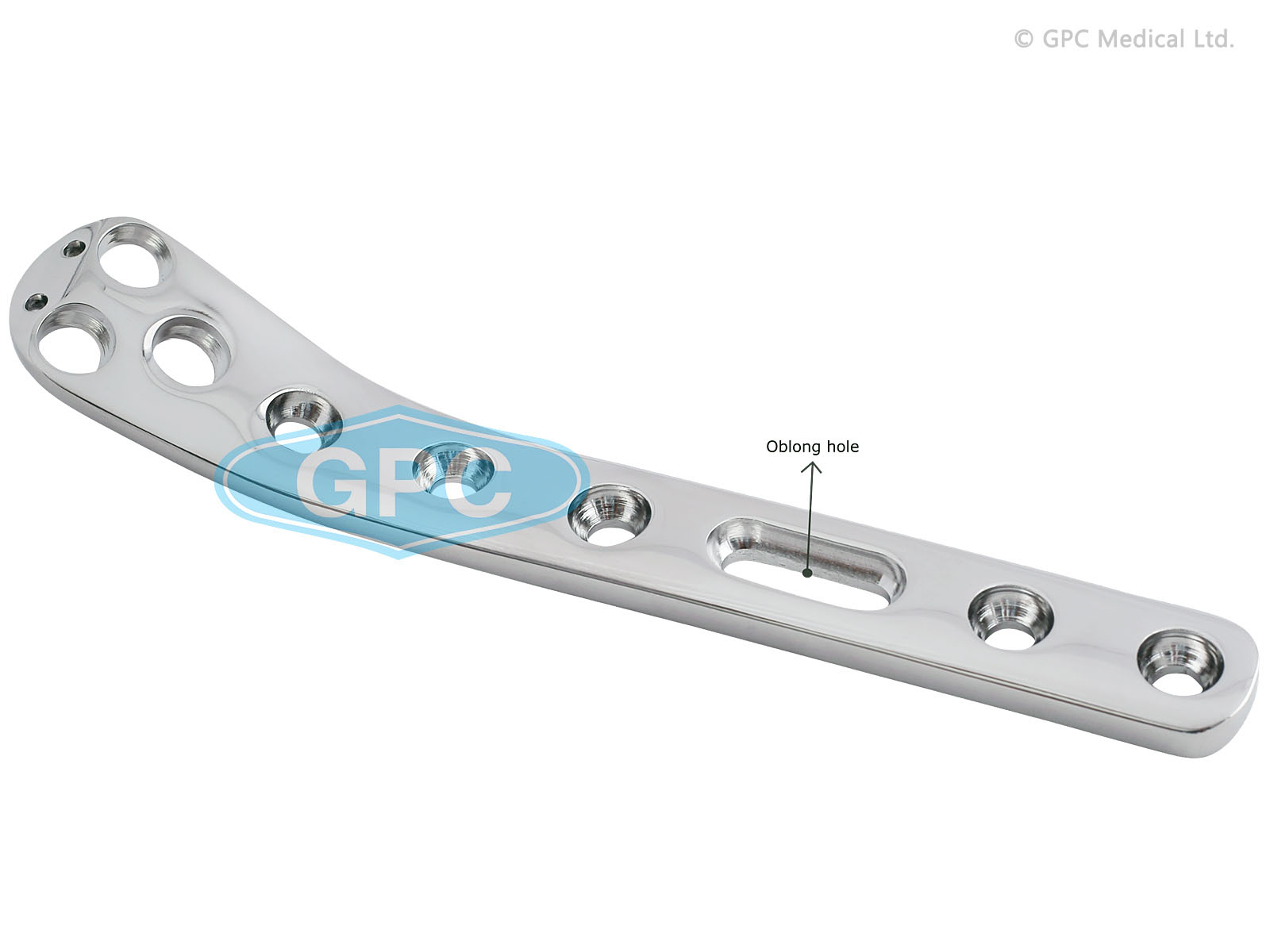

Proximal Femur Bone Plate

Indications:

Unstable Intertrochanteric and subtrochanteric fractures
Basal neck femur fractures

Specifications
Product Video

Features

Low profile to prevent trochanter bursitis
Anatomical plate left and right sided
Oblong hole for optimal plate placement
Head holes suitable for 6.5 mm cancellous screws for fixation into calcar region of neck and head of femur
Shaft holes suitable for 4.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 5.3 mm
Width (W): 18 mm
Hole Spacing (HS): 18 mm

No. of Holes	CODE -For Left		CODE -For Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
5	657.05L	657.05TL	657.05R	657.05TR
6	657.06L	657.06TL	657.06R	657.06TR
7	657.07L	657.07TL	657.07R	657.07TR
8	657.08L	657.08TL	657.08R	657.08TR
9	657.09L	657.09TL	657.09R	657.09TR
10	657.10L	657.10TL	657.10R	657.10TR
11	657.11L	657.11TL	657.11R	657.11TR
12	657.12L	657.12TL	657.12R	657.12TR
13	657.13L	657.13TL	657.13R	657.13TR
