Large Fragment Plating System

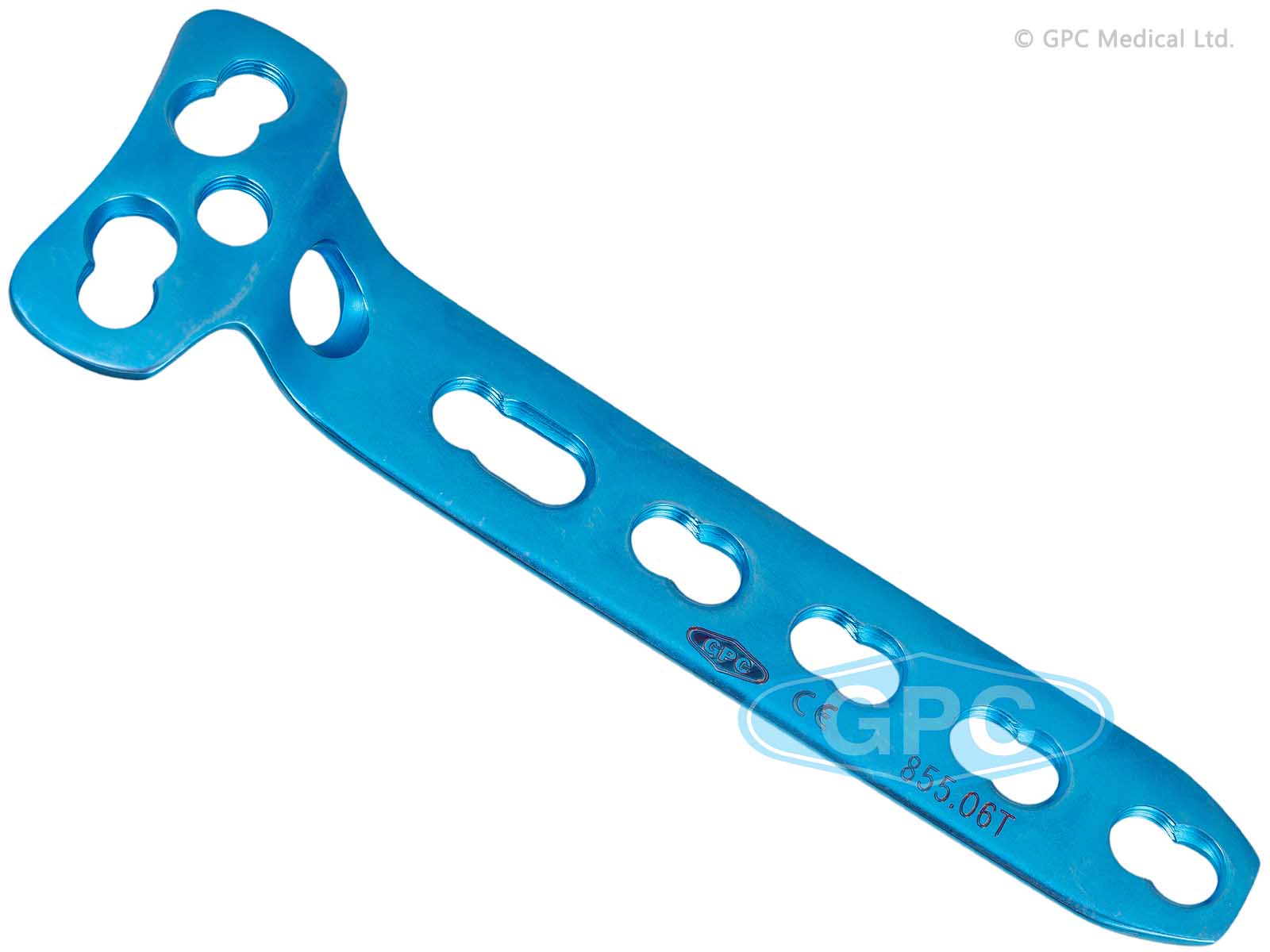

fixLOCK T-Buttress Locking Plate, 4.5mm

Indications:

Metaphyseal fractures of proximal humerus, distal tibia, medial tibial plateau
Posteromedial fragment proximal tibia (most commonly used implant)
Ideal to buttress small metaphyseal fragment with the diaphysis

Specifications

Metaphyseal T-segment with two combination holes for 5.0 mm locking screws or 4.5 mm cortical screws
Low profile construct with minimum implant prominence or soft tissue irritation
Shaft holes for 5.0 mm locking or 4.5 mm cortical screws
Thin plate profile easy to contour & maintain post-fixation avascularity
No undercuts present
Long plates useful in cases of diaphyseal extension of periarticular fractures
Available in both Titanium & Stainless steel

No. of Holes	CODE
No. of Holes	S.S.	Titanium
3	855.03	855.03T
4	855.04	855.04T
5	855.05	855.05T
6	855.06	855.06T
7	855.07	855.07T
8	855.08	855.08T
9	855.09	855.09T
10	855.10	855.10T
11	855.11	855.11T
