Small Fragment Plating System

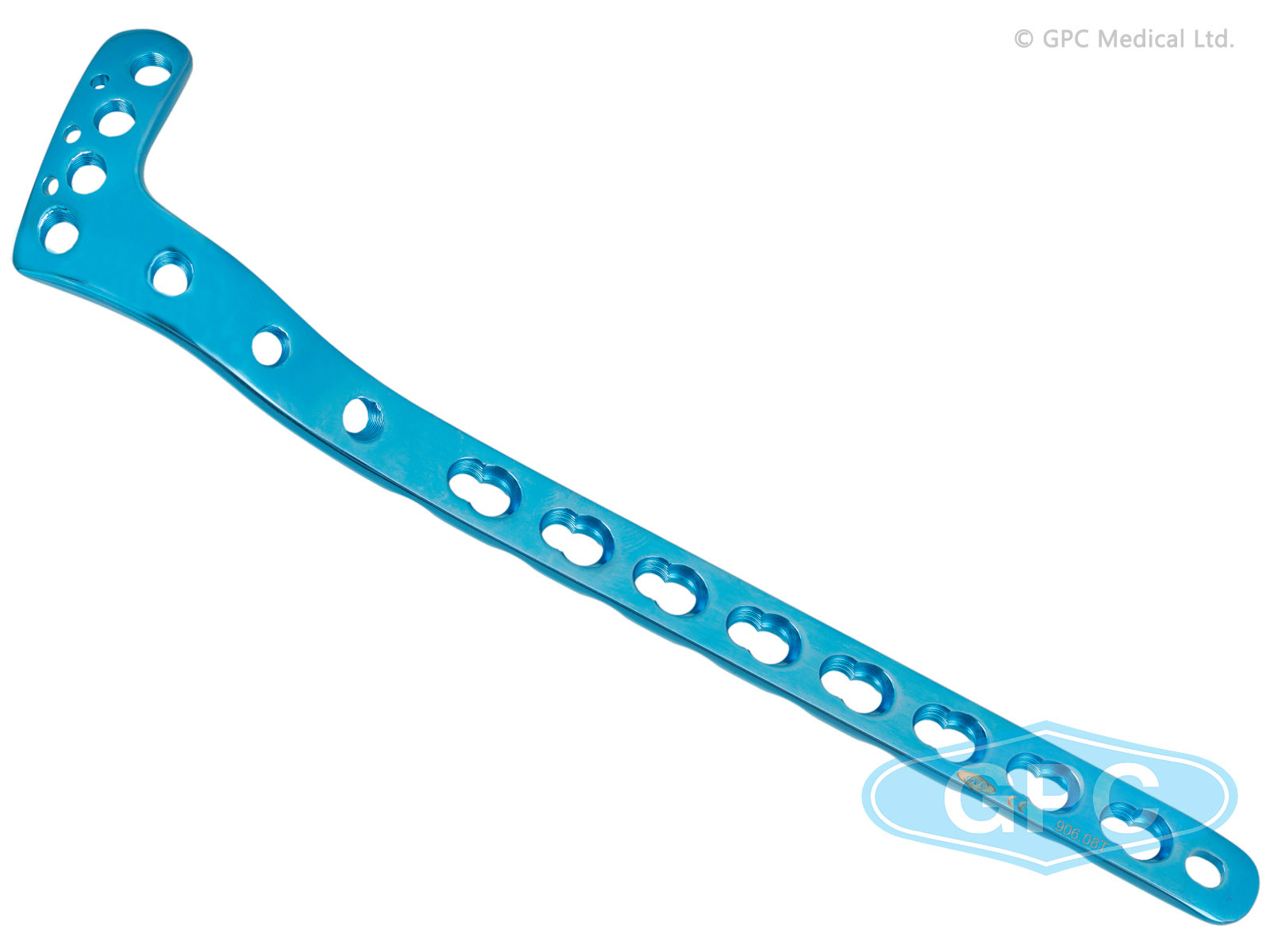

fixLOCK Proximal Tibia Plate, 3.5 mm

Indications:

Split-type fractures of the lateral tibial plateau
Lateral split fractures with associated depressions
Pure central depression fractures
Split or depression fractures of the medial plateau
Bicondylar fractures
Mal-unions and non-unions of the proximal tibia and tibial shaft

Specifications

Anatomically shaped- right or left configured
Fixed angle construct with convergence of proximal screws and the obliquely directed screws
Beveled tip for submuscular insertion with minimal soft tissue stripping
Smaller area of post-fixation avascularity
Long plates are available which are suitable for fracture extending distally into the shaft
Smooth transition from thin proximal segment and thick shaft segment makes the plate auto-contourable. With plate fixed to the proximal segment when first screw used in shaft segment is cortical screw, plate furthers contours according to the patients' bone
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Screw heads are recessed into the plate holes for minimum screw prominence
Available in both Titanium & Stainless steel

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
4	906.04L	906.04R	906.04TL	906.04TR
6	906.06L	906.06R	906.06TL	906.06TR
8	906.08L	906.08R	906.08TL	906.08TR
10	906.10L	906.10R	906.10TL	906.10TR
12	906.12L	906.12R	906.12TL	906.12TR
14	906.14L	906.14R	906.14TL	906.14TR
