Large Fragment Plating System

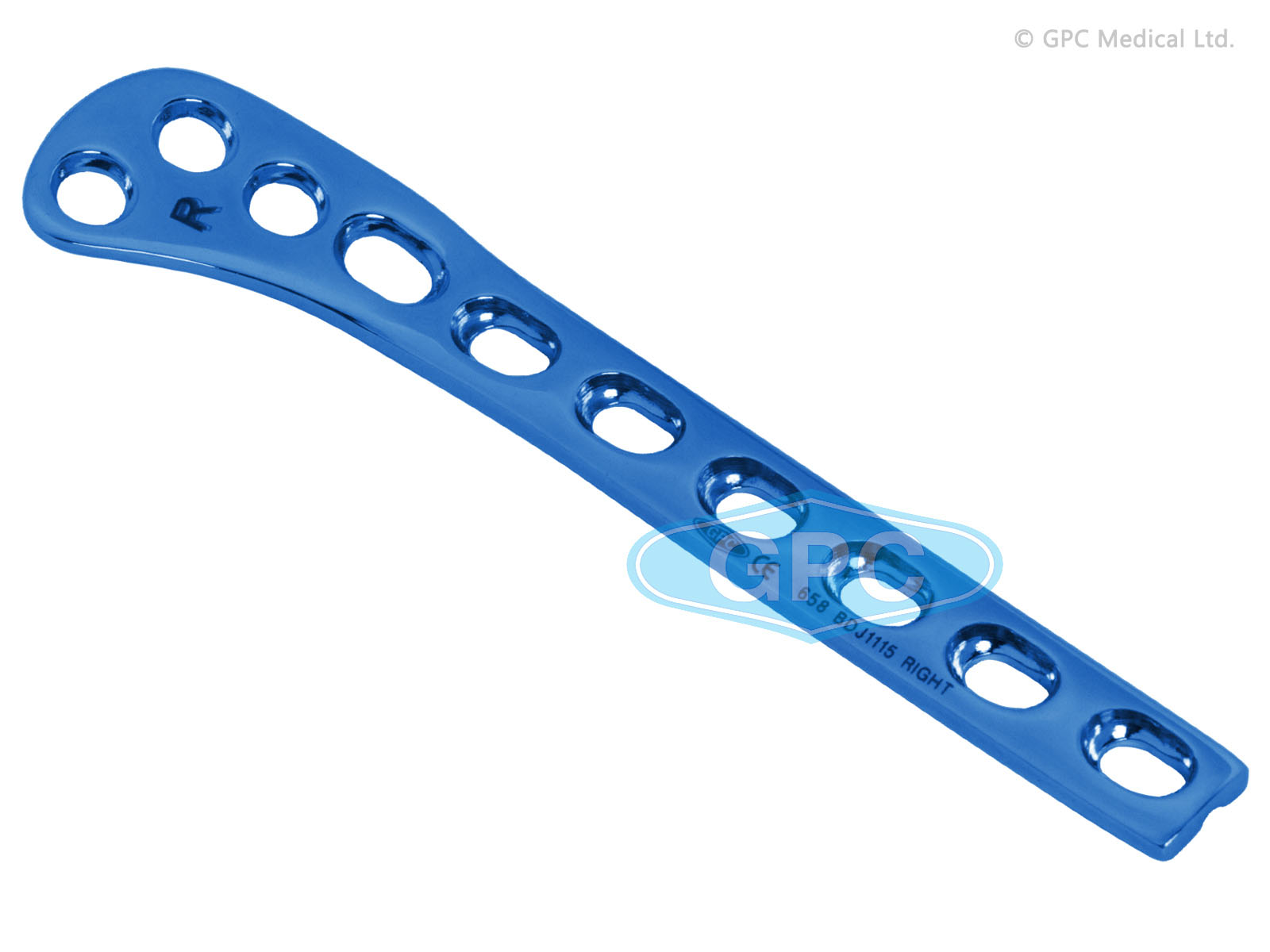

Lateral Tibial Head Buttress Plate

Indications:

Tibial plateau fractures
Proximal third tibia fractures
Non union and malunion of proximal tibia fractures
For the stabilization of fractures of the proximal tibia
Proximal shaft fractures
Intra articular and periprosthestic fractures

Specifications

Features

Low profile plate
Anatomically contoured
Allows dynamic compression of fracture fragment
Side specific, available separately for left and right leg
Head holes suitable for 6.5 mm cancellous screws and shaft holes accommodate 4.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 3.8 mm
Width (W): 14 mm
Hole Spacing (HS): 16 mm

Sizes Available

No. of Holes	CODE - Left		CODE -Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
5	658.05L	658.05TL	658.05R	658.05TR
7	658.07L	658.07TL	658.07R	658.07TR
9	658.09L	658.09TL	658.09R	658.09TR
11	658.11L	658.11TL	658.11R	658.11TR
13	658.13L	658.13TL	658.13R	658.13TR
