Small Fragment Plating System

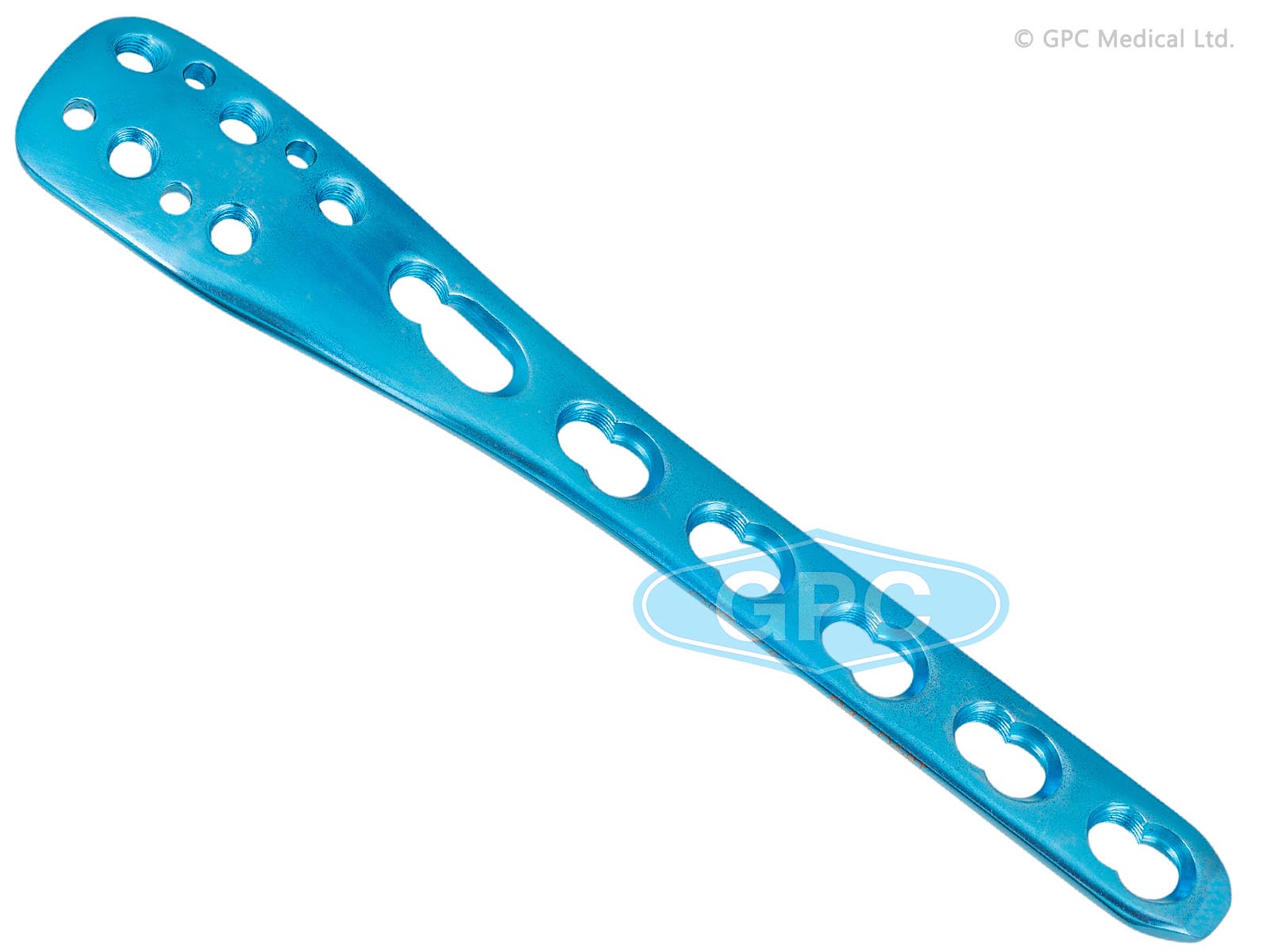

fixLOCK Distal Lateral Fibula Plate, 2.7/3.5 mm

Indications:

Fracture metaphysis or diaphysis distal fibula, particularly in osteopenic bones
Osteotomies distal fibula
Non-union distal fibula

Specifications

Anatomically shaped- right or left configured
The plates are pre-shaped to match the anatomy of distal fibula, laterally
Tapered tip for submuscular insertion with minimal soft tissue stripping
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Screw-heads are recessed into the plate holes for minimum screw prominence
Available in both Titanium & Stainless steel

Sizes Available

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
3	942.03L	942.03R	942.03TL	942.03TR
5	942.05L	942.05R	942.05TL	942.05TR
7	942.07L	942.07R	942.07TL	942.07TR
9	942.09L	942.09R	942.09TL	942.09TR
11	942.11L	942.11R	942.11TL	942.11TR
