Large Fragment Plating System

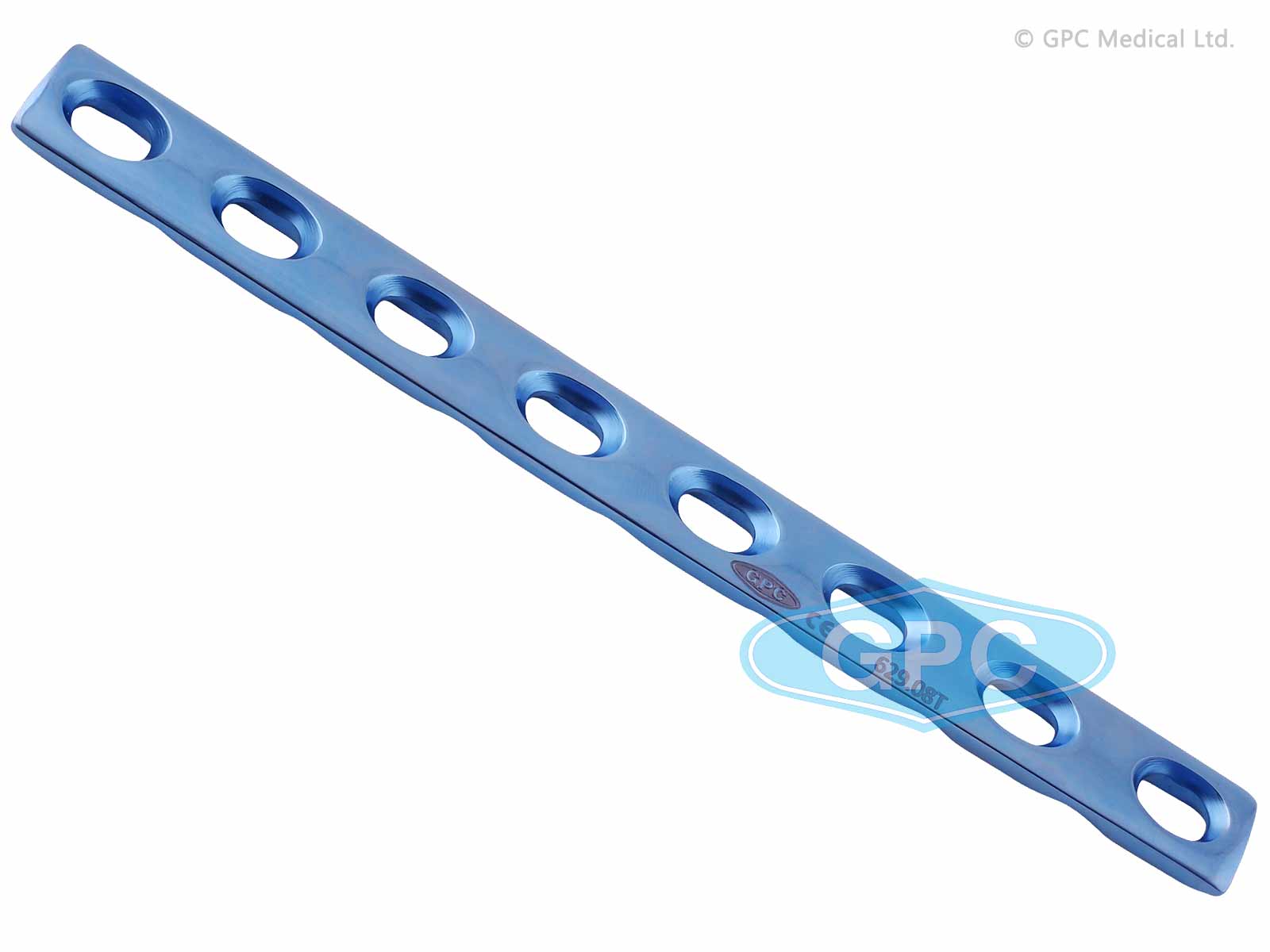

Limited Contact Dynamic Compression Plate (LC-DCP) - Narrow

Indications:

Tibia Shaft and humerus shaft fractures
Malunions and non-union of tibia and humerus

Specifications
Product Video

Features

Allows dynamic compression of fracture fragments
Grooved under surface preserves the vascularity of the bone resulting in relative improvement of cortical perfusion
Rigid fixation
Can be applied in various modes - compression, protection, buttress, tension band and bridging mode
Fixation with 4.5 mm cortex and 6.5 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 4.6 mm
Width (W): 13.5 mm
Hole Spacing (HS): 18 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	629.04	629.04T
5	629.05	629.05T
6	629.06	629.06T
7	629.07	629.07T
8	629.08	629.08T
9	629.09	629.09T
10	629.10	629.10T
11	629.11	629.11T
12	629.12	629.12T
13	629.13	629.13T
14	629.14	629.14T
15	629.15	629.15T
16	629.16	629.16T

Fixation with 4.5 and 6.5mm screws.
Undercut: For reduced vascular damage.
The end holes can be used for cancellous bone screw.
The LC-DCP holes allow compression in both directions of the longitudinal axis.
Indication: As a neutralisation and tension band plate on the tibia (not intended for the femur)
