Features
- Low profile plate
- Elongated hole for loose temporary fixation with cortex screws for optimal plate placement
- Can be applied as neutralization, buttress or tension band plate
- Head holes suitable for 6.5 mm cancellous screws and shaft holes fixed with 4.5 mm cortex screws
- Available in both Titanium and Stainless Steel
Profile
- Thickness (T): 2 mm
- Width (W) : 16 mm
- Hole Spacing (HS) : 16 mm
|
No. of Holes |
CODE |
|
S.S. |
Titanium
|
|
3 |
644.03
|
644.03T
|
|
4 |
644.04
|
644.04T
|
|
5 |
644.05
|
644.05T
|
|
6 |
644.06
|
644.06T
|
|
7 |
644.07
|
644.07T
|
|
8 |
644.08
|
644.08T
|
|
9 |
644.09
|
644.09T
|
|
10 |
644.10
|
644.10T
|
|
11 |
644.11
|
644.11T
|
| 12 |
644.12 |
644.12 |
| 14 |
644.14 |
644.14 |

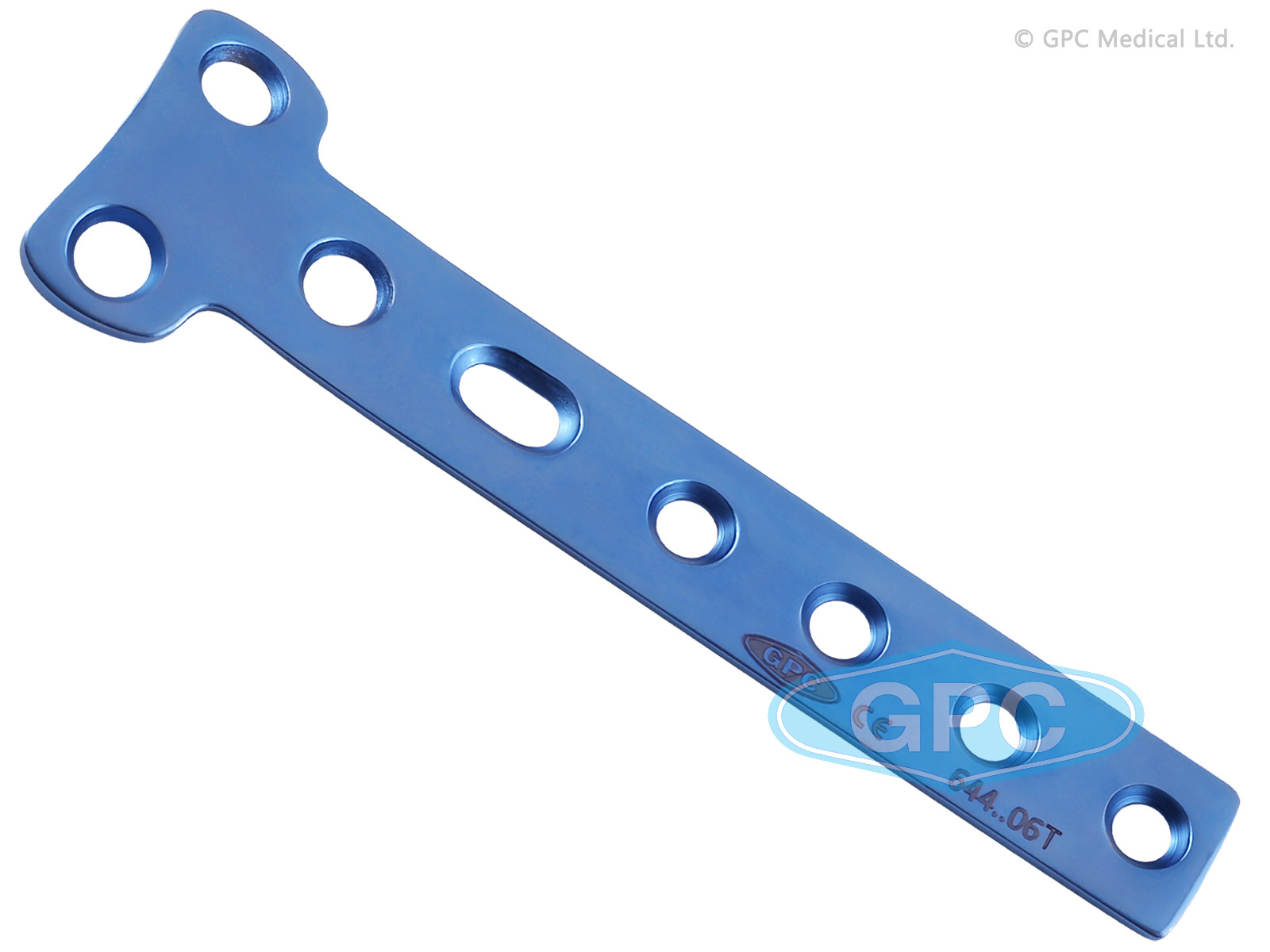

T Plates for Humeral and Tibial head.
Shaft with round profile.
Fixation with 4.5 & 6.5mm screw
