Large Fragment Plating System

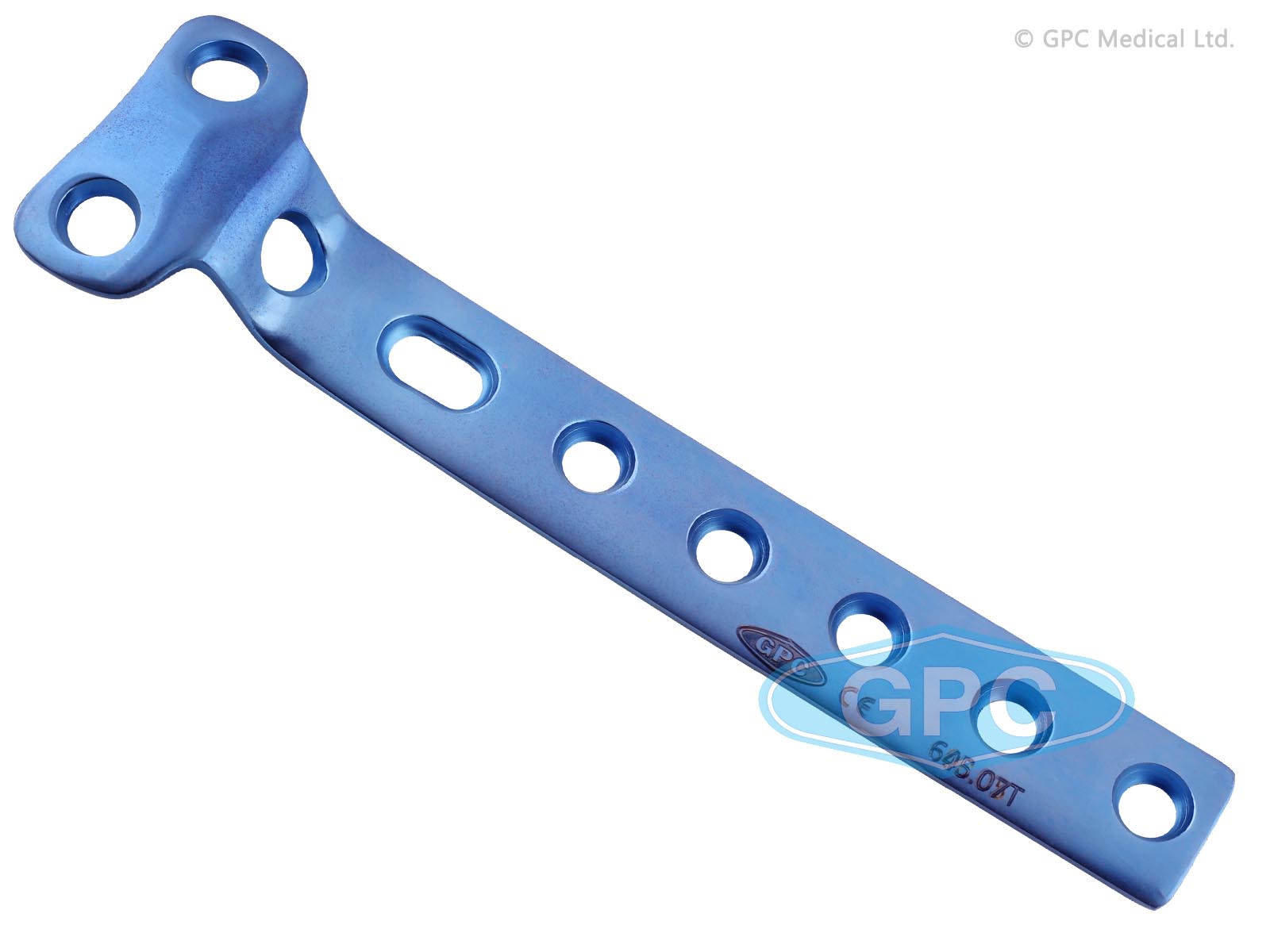

T Buttress Plate for 4.5mm

Indications:

Proximal tibia fractures especially medial tibial plateau
Used with tension device for fracture head of humerus

Specifications
Product Video

Features

Supports the cortex of metaphysis from displacing by applying axial compression from a precontoured plate
Allows compression buttress force
Allows compression of periarticular fractures
First screw to be inserted into the oblong hole for optimal placement of the plate
Double bend to buttress the fracture
Head holes suitable for 6.5 mm cancellous screws and shaft holes ?xed with 4.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T) : 2 mm
Width (W) : 16 mm
Hole Spacing (HS) : 16 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	645.04	645.04T
5	645.05	645.05T
6	645.06	645.06T
7	645.07	645.07T
8	645.08	645.08T
9	645.09	645.09T
10	645.10	645.10T
11	645.11	645.11T
