Large Fragment Plating System

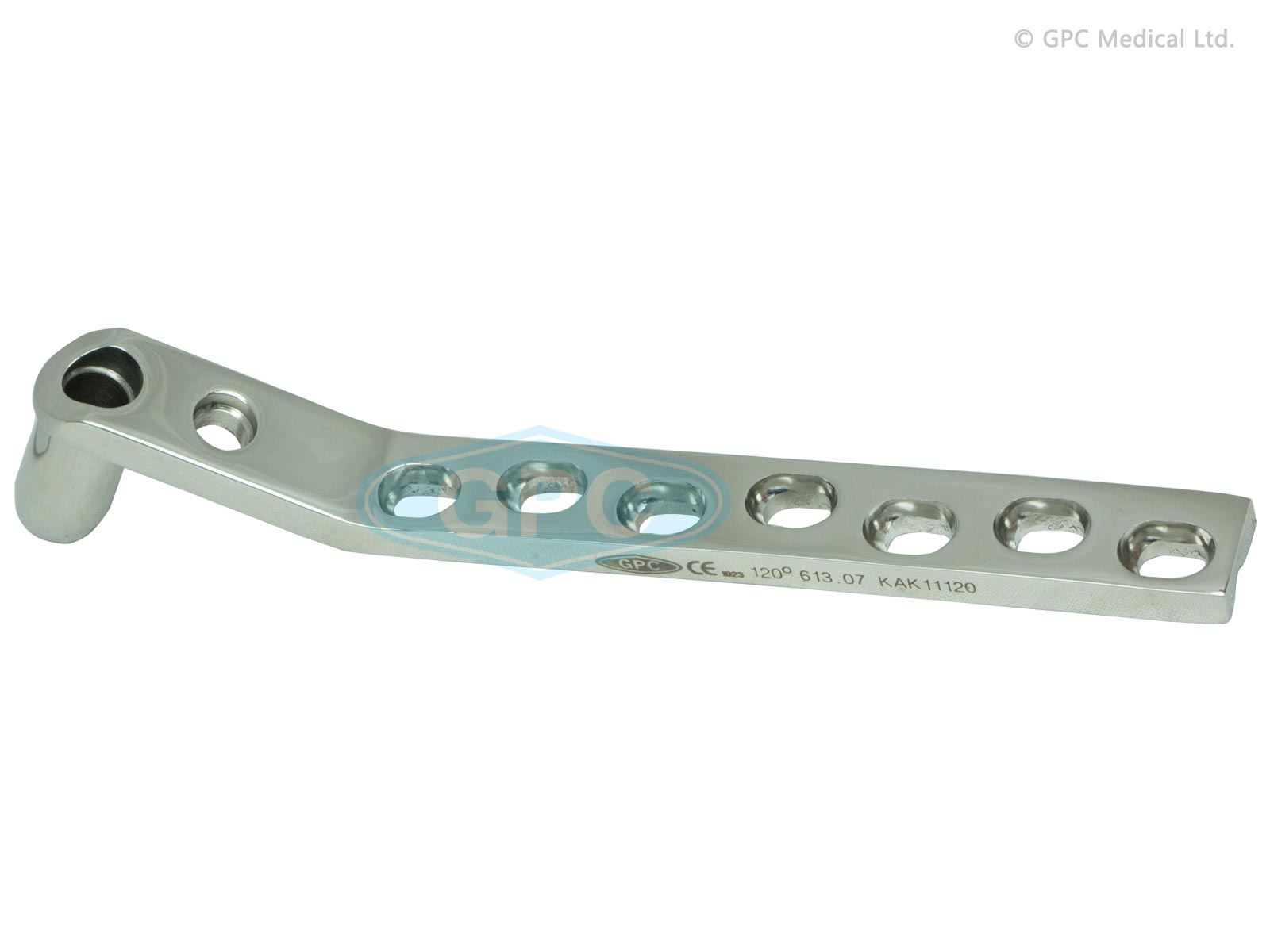

DHS Barrel Double Angled Plate DCP Hole - 120°

Specifications

DHS Barrel Double Angled Plate DCP Hole - 120°

Profile

Thickness                          6mm
Width                                 16mm
Hole Spacing                      16mm and 25mm
Barrel Length 38mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	613.04	613.04T
5	613.05	613.05T
6	613.06	613.06T
7	613.07	613.07T
8	613.08	613.08T
