Large Fragment Plating System

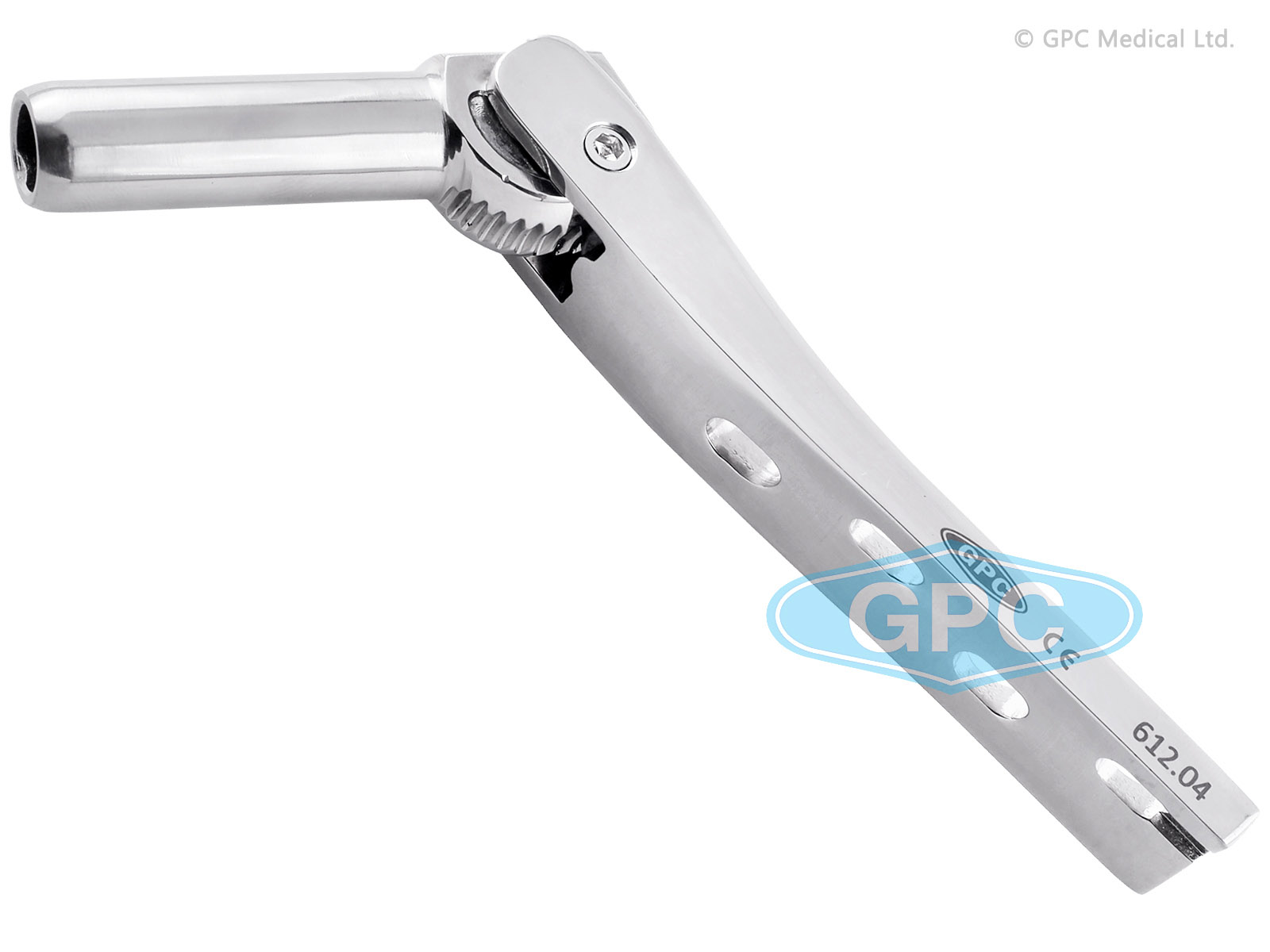

DHS Barrel Plate DCP Holes - Variable Angle

Indications:

Pertrochanteric femoral fractures
Intertrochanteric reversed fractures
Subtrochanteric fractures
Basilar neck femur fracture
Non-union neck femur
Subtrochanteric fractures

Specifications

Features

The required valgisation angle can be adjusted to the individual patient’s needs by means of worm gear
Designed to stabilize proximal femur fractures
Dynamic adjustable angle
Can be inserted with maximum precision
Optimal adaptation of the plate to the bone
One-barrel plate replaces up to 6 fixed angle plates which cuts stock keeping costs significantly
Universal application
Used with DHS lag screw Dia.12.5 mm and compression screw of length 36 mm
Shaft compression holes fixed with cortex screws Dia. 4.5 mm

Profile

Thickness (T): 5.8 mm
Width (W): 19 mm
Hole Spacing (HS): 16 mm

No. of Holes	S.S.
4	612.04
5	612.05
6	612.06
7	612.07
8	612.08
9	612.09
10	612.10
12	612.12
14	612.14
16	612.16
18	612.18
20	612.20
22	612.22
