Small Fragment Plating System

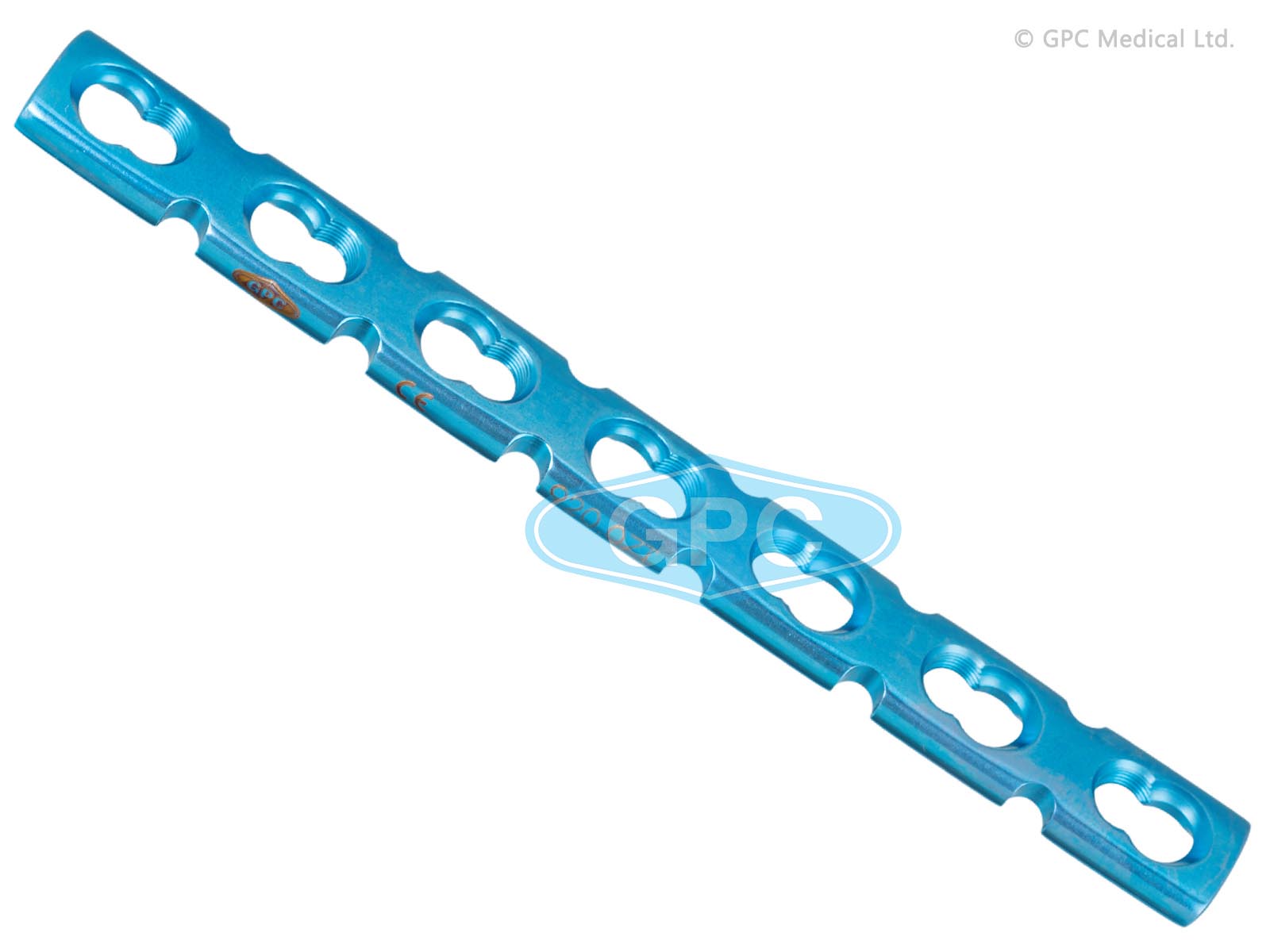

fixLOCK Reconstruction Plate, 3.5 mm

Indications:

Fracture clavicle, scapula, olecranon, humerus, radius, ulna, pelvis, distal tibia, fibula, particularly in osteopenic bones

Specifications

Easily contoured and moulded according to the surgeons requirement
Low profile construct for minimum implant prominence
Uniform stiffness of all segments, prolonging fatigue life of the implant.
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Available in both Titanium & Stainless steel

No. of Holes	Length (mm)	CODE
No. of Holes	Length (mm)	S.S.	Titanium
4	58	920.04	920.04T
5	70	920.05	920.05T
6	82	920.06	920.06T
7	94	920.07	920.07T
8	106	920.08	920.08T
9	118	920.09	920.09T
10	130	920.10	920.10T
11	142	920.11	920.11T
12	154	920.12	920.12T
13	166	920.13	920.13T
14	178	920.14	920.14T
15	190	920.15	920.15T
16	190	920.16	920.16T
