Large Fragment Plating System

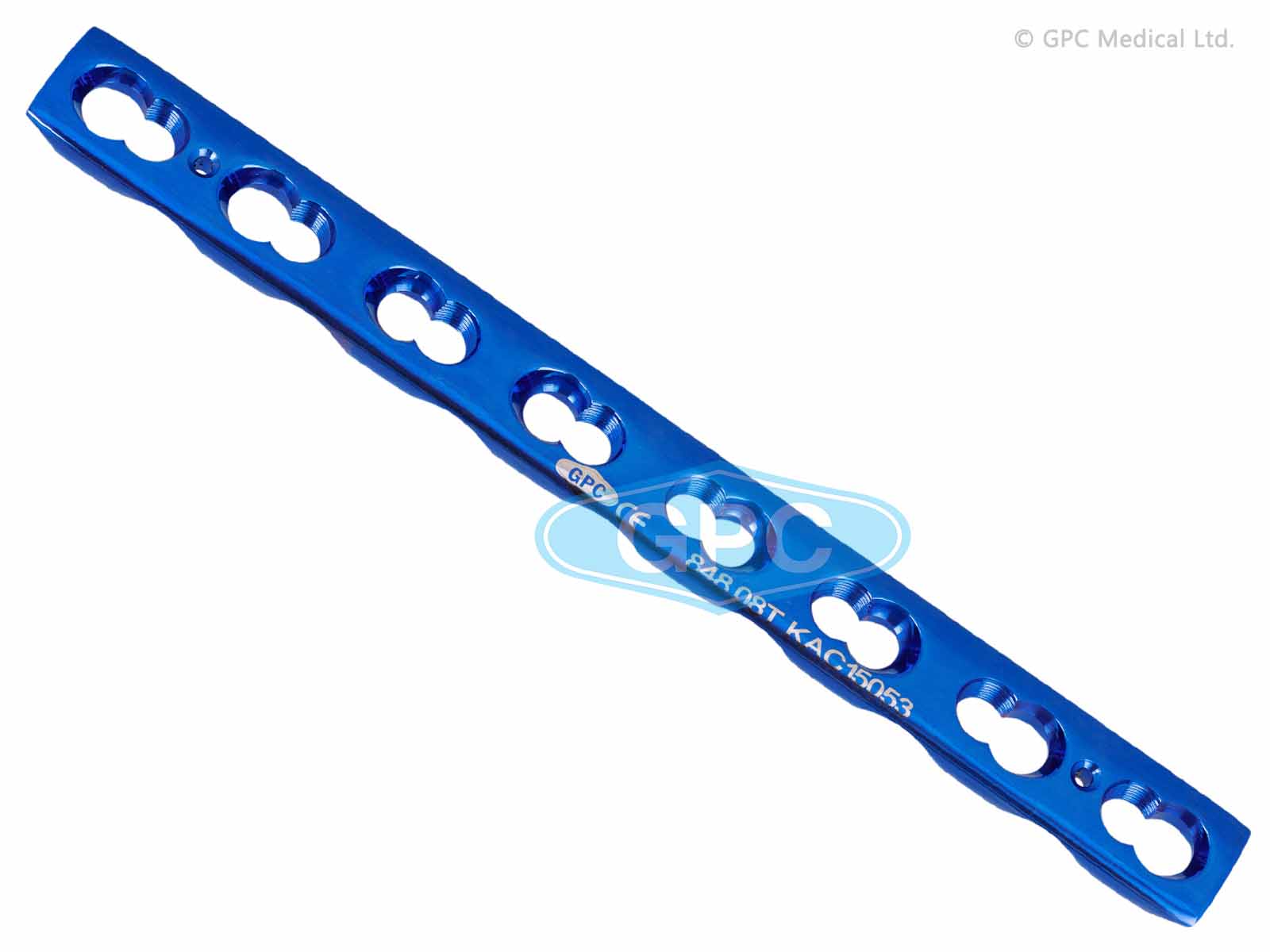

fixLOCK Narrow Plate, 4.5 mm

Indications:

Periprosthetic fractures
Comminuted fractures
Fractures in osteopenic bone
Non-unions
Mal-unions

Specifications

Used over the tensile surface of bones to work on tension band principle
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Dynamic compression unit offers 2 mm of axial compression
Available in both Titanium & Stainless steel

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4 holes	848.04	848.04T
5 holes	848.05	848.05T
6 holes	848.06	848.06T
7 holes	848.07	848.07T
8 holes	848.08	848.08T
9 holes	848.09	848.09T
10 holes	848.10	848.10T
11 holes	848.11	848.11T
12 holes	848.12	848.12T
14 holes	848.14	848.14T
16 holes	848.16	848.16T
