Large Fragment Plating System

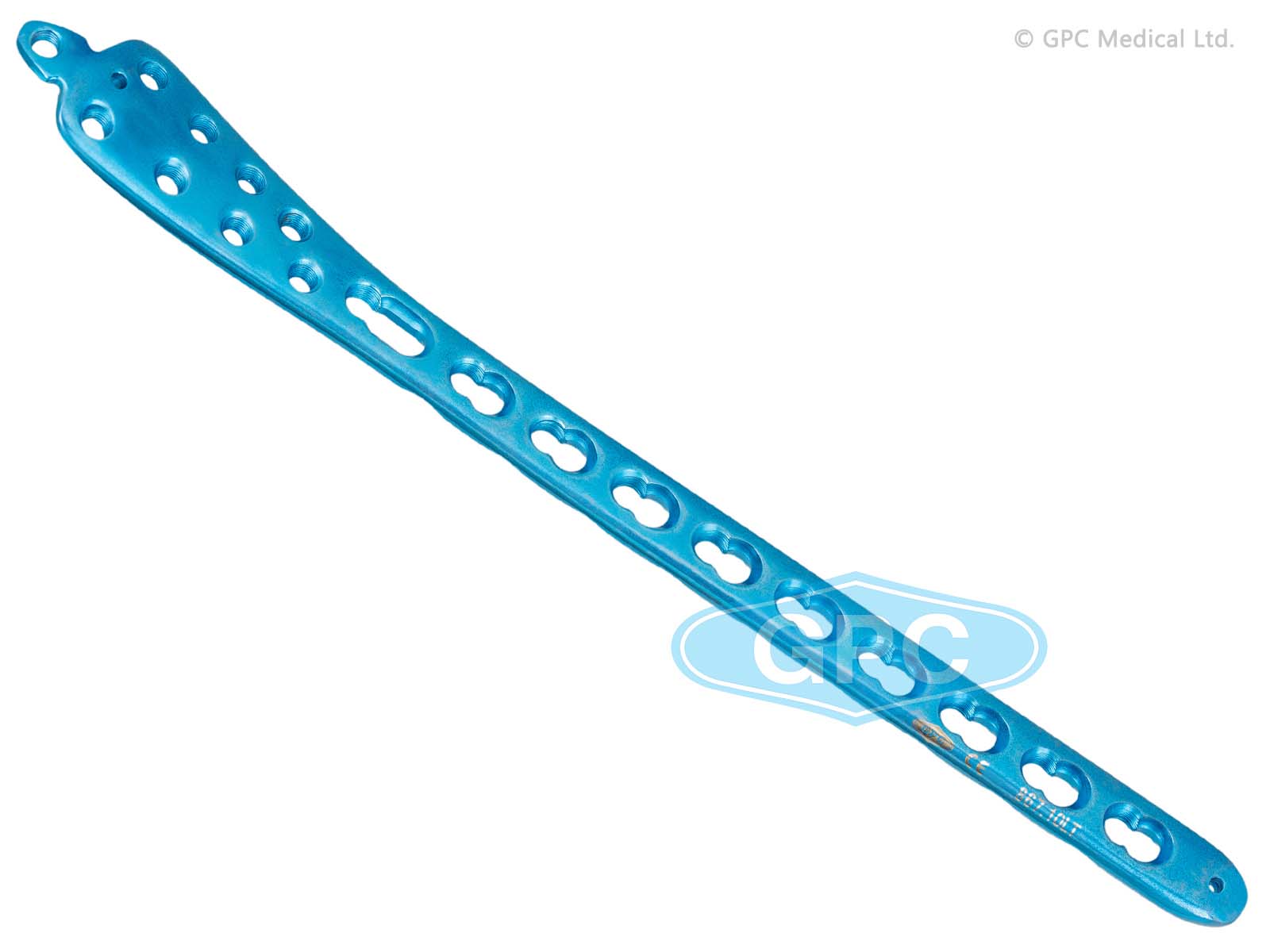

fixLOCK Medial Distal Tibia End Plate with Tab, 3.5 mm

Indications:

Complex intra & extra articular fracture distal tibia
Osteotomy around distal tibia
Management of osteoporotic fracture
Fracture non-union distal end tibia

Specifications
Product Video

Anatomically contoured for right & left tibia
Low profile construct with minimum implant prominence or soft tissue irritation
Distal tab for optional medial malleolus accept 3.5 mm locking screws
Eight distal locking holes in the head of the plate for 3.5 mm locking screw
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offer optimum fixation regardless of bone density
Screw heads are recessed into the plate holes for minimum screw prominence
Available in both Titanium & Stainless steel

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
4	867.04L	867.04R	867.04TL	867.04TR
6	867.06L	867.06R	867.06TL	867.06TR
8	867.08L	867.08R	867.08TL	867.08TR
10	867.10L	867.10R	867.10TL	867.10TR
12	867.12L	867.12R	867.12TL	867.12TR
14	867.14L	867.14R	867.14TL	867.14TR
16	867.16L	867.16R	867.16TL	867.16TR
18	867.18L	867.18R	867.18TL	867.18TR
