Small Fragment Plating System

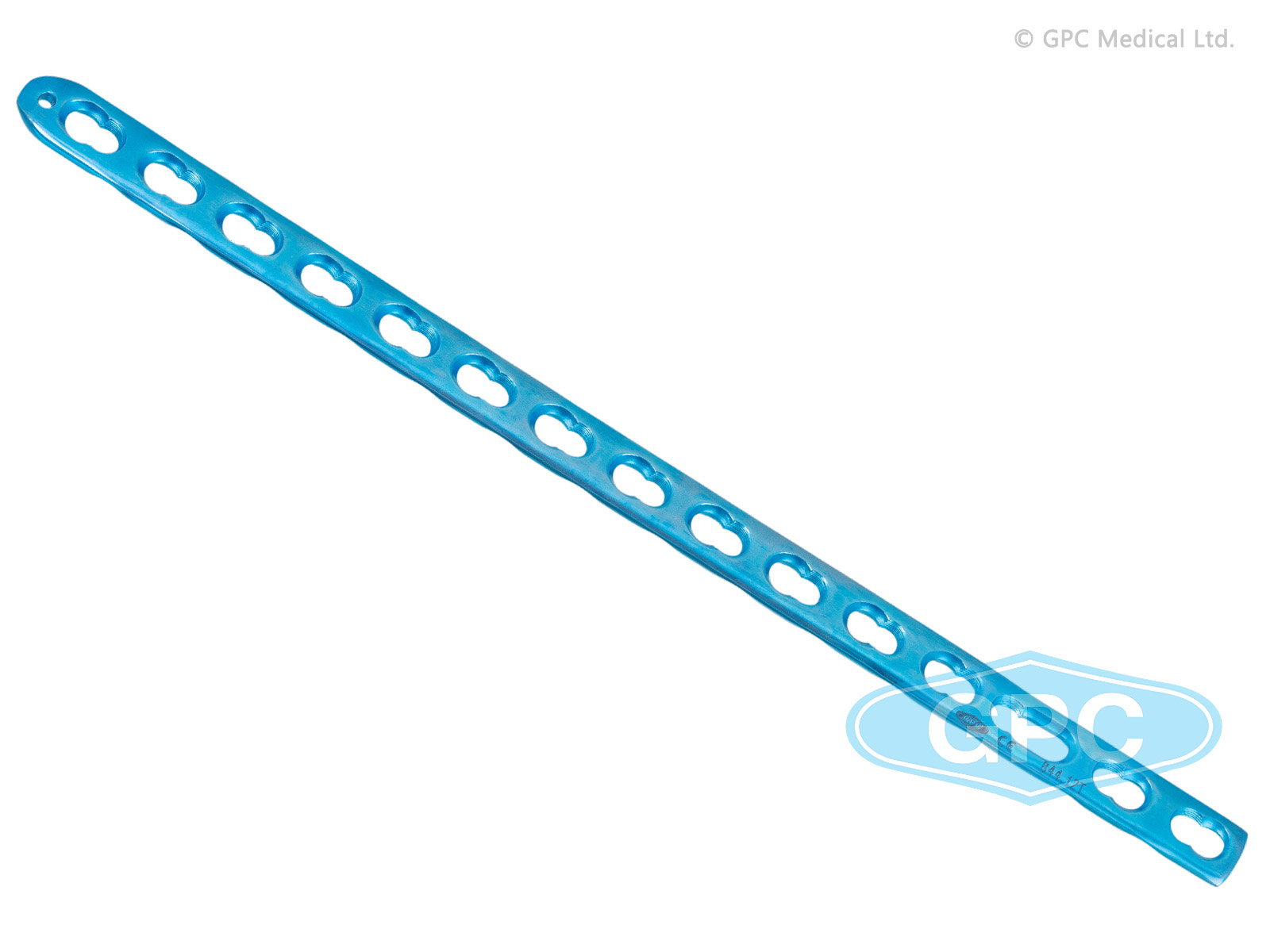

fixLOCK Metaphyseal Plate, 3.5mm

Indications:

Extraarticular fracture of metaphysis that extend into the shaft
Fracture distal tibia
Fracture distal humerus

Specifications

Thinner profile on one end allows contouring to address characteristics of metaphysis
Tapered tip for ease of insertion
Suture hole at the end of the plate for temporary fixation
Elongated hole allows longitudinal adjustment of the plate, prior to insertion & tightening of screws
Smooth transition from thin metaphyseal segment to thicker shaft segment
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
LC undercuts for limited contact to the bone
Available in both Titanium & Stainless steel

Sizes Available

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	843.05	843.05T
7	843.07	843.07T
8	843.08	843.08T
9	843.09	843.09T
10	843.10	843.10T
11	843.11	843.11T
12	843.12	843.12T
14	843.14	843.14T
16	843.16	843.16T
18	843.18	843.18T
20	843.20	843.20T
22	843.22	843.22T
24	843.24	843.24T
