Large Fragment Plating System

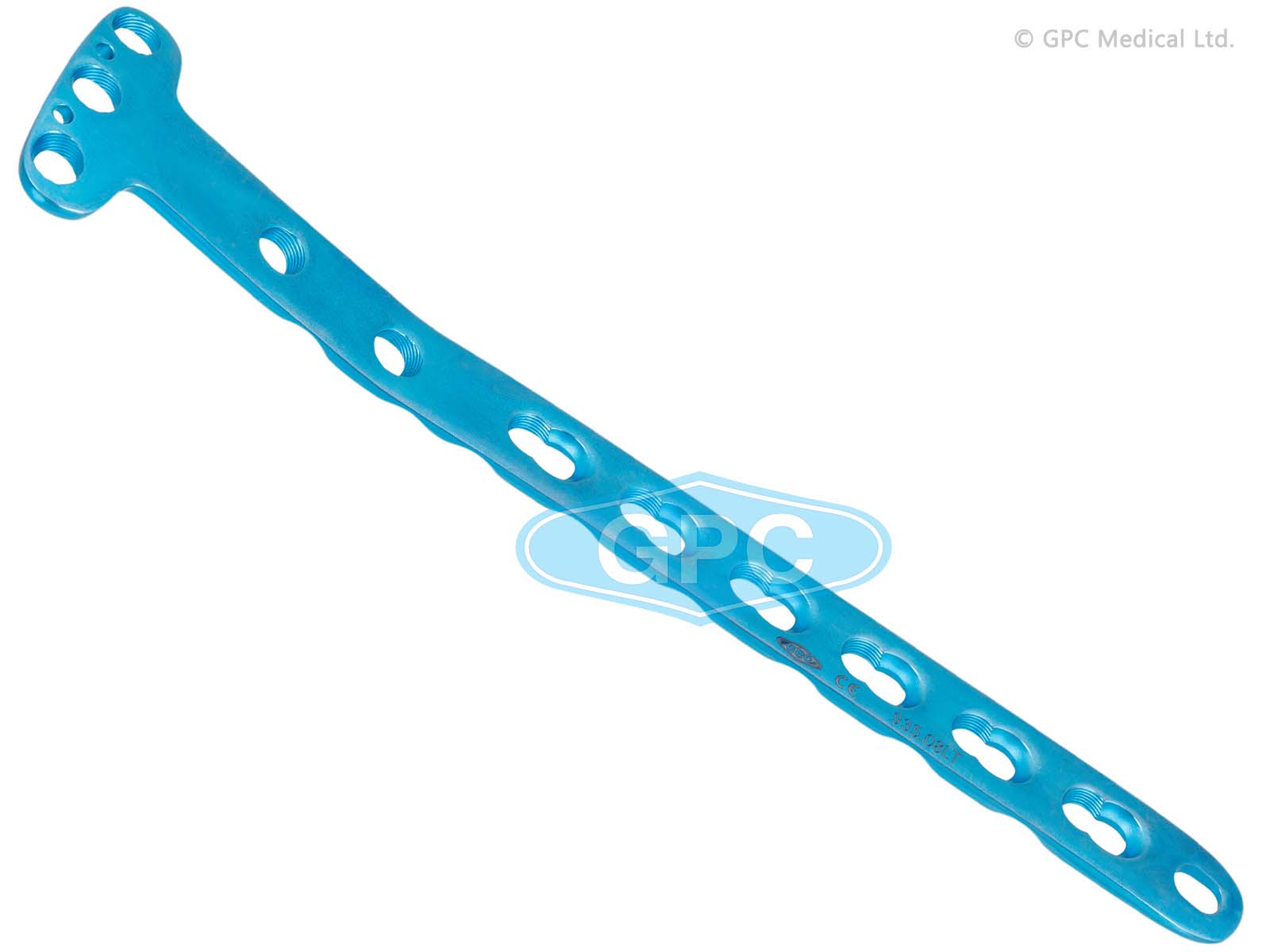

fixLOCK Medial Proximal Tibia Plate, 4.5 mm

Indications:

Intended to buttress metaphyseal fracture of the medial tibial plateau
Split-type fractures of the medial tibial plateau
Medial split fractures with associated depressions
Segmental fractures of the proximal tibia
Non-unions & mal-unions of medial proximal tibia & tibia shaft
Opening & closing wedge tibial osteotomy

Specifications

Anatomically shaped- right or left configured
Beveled tip for submuscular insertion with minimal soft tissue stripping
The screw hole pattern is such that it allows to buttress the tibial plateau & maintain reduction of the articular surface, simultaneously
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Available in both Titanium & Stainless steel

Sizes Available

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
4	935.04L	935.04R	935.04TL	935.04TR
6	935.06L	935.06R	935.06TL	935.06TR
8	935.08L	935.08R	935.08TL	935.08TR
10	935.10L	935.10R	935.10TL	935.10TR
12	935.12L	935.12R	935.12TL	935.12TR
14	935.14L	935.14R	935.14TL	935.14TR
