Small Fragment Plating System

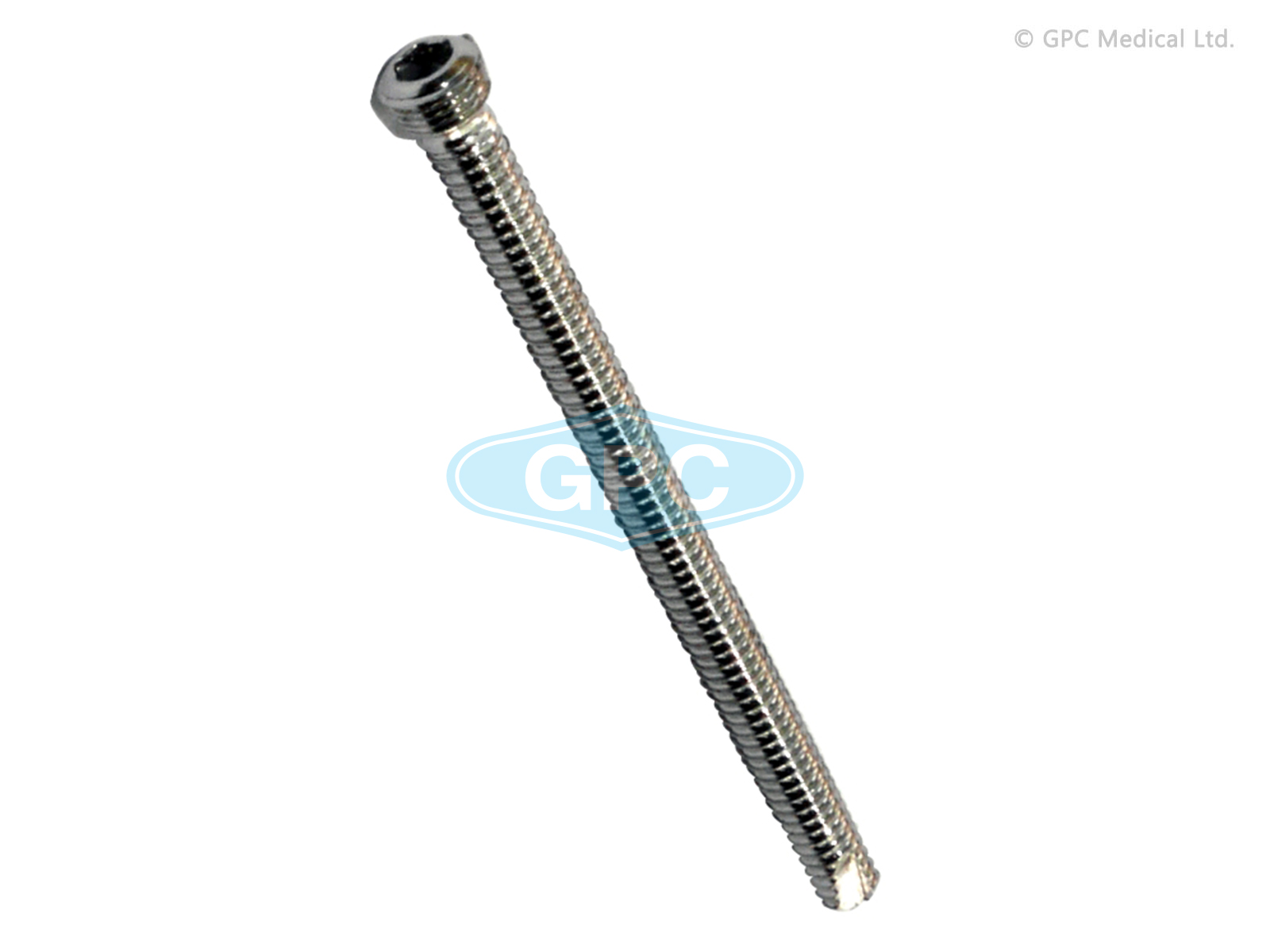

fixLOCK Self-Tapping Screw 2.4mm

Specifications

Thread dia.	2.7 mm
Head dia.	3.5 mm
Core dia.	2.0 mm
Lengths	6.0 - 50.0 mm
Drill bit used	2.0 mm

CODE		Length (mm)
S.S.	Titanium	Length (mm)
770.06	770.06T	6 mm
770.08	770.08T	8 mm
770.10	770.10T	10 mm
770.12	770.12T	12 mm
770.14	770.14T	14 mm
770.16	770.16T	16 mm
770.18	770.18T	18 mm
770.20	770.20T	20 mm
770.22	770.22T	22 mm
770.24	770.24T	24 mm
770.26	770.26T	26 mm
770.28	770.28T	28 mm
770.30	770.30T	30 mm
770.32	770.32T	32 mm
770.34	770.34T	34 mm
770.36	770.36T	36 mm
770.38	770.38T	38 mm
770.40	770.40T	40 mm
