Large Fragment Plating System

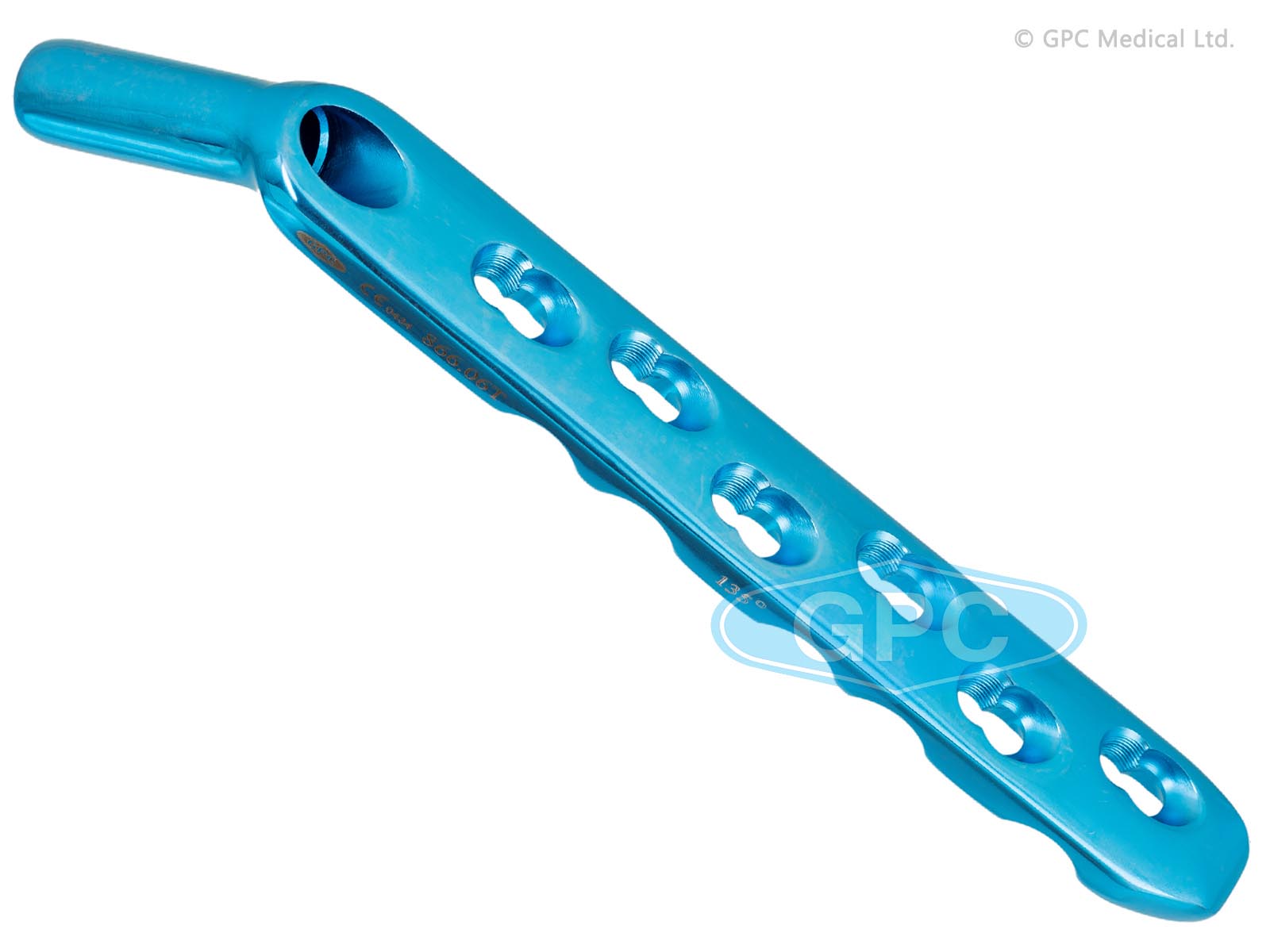

fixLOCK DHS Plate, 4.5 mm

Indications:

Intertrochanteric fracture
Per-trochanteric fracture
Basal neck fracture (used along with de-rotation screw)
Intertrochanteric fracture with fracture shaft femur
Sub-trochanteric fracture

Specifications

Available in barrel angle 125° to 150°, with 135° being the most common angle
The combination of conventional and locking screws offers optimum fixation regardless of bone density
With the use of 135° barrel plate the posteromedial opening is less and screw placement in the center position of the femoral head is comfortable
Locking screws to achieve adequate fixation in elderly
Used along with bone cement for augmented DHS procedure
Long plate construct with 13 holes available for ipsilateral fracture shaft femur
Available in both Titanium & Stainless steel

No. of Holes	Code
No. of Holes	Stainless Steel
	125°	130°	135°	140°	145°	150°
2	866.125.02	866.130.02	866.135.02	866.140.02	866.145.02	866.150.02
3	866.125.03	866.130.03	866.135.03	866.140.03	866.145.03	866.150.03
4	866.125.04	866.130.04	866.135.04	866.140.04	866.145.04	866.150.04
5	866.125.05	866.130.05	866.135.05	866.140.05	866.145.05	866.150.05
6	866.125.06	866.130.06	866.135.06	866.140.06	866.145.06	866.150.06
7	866.125.07	866.130.07	866.135.07	866.140.07	866.145.07	866.150.07
8	866.125.08	866.130.08	866.135.08	866.140.08	866.145.08	866.150.08
9	866.125.09	866.130.09	866.135.09	866.140.09	866.145.09	866.150.09
10	866.125.10	866.130.10	866.135.10	866.140.10	866.145.10	866.150.10
12	866.125.12	866.130.12	866.135.12	866.140.12	866.145.12	866.150.12
14	866.125.14	866.130.14	866.135.14	866.140.14	866.145.14	866.150.14
16	866.125.16	866.130.16	866.135.16	866.140.16	866.145.16	866.150.16
18	866.125.18	866.130.18	866.135.18	866.140.18	866.145.18	866.150.18
20	866.125.20	866.130.20	866.135.20	866.140.20	866.145.20	866.150.20

For Titanium, please afx “T” after above code number
