Intramedullary Nailing System

Femoral Interlocking Nails

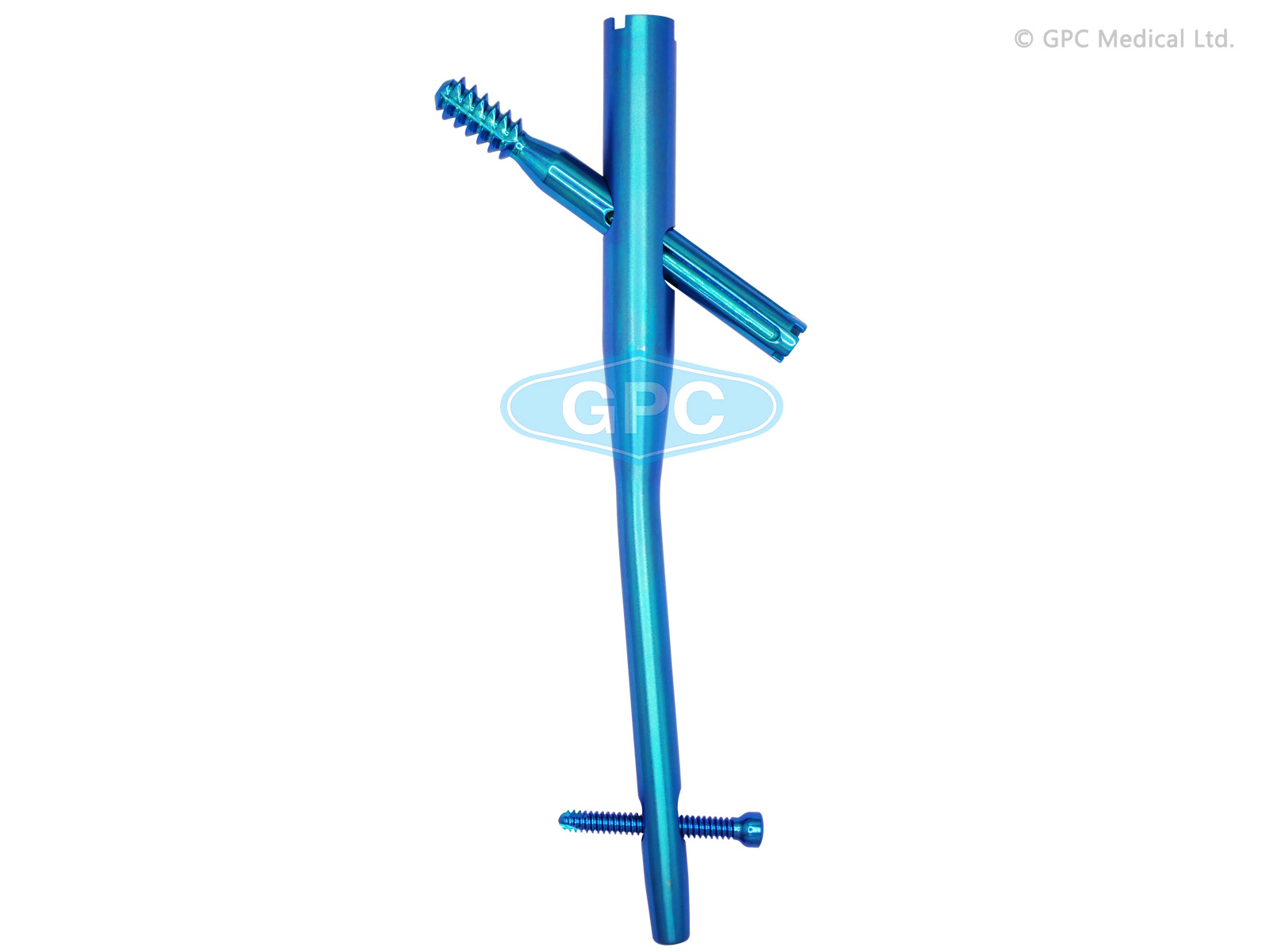

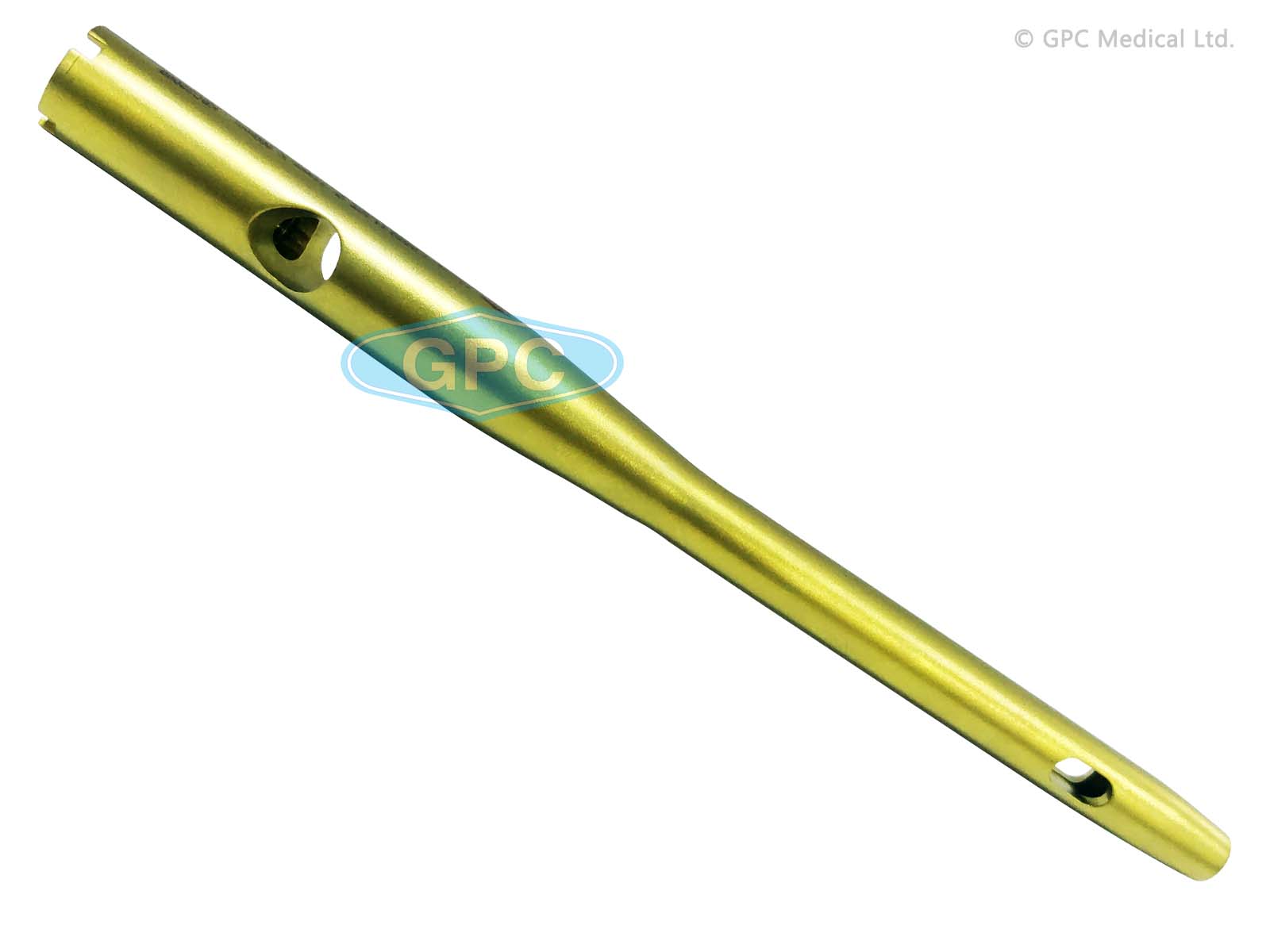

intraHEAL Proximal Hip Stabilizing Nail 3

intraHEAL Proximal Hip Stabilizing Nail 3

intraHEAL Proximal Hip Stabilizing Nail 3

intraHEAL Proximal Hip Stabilizing Nail 3

intraHEAL Proximal Hip Stabilizing Nail 3

Indications:

Intertrochanteric fractures (stable & unstable)
Nonunion and malunion
High subtrochanteric fractures
Per-subtrochanteric fractures

Specifications

Features:

The proximal diameter is 15.5 mm, to minimize the incision length required for minimally invasive surgery
Comes in three neck angles- 120, 125, 130 degrees to accommodate various anatomies
Cannulated nail for guide wired controlled insertion
The thread design of the lag screw enables superior cut out strength from the cancellous bone
Short nail has one distal locking screw & the long nail has two

Stainless Steel	Titanium.	Length
PHN3.120	PHN3.120	120Â°
		Dia. 10 mm
PHN3.120.10.18	PHN3.120.10.18T	180 mm Length
PHN3.120.10.20	PHN3.120.10.20T	200 mm Length
PHN3.120.10.22	PHN3.120.10.22T	220 mm Length
		Dia. 11 mm
PHN3.120.11.18	PHN3.120.11.18T	180 mm Length
PHN3.120.11.20	PHN3.120.11.20T	200 mm Length
PHN3.120.11.22	PHN3.120.11.22T	220 mm Length

PHN3.125	PHN3.125	125Â°
		Dia. 10 mm
PHN3.125.10.18	PHN3.125.10.18T	180 mm Length
PHN3.125.10.20	PHN3.125.10.20T	200 mm Length
PHN3.125.10.22	PHN3.125.10.22T	220 mm Length
		Dia. 11 mm
PHN3.125.11.18	PHN3.125.11.18T	180 mm Length
PHN3.125.11.20	PHN3.125.11.20T	200 mm Length
PHN3.125.11.22	PHN3.125.11.22T	220 mm Length

PHN3.130	PHN3.130	130Â°
		Dia. 10 mm
PHN3.130.10.18	PHN3.130.10.18T	180 mm Length
PHN3.130.10.20	PHN3.130.10.20T	200 mm Length
PHN3.130.10.22	PHN3.130.10.22T	220 mm Length
		Dia. 11 mm
PHN3.130.11.18	PHN3.130.11.18T	180 mm Length
PHN3.130.11.20	PHN3.130.11.20T	200 mm Length
PHN3.130.11.22	PHN3.130.11.22T	220 mm Length
