Intramedullary Nailing System

Femoral Interlocking Nails

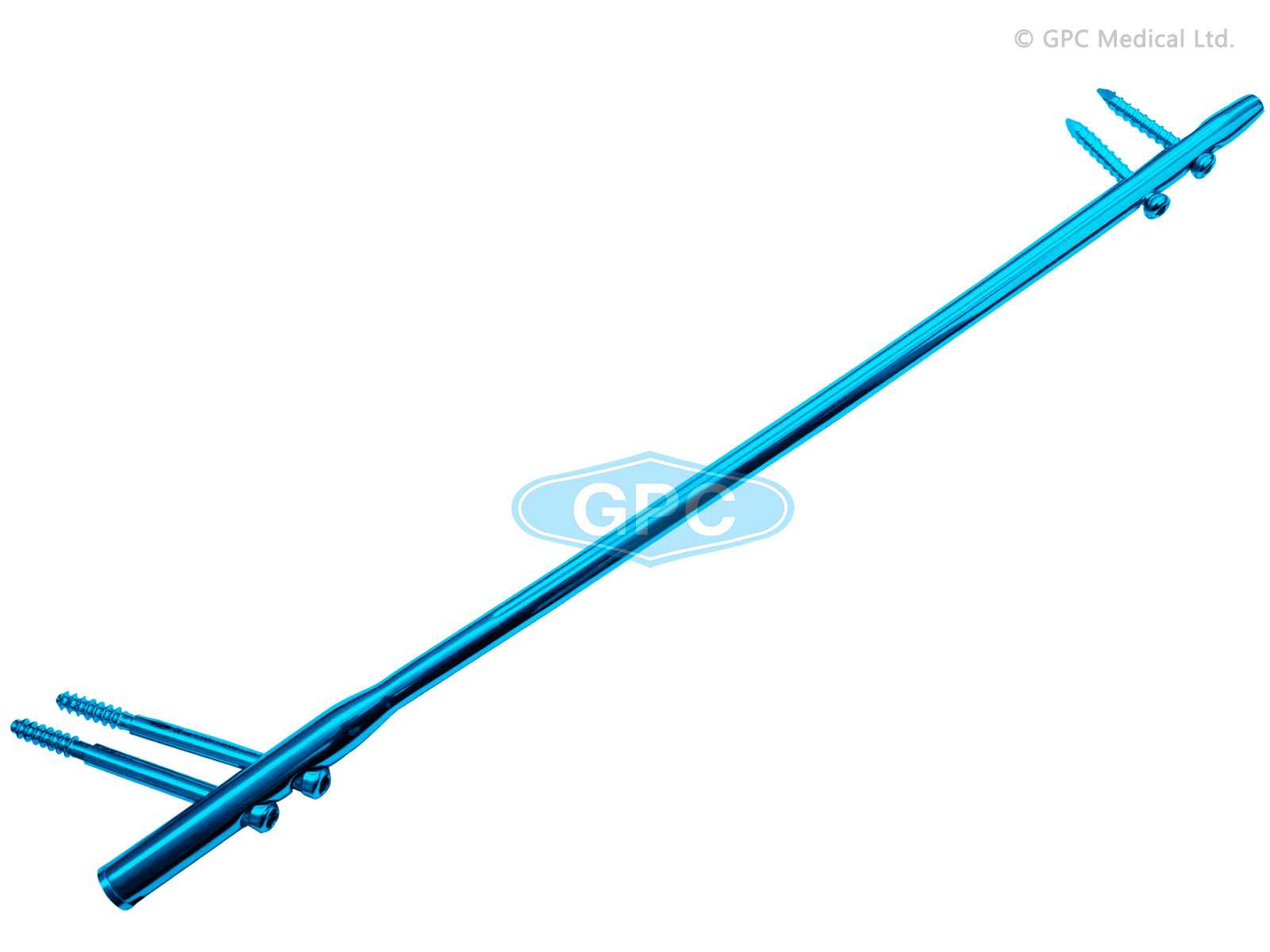

intraHEAL Proximal Femoral Nail, Long

Indications:

Low and extended subtrochanteric fractures
Ipsilateral trochanteric fractures
Combination of trochanteric and femur shaft fractures
Pathological fractures

Specifications

Features

Double neck screw nail, for increased strength
Mediolateral Angle of 6 in accordance with the entry point of the nail
Proximal screws inserted at neck shaft angle of 130 degrees
Longer nails, up to length 460 mm for femur shaft fractures
Proximal dia. 17 mm
Self-tapping 6.5 mm Cannulated screw (most proximal screw) for rotation stability
Both the proximal screws- 6.5 mm, 7.5 mm feature insertion stop
Distal dia. 9, 10, 11 & 12 mm, enable unreamed insertion
Static & dynamic distal locking options
Available in both Titanium and Stainless Steel

Length (mm)	Code for Dia. (mm) S.S., Left
Length (mm)	9	10	11	12
300	PFNL09.30L	PFNL10.30L	PFNL11.30L	PFNL12.30L
320	PFNL09.32L	PFNL10.32L	PFNL11.32L	PFNL12.32L
340	PFNL09.34L	PFNL10.34L	PFNL11.34L	PFNL12.34L
360	PFNL09.36L	PFNL10.36L	PFNL11.36L	PFNL12.36L
380	PFNL09.38L	PFNL10.38L	PFNL11.38L	PFNL12.38L
400	PFNL09.40L	PFNL10.40L	PFNL11.40L	PFNL12.40L
420	PFNL09.42L	PFNL10.42L	PFNL11.42L	PFNL12.42L
440	PFNL09.44L	PFNL10.44L	PFNL11.44L	PFNL12.44L
460	PFNL09.46L	PFNL10.46L	PFNL11.46L	PFNL12.46L

Length (mm)	Code for Dia. (mm) S.S., Right
Length (mm)	9	10	11	12
300	PFNL09.30R	PFNL10.30R	PFNL11.30R	PFNL12.30R
320	PFNL09.32R	PFNL10.32R	PFNL11.32R	PFNL12.32R
340	PFNL09.34R	PFNL10.34R	PFNL11.34R	PFNL12.34R
360	PFNL09.36R	PFNL10.36R	PFNL11.36R	PFNL12.36R
380	PFNL09.38R	PFNL10.38R	PFNL11.38R	PFNL12.38R
400	PFNL09.40R	PFNL10.40R	PFNL11.40R	PFNL12.40R
420	PFNL09.42R	PFNL10.42R	PFNL11.42R	PFNL12.42R
440	PFNL09.44R	PFNL10.44R	PFNL11.44R	PFNL12.44R
460	PFNL09.46R	PFNL10.46R	PFNL11.46R	PFNL12.46R
