Small Fragment Plating System

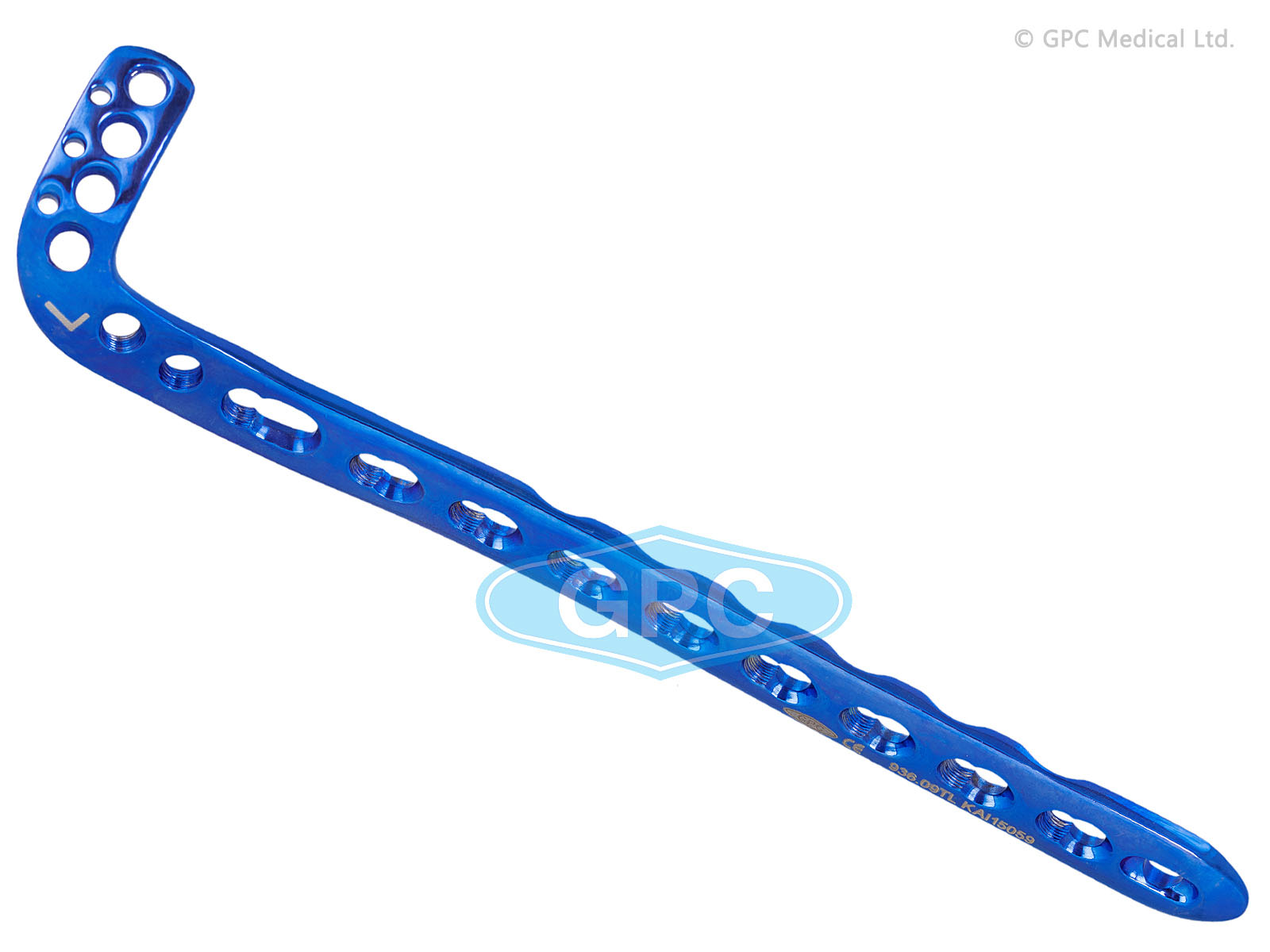

fixLOCK Anterolateral Distal Tibia Plate, 3.5 mm

Indications:

Comminuted fracture distal end tibia- periarticular & intrarticular
Osteotomy around distal tibia
Management of osteoporotic fractures
Fracture non-union distal end tibia

Specifications

Anatomically shaped- right or left (marked over the plate)
Low profile construct with minimum implant prominence or soft tissue irritation
Helical twist ensures well contoured plate for laterally placed shaft holes and anteriorly placed metaphyseal segment holes
fixLOCK screws at the curvature to ensure strength to the construct even if the screw purchase is compromised
Tapered tip for submuscular insertion with minimal soft tissue stripping
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
Available in both Titanium & Stainless steel

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code - Left	Code - Right	Code - Left	Code - Right
4	936.04L	936.04R	936.04TL	936.04TR
6	936.06L	936.06R	936.06TL	936.06TR
8	936.08L	936.08R	936.08TL	936.08TR
10	936.10L	936.10R	936.10TL	936.10TR
12	936.12L	936.12R	936.12TL	936.12TR
14	936.14L	936.14R	936.14TL	936.14TR
