fixLOCK Clavicle Hook Plate, 3.5 mm Manufacturer, Supplier & Exporter

Indications:

Anatomically precontoured right and left configured plates
Hook is placed on the posterior aspect of the clavicle with plate over the superior surface of clavicle
Low profile construct with minimum implant prominence or soft tissue irritation
Shaft holes for 3.5 mm locking or 3.5 mm cortical screws
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
Thin plate profile easy to contour
Available in both Titanium & Stainless steel

Length	Depth - 12 mm		Depth - 15 mm		Depth - 18 mm
Row	S.S.	Titanium	S.S.	Titanium	S.S.	Titanium
4 Holes, Right	923.12.04R	923.12.04TR	923.15.04R	923.15.04TR	923.18.04R	923.18.04TR
4 Holes, Left	923.12.04L	923.12.04TL	923.15.04L	923.15.04TL	923.18.04L	923.18.04TL
5 Holes, Right	923.12.05R	923.12.05TR	923.15.05R	923.15.05TR	923.18.05R	923.18.05TR
5 Holes, Left	923.12.05L	923.12.05TL	923.15.05L	923.15.05TL	923.18.05L	923.18.05TL
6 Holes, Right	923.12.06R	923.12.06TR	923.15.06R	923.15.06TR	923.18.06R	923.18.06TR
6 Holes, Left	923.12.06L	923.12.06TL	923.15.06L	923.15.06TL	923.18.06L	923.18.06TL
7 Holes, Right	923.12.07R	923.12.07TR	923.15.07R	923.15.07TR	923.18.07R	923.18.07TR
7 Holes, Left	923.12.07L	923.12.07TL	923.15.07L	923.15.07TL	923.18.07L	923.18.07TL
8 Holes, Right	923.12.08R	923.12.08TR	923.15.08R	923.15.08TR	923.18.08R	923.18.08TR
8 Holes, Left	923.12.08L	923.12.08TL	923.15.08L	923.15.08TL	923.18.08L	923.18.08TL

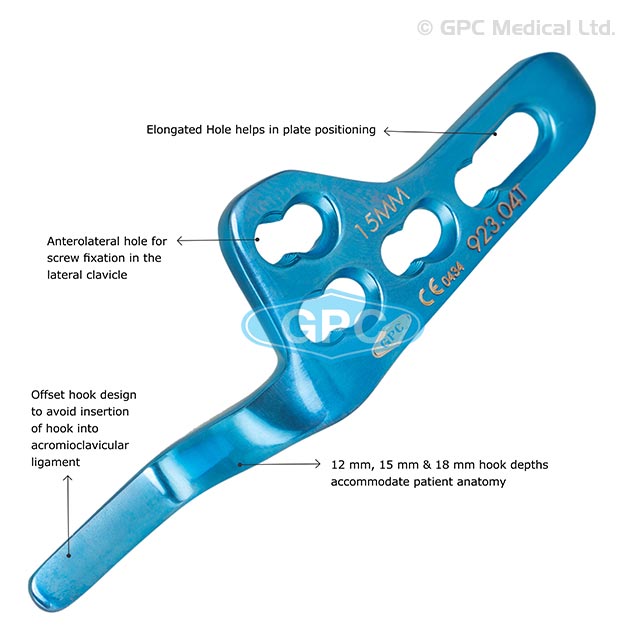

fixLOCK Clavicle Hook Plate, 3.5 mm
