Large Fragment Plating System

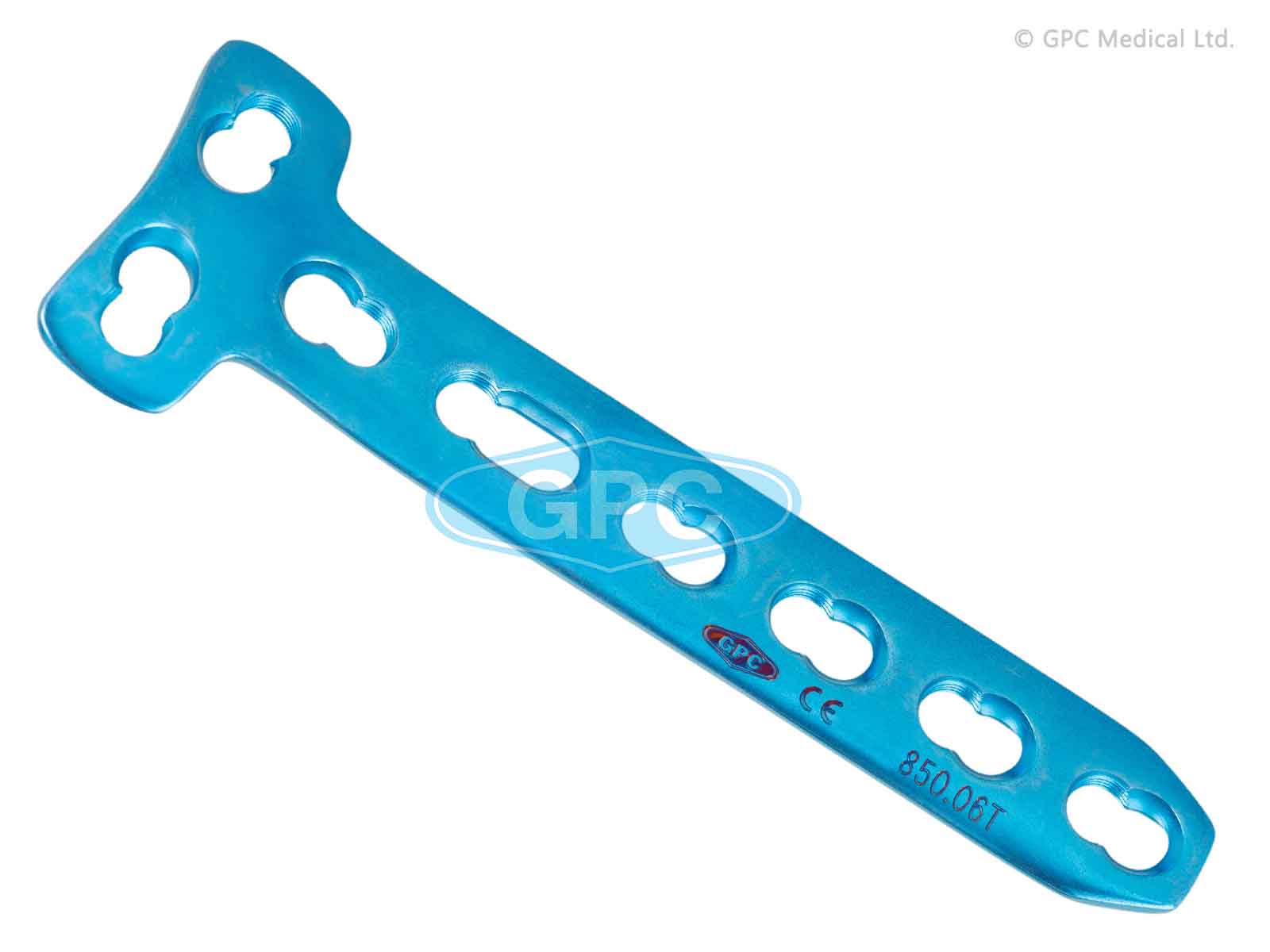

fixLOCK T-Plate, 4.5 mm

Indications:

Juxtaarticular fractures distal humerus, distal medial tibia, proximal tibia, distal femur
Posteromedial fragment fracture of proximal tibia
Ideal to buttress small fracture fragment with the diaphysis

Specifications

Limited contact locking compression plate
Low profile construct with minimum implant prominence or soft tissue irritation
Metaphyseal T-segment with two combination holes for 5.0 mm locking screws or 4.5 mm cortical screws/4.0 mm cancellous screws
Smaller area of post-fixation avascularity
Long plates useful in cases of diaphyseal extension of peri-articular fractures
Available in both Titanium & Stainless steel

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	850.04	850.04T
5	850.05	850.05T
6	850.06	850.06T
7	850.07	850.07T
8	850.08	850.08T
