Mini Fragment Plating System

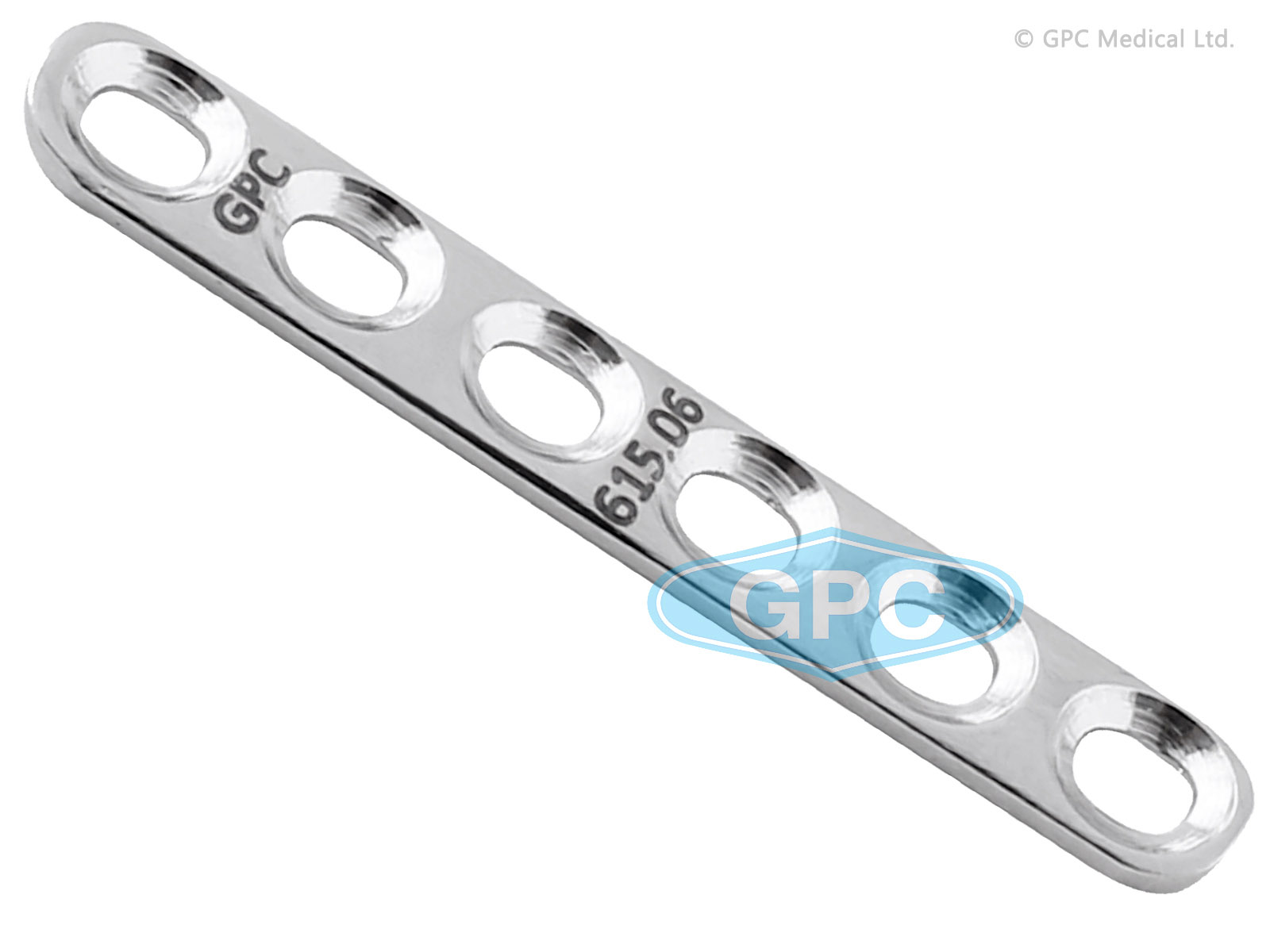

Dynamic Self Compression Plate for 2mm Screws

Indications:

Osteotomies, non-unions of hand and foot
Proximal phalanx and metacarpal fractures
Metatarsal fractures
Fusion of small bones

Specifications

Features

Low-profile plate
Minimal soft tissue irritation
Can be contoured to match bone anatomy
Provides rigid fixation
Fixed with 2.0 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1 mm
Width (W): 5 mm
Hole Spacing (HS): 6 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
4	615.04	615.04T
5	615.05	615.05T
6	615.06	615.06T
7	615.07	615.07T
8	615.08	615.08T
